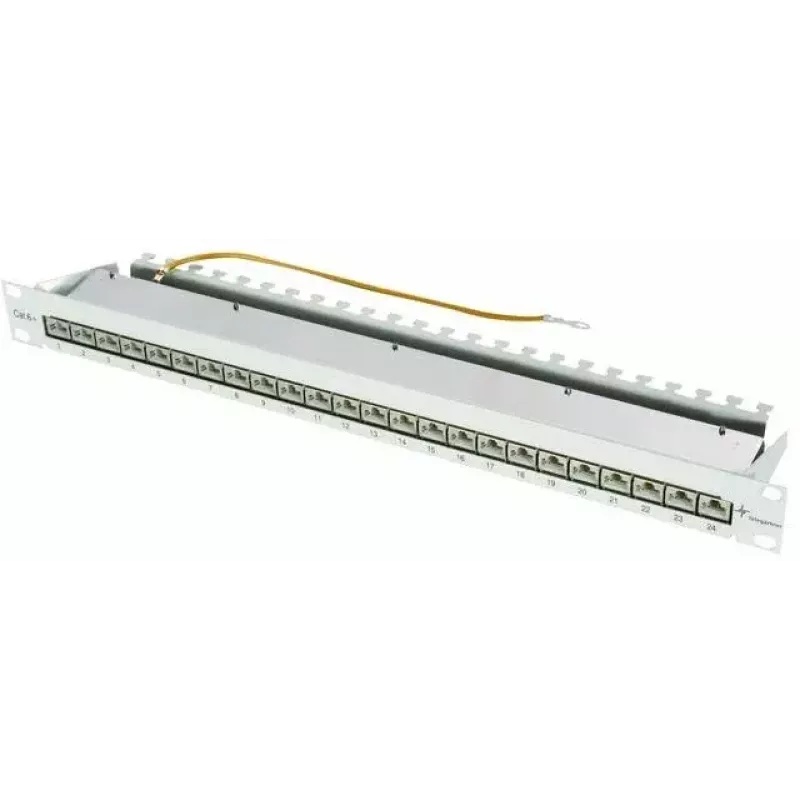

Patch Panel Telegärtner MPP24-HS K Cat.6A 1U

The Telegärtner 19-inch Patch Panel MPP24-HS K Cat.6A 1U is a rack-mountable panel designed for organized termination of network cables. It is available with 12, 16 or 24 RJ45 ports assembled on a single printed circuit board, supports Cat.6A performance and fits standard 19-inch racks with a 1 HU height. The housing is steel with a light grey (RAL 7035) powder coating, and the cover is stainless steel. The PCB is mounted horizontally and the panel dimensions are 482.6 mm (W) x 44 mm (H) x 110 mm (D).

Advantages

The shielded version provides 360-degree shielding connection directly on the PCB using screw clamps without the need to twist the braid, while grounding is achieved with the supplied earth connection cable. Termination uses IDC (LSA Plus) terminals with colour coding according to EIA/TIA 568 A and B, enabling consistent and reliable connections. Modular jacks are clearly numbered on the front panel for easy identification. Cable strain relief is provided by enclosed cable ties, avoiding the need for additional screws or special tools. The design minimizes the risk of short-circuits between the shielding braid and data conductors by providing sufficient spacing and limits untwisted conductor length to a maximum of 13 mm to maintain signal integrity during installation.

Suitable for

• Structured network installations in 19-inch racks
• Cat6A Ethernet deployments requiring shielded or unshielded patching
• Data centers, server rooms, and telecommunications closets
• Environments where numbered ports and easy cable management are needed

Key specifications

• Model: Telegärtner MPP24-HS K Cat.6A (MPN J02023A0050, EAN 4018359363314)
• Format: 19-inch rack mount, 1 HU (1U)
• Available port counts: 12, 16 or 24 RJ45 jacks on one PCB
• Connector termination: IDC (LSA Plus) terminals, EIA/TIA 568 A & B colour coding
• Shielding: 360° PCB contact for shielded types; grounding via included earth cable
• Materials: Steel housing (powder-coated RAL 7035), stainless steel cover
• PCB orientation: horizontal
• Dimensions: 482.6 mm x 44 mm x 110 mm

How to use

Mount the patch panel in a standard 19-inch rack occupying 1U of rack height. Terminate cables to the RJ45 jacks using the IDC (LSA Plus) terminals following the EIA/TIA 568 A or 568 B colour code. For shielded cable types, connect the cable shield to the PCB contact using the screw clamps and attach the supplied earth connection cable for grounding. Keep untwisted conductor length no longer than 13 mm when terminating to preserve transmission performance. Use the supplied cable ties to secure cables for strain relief.

Recommendations

Installers should verify the chosen wiring scheme (568A or 568B) is consistent across the installation, maintain the maximum untwisted conductor length of 13 mm, and ensure proper grounding for shielded installations to achieve optimal Cat.6A performance.
