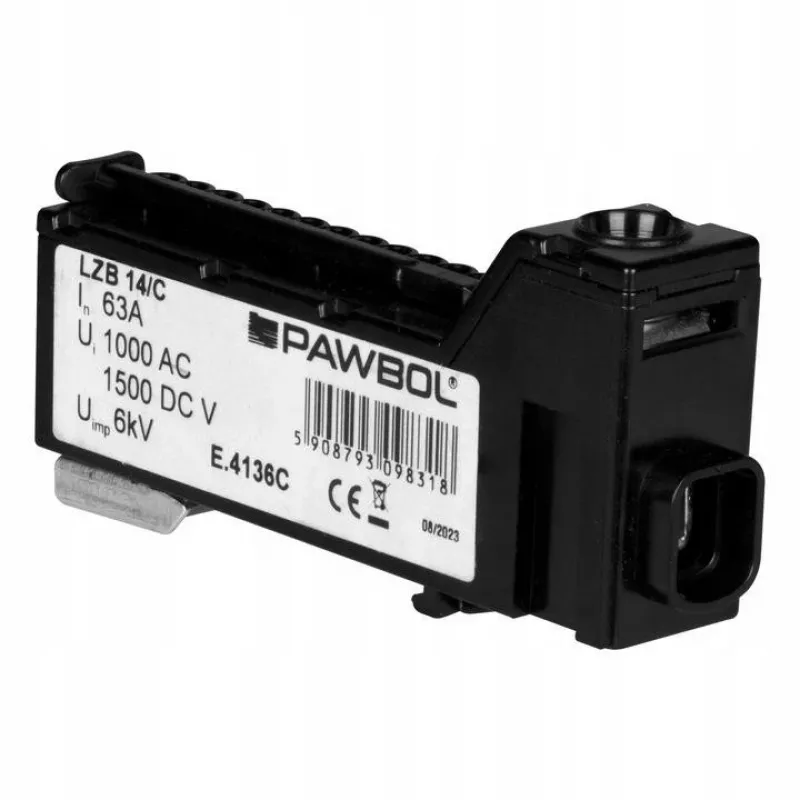

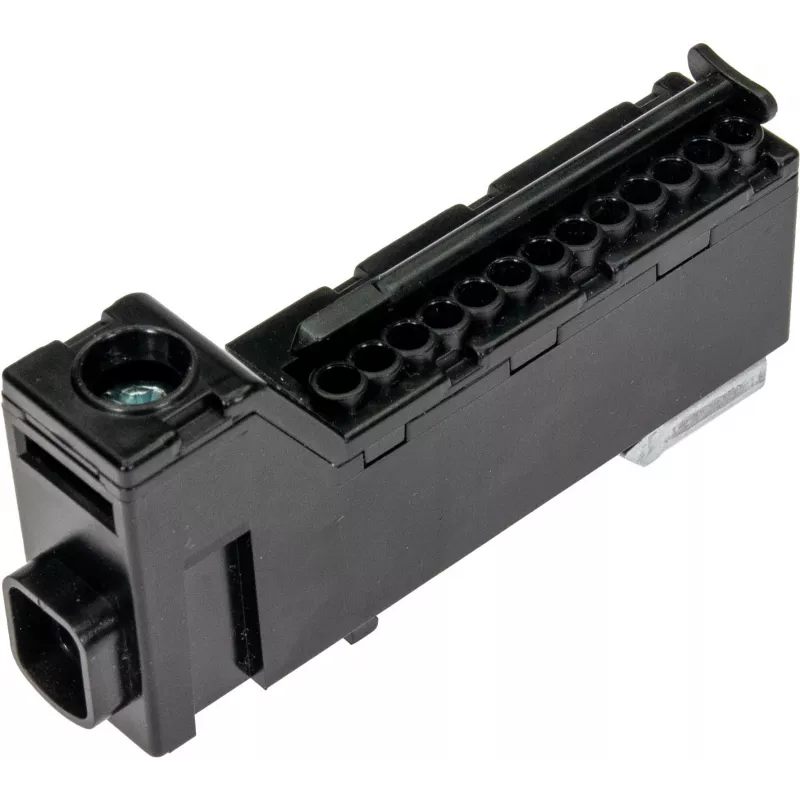

PAWBOL E.4136C morsetto modulare senza vite LZB, 6 poli, 2,5 mm², 450 V, 24 A, nero

The PAWBOL E.4136C screwless terminal strip delivers a fast, tool-free wiring experience for both professional electricians and DIY enthusiasts. When you need to make secure, vibration-resistant connections in junction boxes or control cabinets, this six-pole strip lets you simply push in solid or stranded wires up to 2.5 mm² and get on with the job. Its compact, free-hanging design makes it ideal for use where space is tight and reliability is non-negotiable.

Key specifications

• Number of poles: 6
• Nominal cross-section: 2.5 mm²
• Wire cross-section range (solid/stranded): 0.5 – 2.5 mm²
• Rated voltage: 450 V
• Rated current: 24 A
• Connection type: Spring clamp (push-in)
• Housing material: Polyamide (PA)
• Colour: Black
• Mounting type: Free-hanging
• Operating temperature: -25°C to +85°C
• Wire stripping length: 9–11 mm
• Standards: CE, RoHS compliant

Why choose it

Screwless terminals save you valuable time on every installation. There is no need to tighten screws or worry about over-torquing; the spring clamp provides a consistent, gas-tight connection that stays secure even under vibration. The robust polyamide housing protects against mechanical damage and provides excellent electrical insulation. With a clear wiring layout, you can easily trace connections and make quick modifications when required.

Ideal use cases

• Lighting circuits and luminaire connections
• Junction boxes and distribution boards
• Control panels and industrial automation
• Appliance and equipment wiring
• DIY projects and home electrical work

Good to know

For best results, strip the wire insulation to 9–11 mm before inserting the conductor. Use the terminal strip for solid or stranded conductors within the specified cross-section range. The free-hanging design allows flexible placement, while the CE and RoHS certifications guarantee compliance with European safety and environmental standards. Do not exceed the rated voltage or current to ensure safe, long-term operation.
