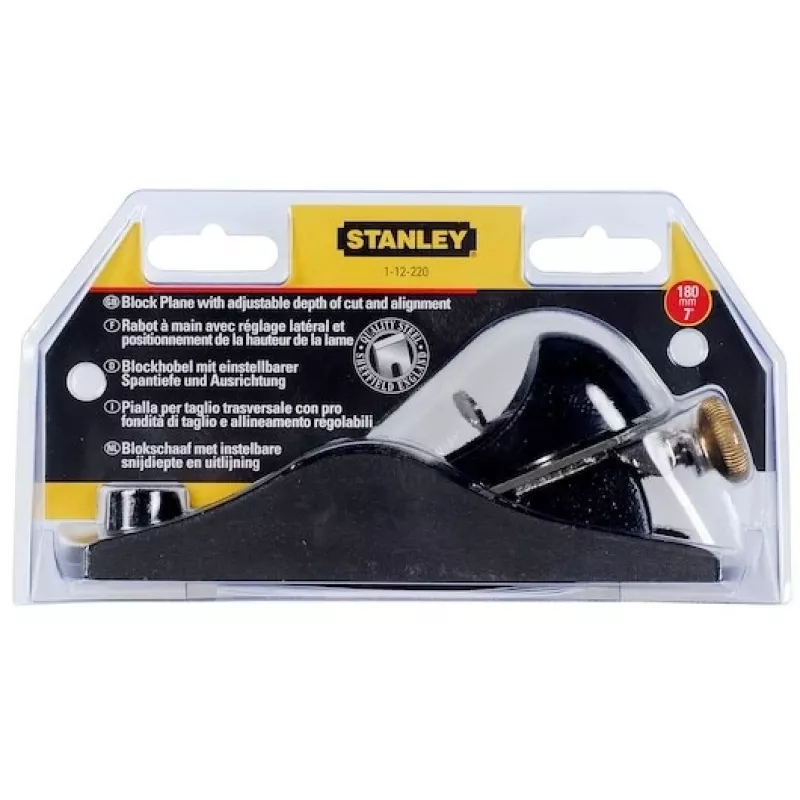

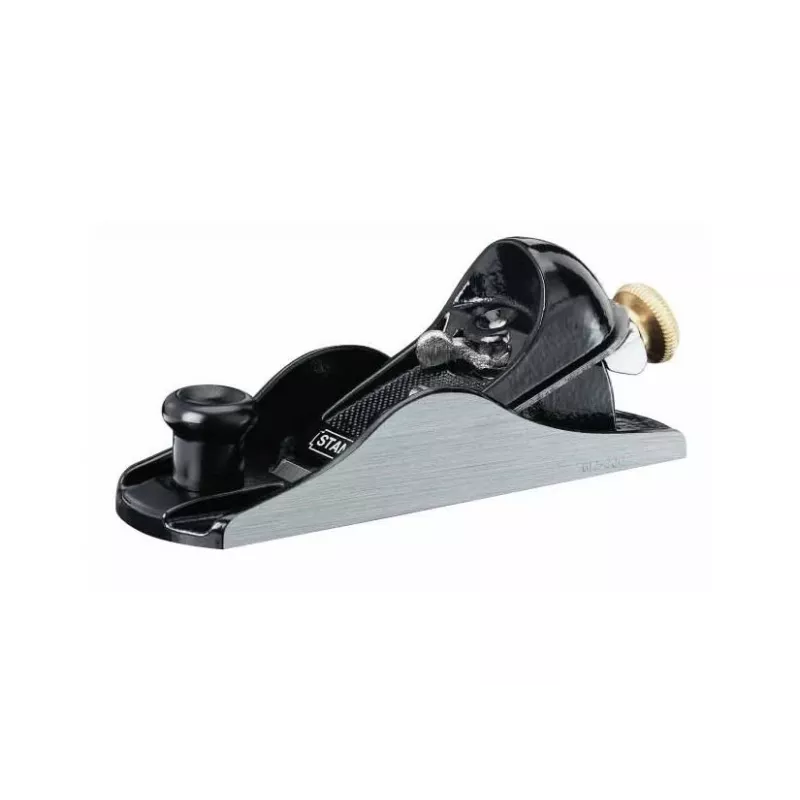

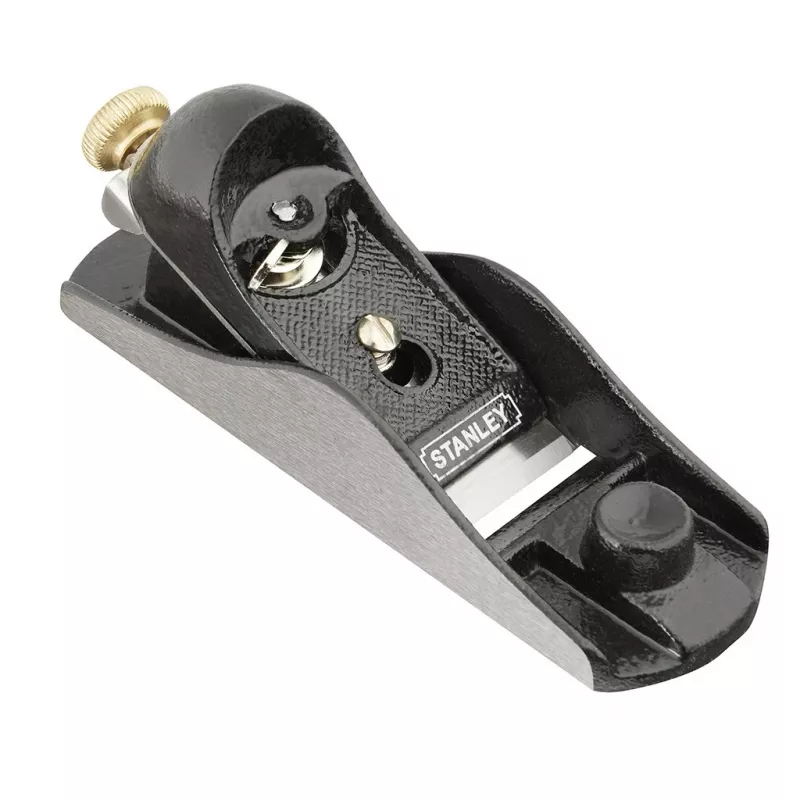

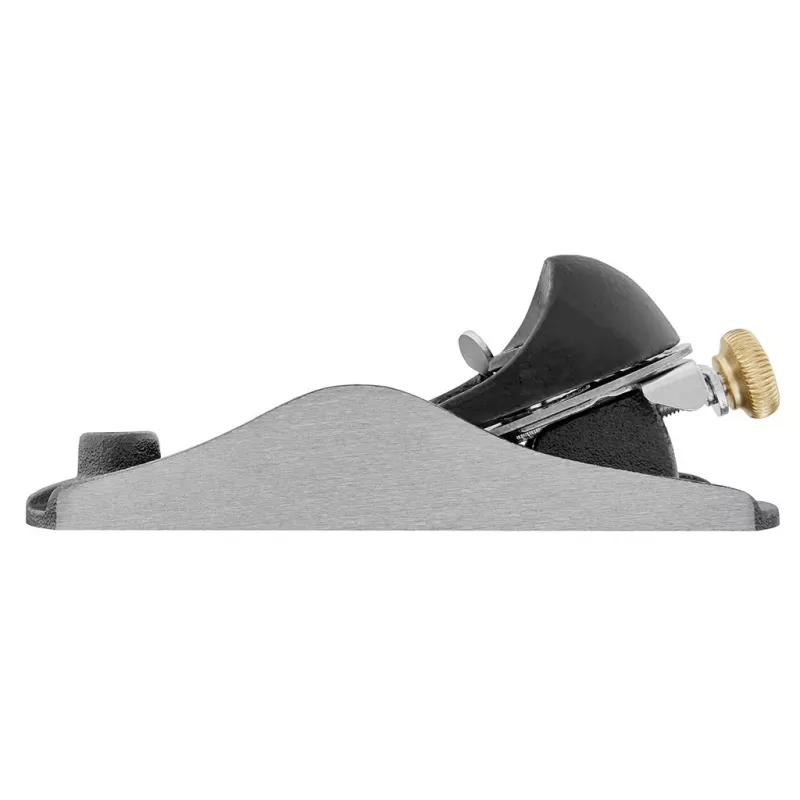

Pialla a blocchetto Stanley regolabile 1-12-220

The Stanley Adjustable Block Plane 1-12-220 is a compact hand plane designed for precision woodworking tasks such as smoothing edges, chamfering, and finishing small surfaces. It combines an adjustable blade, durable construction and a rectified sole for consistent results in professional and hobbyist use.

Advantages

The plane has a 40 mm blade width and allows rapid adjustment of iron depth and alignment for fine tuning. It features a 21° iron bevel, a die-cast stopping block and rectified cheeks for stability. The body has a black lacquered finish and includes a distortion lever for precise settings, making it a small professional fine grey iron suitable for detailed work.

Suitable for

• Smoothing and truing edges of boards and panels
• Trimming doors, windows and joinery components
• Fine finishing, chamfering and small-scale planing tasks
• Professional woodworking and DIY projects requiring precise cuts

Key specifications

• Brand: STANLEY
• Model / MPN: 1-12-220
• EAN: 3253561122200
• Blade width: 40 mm
• Iron bevel angle (gradient): 21°
• Adjustable iron depth and alignment
• Finish: black lacquered
• Die-cast stopping block; rectified cheeks

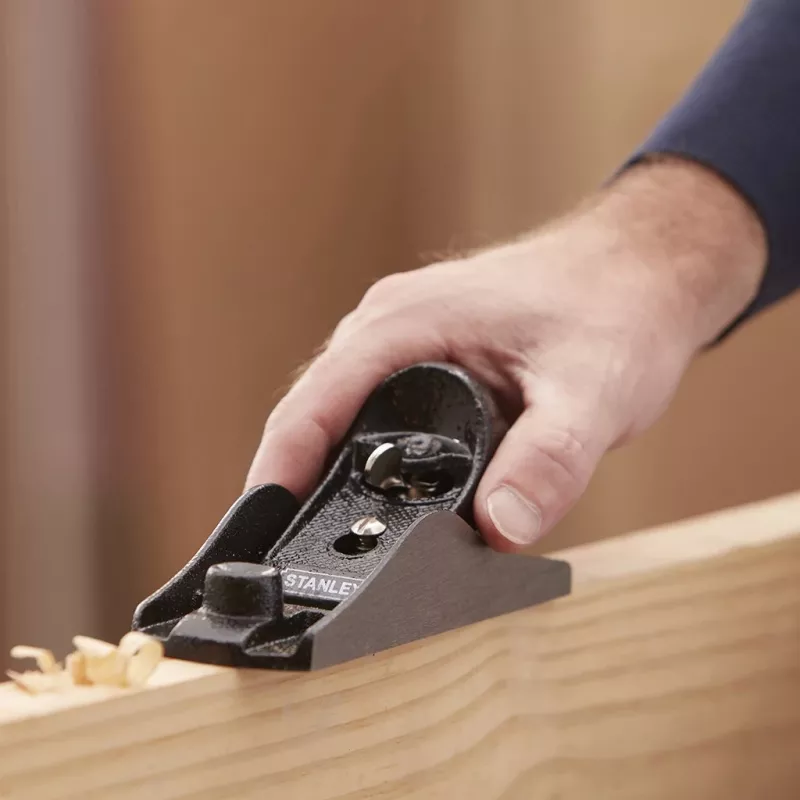

How to use

Set the blade depth and lateral alignment using the adjustment mechanism and the distortion lever until the desired shaving thickness is achieved. Hold the block plane with one hand on the body and the other guiding the heel or toe as needed, then push the plane along the wood grain with steady, even strokes. For best results, make multiple light passes rather than removing large amounts of material at once.

Recommendations

Keep the blade sharp and check alignment before use. Use light, controlled passes and work with the grain. Apply a thin coat of oil to the sole occasionally to reduce friction and store the tool dry to prevent corrosion.
