Piastra di copertura WAGO 2016-7192 per morsetti - arancione - 1 mm - 69 mm - 38 mm - 2,42 g

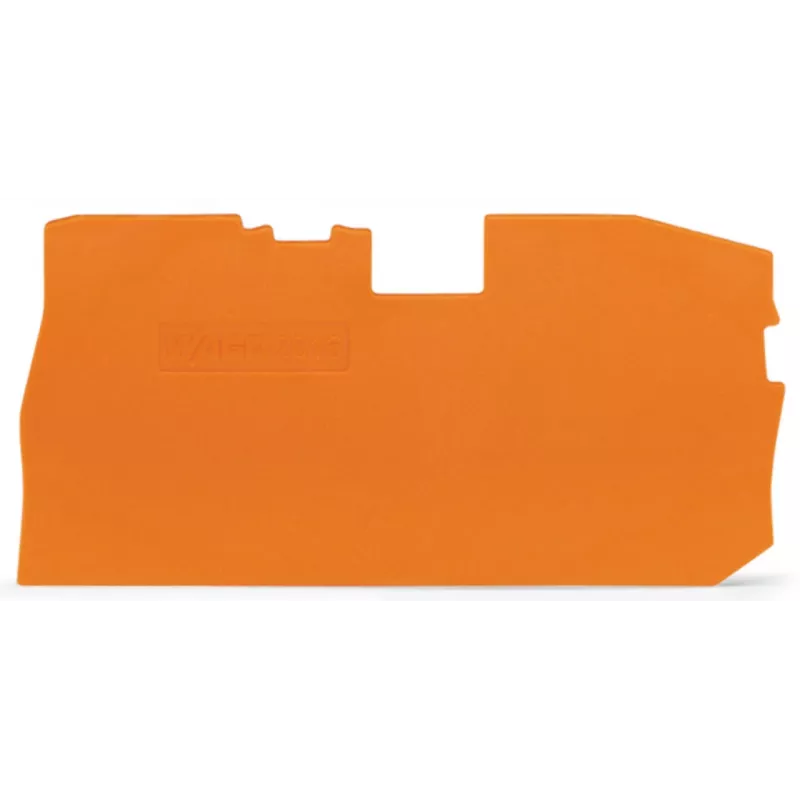

The WAGO 2016-7192 is a high-quality cover plate designed for use with WAGO TOPJOB® S terminal blocks. This orange cover plate provides protection and group marking for unused terminal block positions, ensuring safety and organization in electrical installations. Manufactured from durable Polyamide 66 (PA 66) with a flammability rating of UL 94 V-0, it offers reliable performance in demanding environments.

Advantages

• Snap-on mounting for quick and easy installation
• Halogen-free and RoHS compliant for environmental safety
• Wide operating temperature range from -35 °C to +105 °C
• Lightweight design at only 2.42 g
• Orange color for easy identification

Suitable for

• Covering unused terminal block positions in WAGO TOPJOB® S systems
• Group marking and labeling of terminal blocks
• Industrial control panels and electrical enclosures
• Building automation and distribution systems

Key specifications

• Product Type: Cover Plate / Group Marker Carrier
• Series Compatibility: WAGO TOPJOB® S
• Color: Orange
• Material: Polyamide 66 (PA 66)
• Length: 69 mm
• Width: 38 mm
• Thickness: 1 mm
• Weight: 2.42 g
• Flammability Rating: UL 94 V-0
• Operating Temperature: -35 °C to +105 °C
• Storage Temperature: -35 °C to +105 °C
• RoHS Compliance: Yes
• REACH Compliance: Yes
• Halogen-free: Yes
• Fire Load: 0.04 MJ
• Country of Origin: Germany

Recommendations

For optimal performance and safety, use this cover plate exclusively with WAGO TOPJOB® S terminal blocks. Ensure proper snap-on engagement to secure the cover in place. Store in a cool, dry environment within the specified temperature range.
