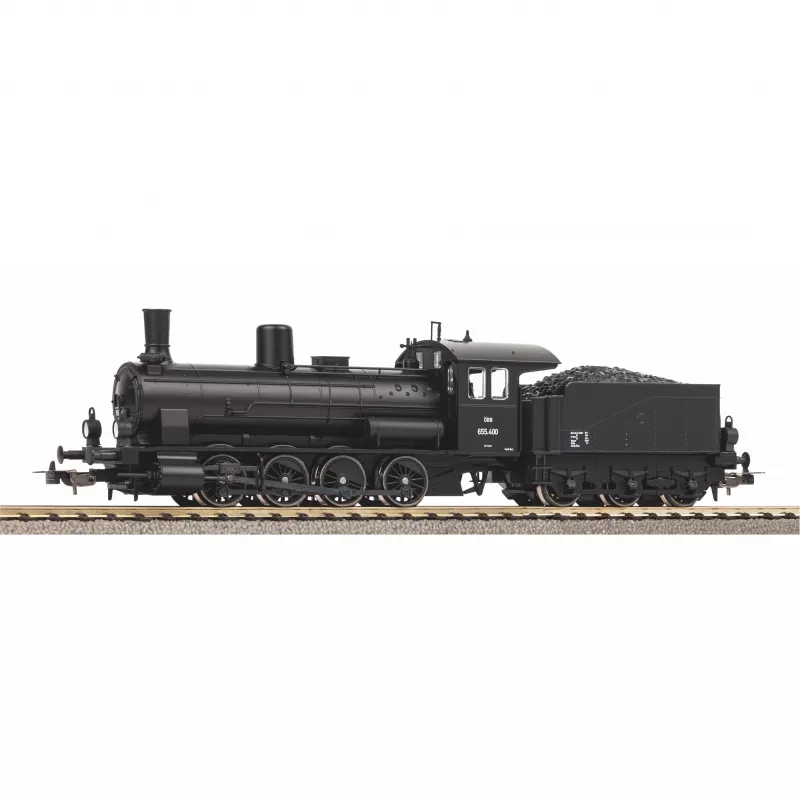

PIKO H0 57565 locomotiva a vapore G7.1 delle ÖBB

Model railway enthusiasts building an Austrian Federal Railways (ÖBB) layout in H0 scale will appreciate this detailed steam locomotive. The G7.1 class, originally Prussian, is faithfully reproduced with era-appropriate markings for Epoche IV.

Key specifications

• Scale: H0 (1:87)
• Gauge: 16.5 mm (Standard H0)
• Power system: DC (Direct Current, 2-rail)
• Railway company: ÖBB (Austrian Federal Railways)
• Locomotive class: G7.1 (ex-Prussian G7.1 / DRG BR 55)
• Era: Epoche IV (1965-1990)
• Road number: 475.010
• Length over buffers: 170 mm
• Minimum radius: 358 mm
• Digital interface: NEM 652 (8-pin)
• Lighting: Directional white/white LED
• Traction tires: Yes (2)
• Coupling: NEM shaft with close coupling kinematics
• Flywheel: Yes
• Sound module: Not included (sound can be retrofitted)
• Material: High-quality plastic with metal chassis
• Special features: Detailed boiler, fine spoked wheels, separate handrails

Why choose it

This model combines a high level of detail with reliable running characteristics, making it suitable for both collectors and operators. The NEM 652 interface allows easy digital conversion, and the close coupling mechanism ensures realistic train spacing.

Ideal use cases

• Adding a steam locomotive to an ÖBB-themed H0 layout
• Upgrading a DC layout with a detailed and smooth-running model
• Collecting models of Prussian-derived locomotives in Austrian service

Good to know

The model is designed for DC operation and can be converted to DCC with a suitable decoder. It features a flywheel for smooth running and traction tires for improved pulling power.
