Pinza amperometrica digitale Habotest HT206D — True RMS, NCV, pratico tester di corrente/tensione

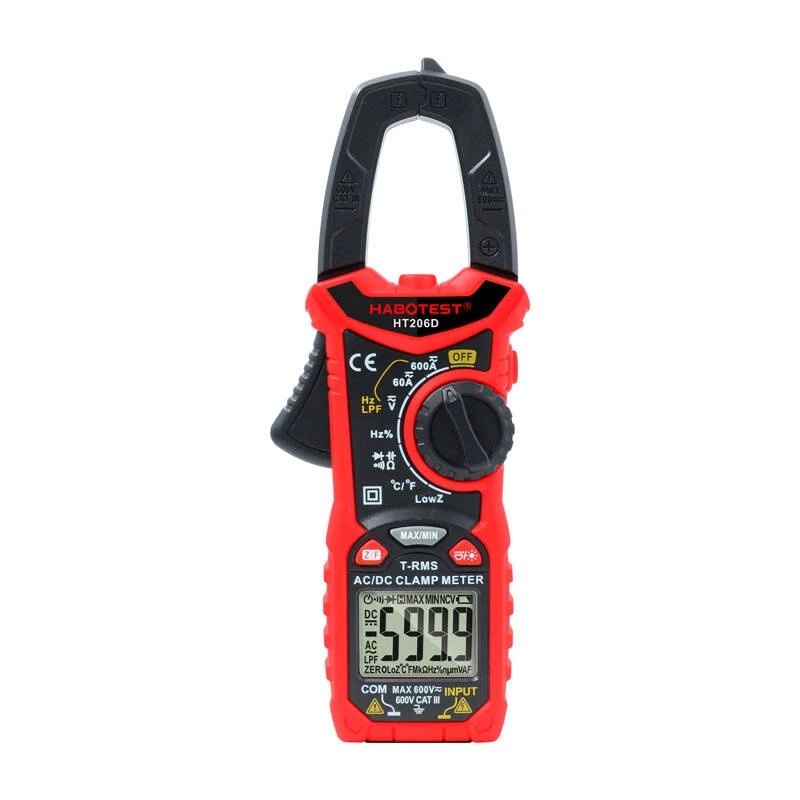

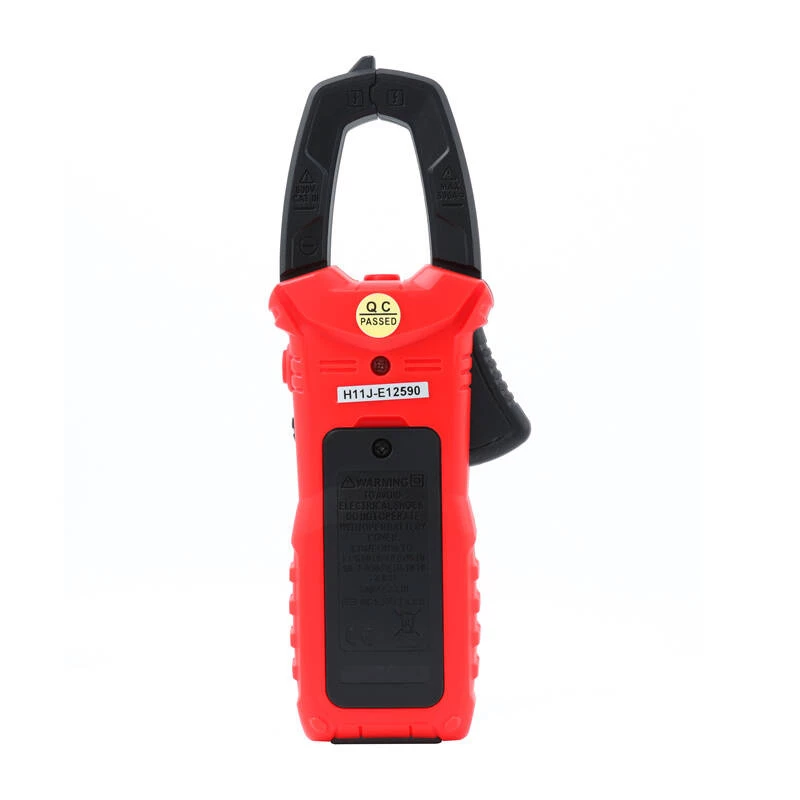

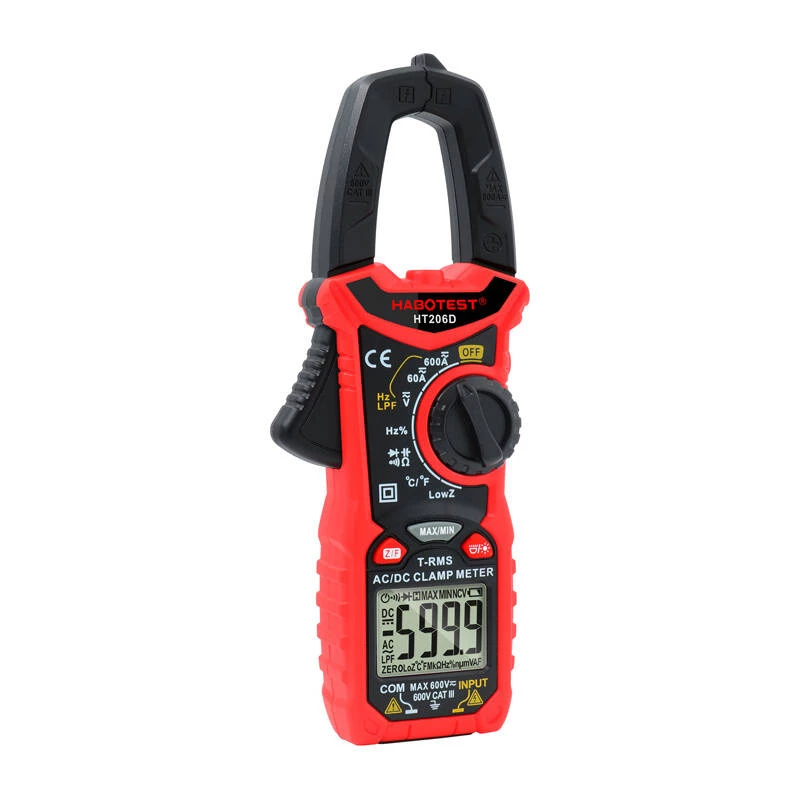

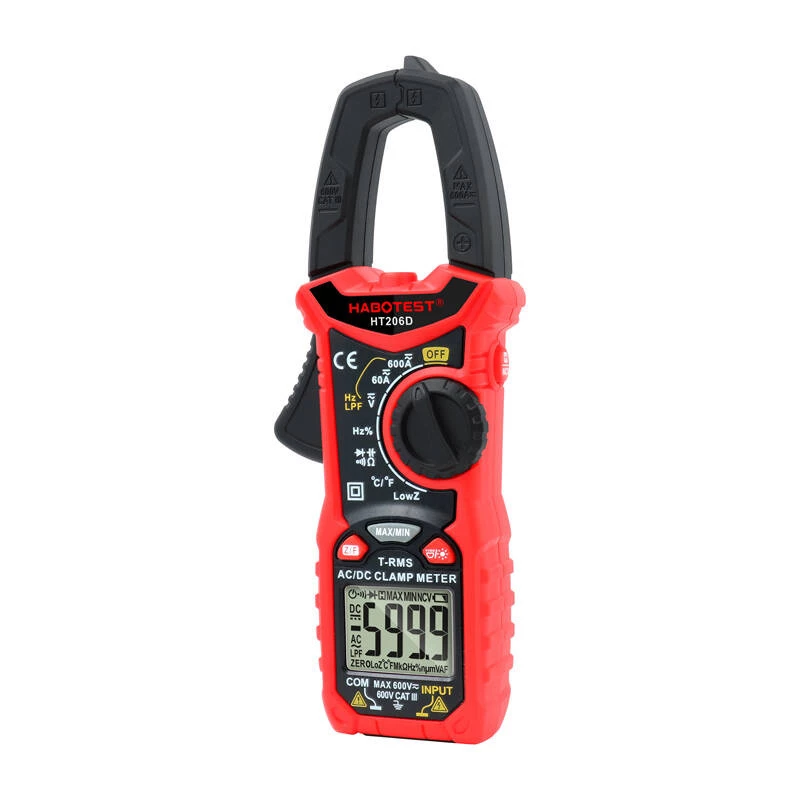

Habotest HT206D digital clamp meter designed for electrical measurements features a clear backlit LCD and jaws up to 26 mm diameter. The meter includes an integrated flashlight and NCV sensors for non-contact voltage detection, supporting a range of functions useful for electricians and technicians.

Advantages

The HT206D provides true RMS measurement, auto-ranging operation and data hold. It measures AC current up to 600 A, DC and AC voltage, resistance, capacitance, frequency, duty cycle and temperature, and has continuity and diode tests. The display backlight changes color when measured voltage exceeds 80 V or current exceeds 3 A, and the instrument offers MAX/MIN recording, low-battery indicator, auto power-off and data storage.

Key specifications

• Manufacturer: Habotest
• Model: HT206D
• Jaw size: ∅26 x 44 mm
• AC voltage range: 6 V / 60 V / 600 V ±(0.8%+5)
• DC voltage range: 600 mV / 6 V / 60 V / 600 V ±(0.5%+5)
• AC current range: 60 A / 600 A ±(2.5%+5)
• DC current range: 60 A / 600 A ±(2.5%+5)
• Resistance range: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ±(1.0%+5)
• Capacitance range: 10 nF / 100 nF / 1 µF / 10 µF / 100 µF / 1 mF / 10 mF / 100 mF ±(4.0%+3)
• Frequency range: 10 Hz – 10 MHz ±(1.0%+3)
• Duty cycle range: 1%–99% ±(3.0%+3)
• Temperature range: -40°C to 1000°C ±(1.0%+2); -40°F to 1832°F ±(1.0%+2)
• Counts: 6000
• NCV: Yes (audible and visual alarm)
• Backlight and flashlight: Yes
• True RMS: Yes
• LPF, LowZ, DCA Zero: Yes
• Power: 2x AAA 1.5 V (included)
• Dimensions: 193 x 73 x 34 mm
• Weight: approx. 260 g
• Safety: EN61010-1 -2-030; EN61010-2-033; EN61326-1 CAT III 600V

How to use

Switch the meter to the required function using the rotary control or function buttons. For current measurement open the jaws and clamp around a single conductor only. Use the probes for voltage, resistance, capacitance, frequency and temperature measurements following standard safety procedures. Enable NCV mode to detect live conductors without contact. Use MAX/MIN to record extremes and Data Hold to freeze readings on the display. The flashlight provides illumination in low-light conditions.

Recommendations

Inspect the meter and leads before use, do not exceed specified measurement ranges, and observe safety category CAT III 600 V. Replace batteries when the low-battery indicator appears and store the meter in a dry, dust-free place.
