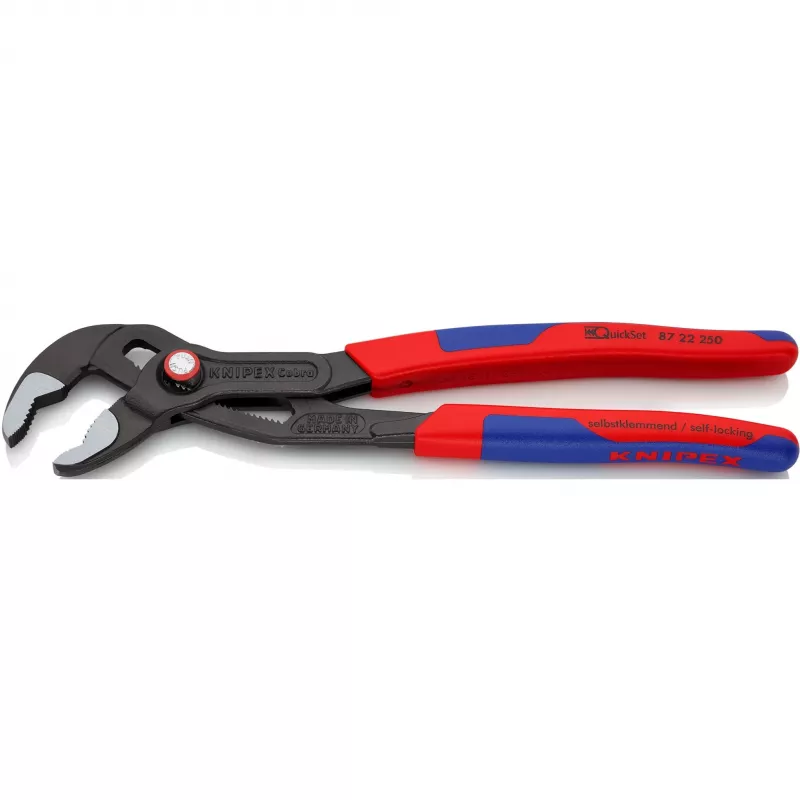

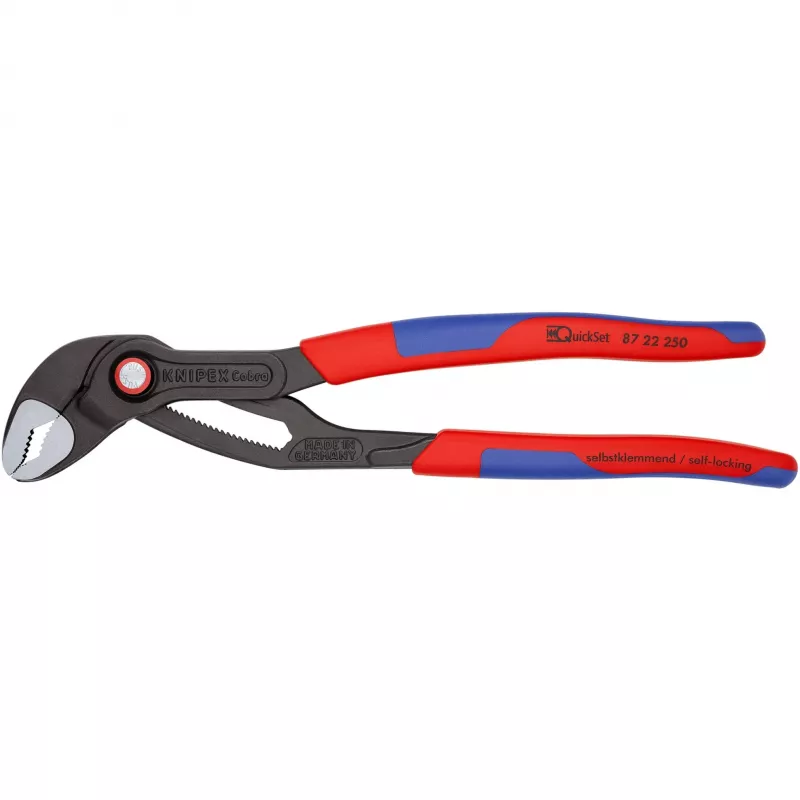

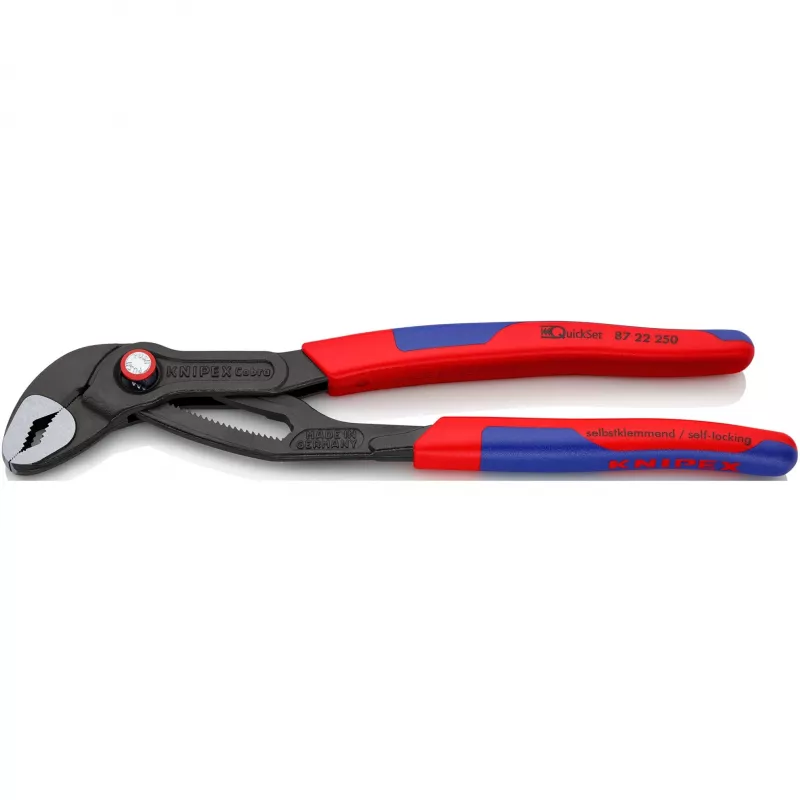

Pinza per tubi Knipex 87 22 250

The Knipex 87 22 250 tongue-and-groove pliers (Cobra QuickSet) are designed for gripping and turning pipes, fittings and fasteners up to a maximum pipe diameter of 50 mm and a nut size of 46 mm. With a length of 250 mm and a weight of 366 g, these forged chrome vanadium electric steel pliers are oil‑hardened for durability and provide confident leverage and control for professional and DIY tasks. The QuickSet feature allows an additional push-on adjustment that makes working in confined or hard-to-reach areas easier.

Advantages

The QuickSet mechanism locks the hinge bolt automatically when the first load is applied, fixing the gripping width until the release button is pressed. Adjustment on the workpiece is possible simply by sliding the pliers handle, enabling rapid re‑setting without full disassembly. The combination of proven hinge-bolt locking and the push-on function provides reliable operation in tight spaces while maintaining secure grip and repeatable settings. The tool is forged from chrome vanadium electric steel and oil‑hardened for long service life.

Suitable for

• Gripping and turning pipes and fittings with diameters up to 50 mm
• Holding and turning nuts up to 46 mm
• Work in confined or hard-to-reach spaces where quick on-piece adjustment is needed
• Plumbing, maintenance, assembly and general workshop tasks

Key specifications

• Brand: Knipex
• Model/MPN: 87 22 250
• Length: 250 mm
• Weight: 366 g
• Max pipe diameter: 50 mm
• Max nut size: 46 mm
• Material: Chrome vanadium electric steel, forged and oil-hardened
• Feature: QuickSet push-on adjustment with hinge bolt locking
• EAN: 4003773077794

How to use

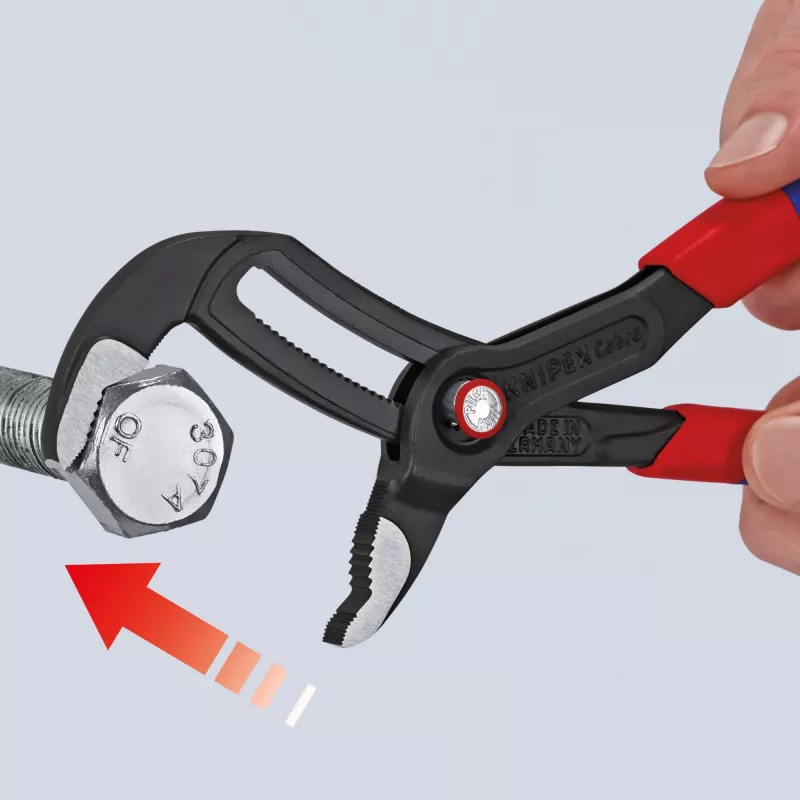

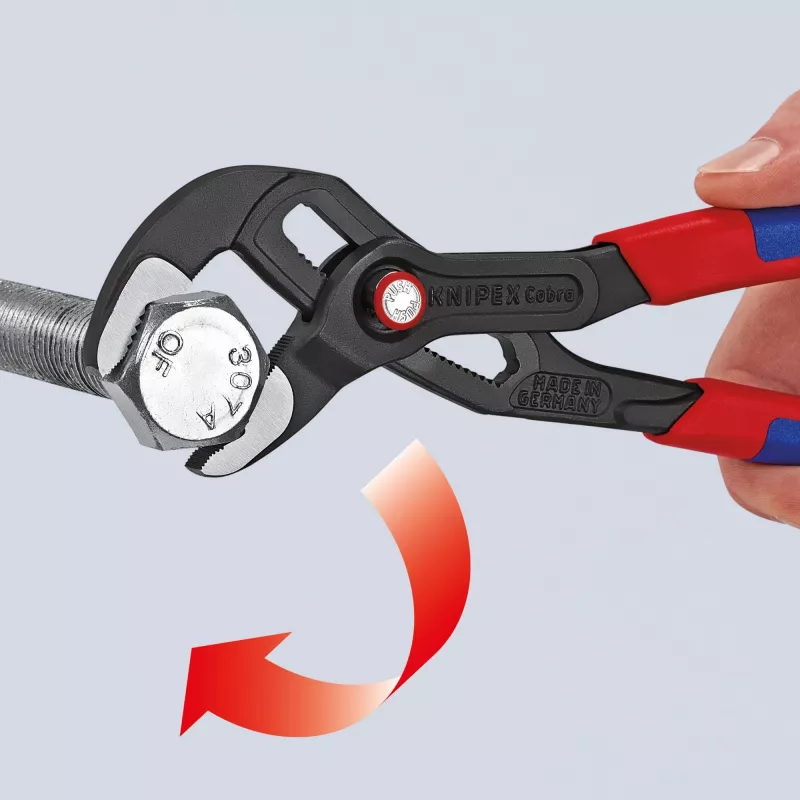

Open the pliers fully, position the jaws on the workpiece and slide the handle to the desired gripping width directly on the workpiece. Apply the first load to engage and lock the hinge bolt; the gripping width will remain fixed until you press the release button. To change the setting again, press the button to release the hinge bolt and fully open the pliers to reactivate the QuickSet sliding function.

Recommendations

Use the pliers within the specified maximum pipe diameter and nut size. Release the hinge bolt and fully open the pliers before attempting to re‑adjust the QuickSet function. Clean and lightly oil the joint periodically to maintain smooth sliding and long service life.
