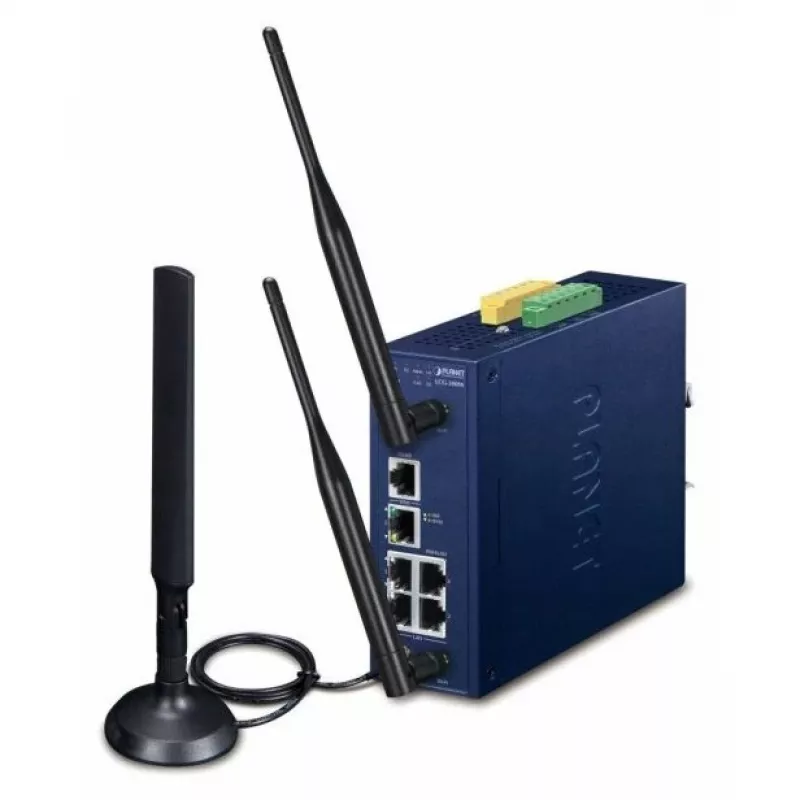

Planet Industrial gateway controller 5 porte Gigabit LoRaWAN Wi-Fi LCG300W EU (LCG300WEU)

This industrial-grade gateway integrates a 5-port Gigabit Ethernet switch, a LoRaWAN radio, and a 300 Mbps Wi-Fi access point into a single DIN-rail or wall-mount unit. Engineered for demanding IoT and M2M deployments, the LCG300W EU Controller provides reliable, secure connectivity for smart city, factory automation, and remote monitoring applications.

Advantages

Combining multiple communication technologies in one rugged enclosure reduces hardware costs and simplifies installation. The redundant DC power input ensures continuous operation even if one supply fails, while the wide operating temperature range of -20 to 70°C allows deployment in harsh environments. With support for LoRaWAN 1.0.3 Class A and Class C, the gateway can communicate with a vast ecosystem of sensors and actuators.

Suitable for

• Smart city infrastructure such as street lighting, parking, and waste management
• Industrial automation and process monitoring
• Agricultural and environmental sensing networks
• Remote asset tracking and logistics

Key specifications

• 5 x 10/100/1000BASE-T RJ45 Ethernet ports
• LoRaWAN EU868 (863-870 MHz) with 8 uplink and 1 downlink channel
• Wi-Fi 4 (802.11n) with up to 300 Mbps data rate
• ARM Cortex-A7 processor, 256 MB DDR3 RAM, 32 MB SPI flash
• Redundant DC input (9-48 V) with reverse polarity protection
• IP30 metal housing, DIN-rail and wall-mount options
• Management via Web UI, CLI, SNMP v1/v2c/v3, MQTT, and Modbus TCP
• VPN support for OpenVPN and IPsec

Recommendations

For optimal coverage, use high-gain antennas with N-type and RP-SMA connectors. Position the gateway centrally and avoid metal obstructions. Configure network security with WPA2 or WPA3 for Wi-Fi and enable VPN tunnels for remote management.
