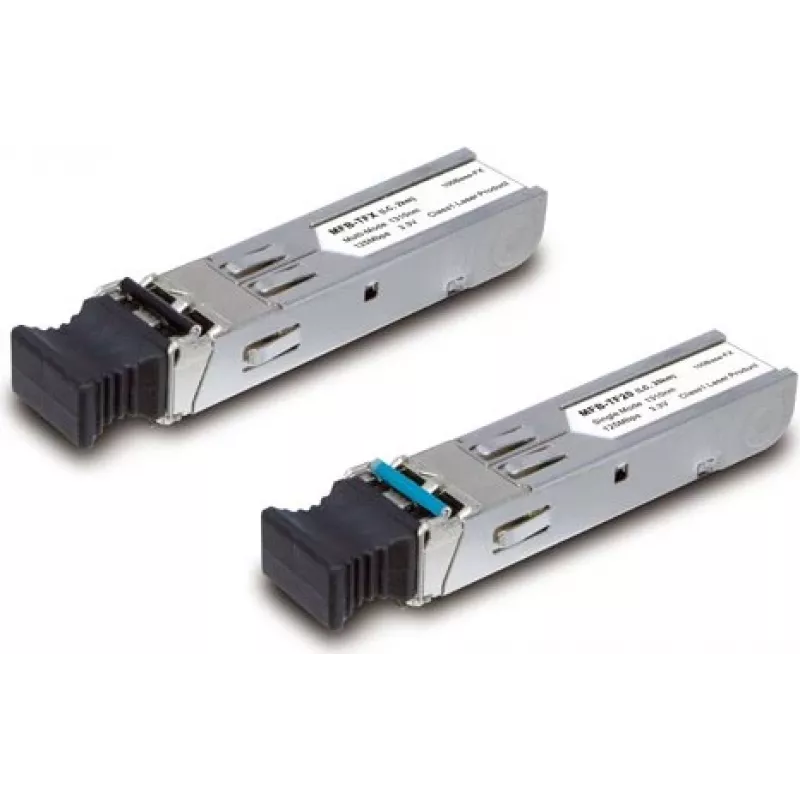

PLANET Ricetrasmettitore porta SFP 100Base-FX single-mode 1310nm (MFB-TF20)

The PLANET MFB-TF20 is a high-performance SFP (Small Form-Factor Pluggable) transceiver designed for 100Base-FX Fast Ethernet networks. It operates on single-mode fiber at a wavelength of 1310 nm, supporting data transmission distances up to 20 km. This hot-pluggable module features an LC duplex connector and includes Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Compliant with IEEE 802.3u and SFP MSA standards, it is ideal for extending network reach in enterprise, telecom, and industrial environments.

Advantages

The MFB-TF20 offers reliable long-distance connectivity with low power consumption (max 1W) and commercial-grade operating temperature range (0 to 70°C). Its hot-pluggable design allows for easy installation and replacement without network downtime. DDM support enables proactive network management by monitoring parameters such as temperature, voltage, and optical power levels.

Suitable for

• Enterprise network backbone connections
• Telecommunications infrastructure
• Industrial automation networks
• Internet Service Provider (ISP) deployments
• Data center interconnects

Key specifications

• Transceiver Type: SFP
• Data Rate: 100 Mbps
• Ethernet Standard: 100BASE-FX
• Fiber Type: Single-mode (SMF)
• Wavelength: 1310 nm
• Max Distance: 20 km
• Connector: LC Duplex
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Supply: 3.3V
• Power Consumption: Max 1W
• Operating Temperature: 0 to 70°C
• Transmit Power: -15 ~ -8 dBm
• Receive Sensitivity: -34 dBm
• Laser Type: FP (Fabry-Pérot)
• Compliance: IEEE 802.3u, SFP MSA, RoHS

Recommendations

For optimal performance, pair the MFB-TF20 with compatible PLANET switches or media converters that support SFP ports. Ensure single-mode fiber patch cables with LC connectors are used. This transceiver is a cost-effective solution for extending Fast Ethernet networks over long distances.
