PLANET Web/SNMP Man convertitore di rete nero Gigabit Ethernet SFP

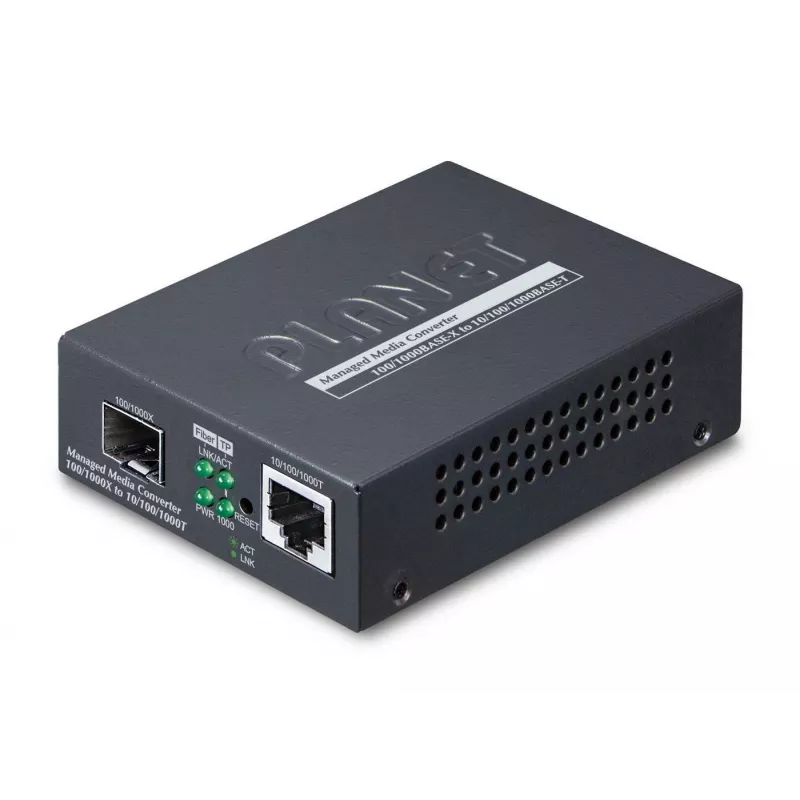

PLANET GT-915A is a remotely managed Gigabit media converter that converts between 10/100/1000BASE-T (RJ45) and 100/1000BASE-X (SFP) Ethernet. Housed in a compact metal enclosure, the GT-915A provides one Gigabit RJ-45 port and one SFP fiber slot supporting single-mode or multi-mode transceivers, and supports standard IEEE Ethernet rates of 10/100/1000 Mbps.

Advantages

The GT-915A offers both plug-and-play operation and advanced remote management via Web/SNMP, UNI-NMS and CloudViewer App. It includes link fault pass-through (LLCF/LLR), auto MDI/MDI-X, SFP digital diagnostic monitoring (DDM), and enhanced traffic control features such as VLAN, QoS, bandwidth control and protocol filtering. Built-in cybersecurity support (SSHv2, TLS 1.2, SNMPv3) helps protect management access without extra deployment cost.

Suitable for

• Extending Ethernet networks over fiber between buildings or floors
• Remote industrial or enterprise sites requiring centralized management
• Integrating copper-based devices with fiber backbone using SFP modules
• Environments needing OAM monitoring and digital SFP diagnostics

Key specifications

• Model: PLANET GT-915A (MPN: GT-915A, EAN: 4711605286817)
• Ports: 1 x 10/100/1000BASE-T (RJ-45), 1 x 100/1000BASE-X (SFP slot)
• Data rates: 10/100/1000 Mbps
• Fiber connector: SFP (supports single-mode and multi-mode SFPs)
• Management: Web GUI, SNMP, UNI-NMS, CloudViewer App
• Security: SSHv2, TLS 1.2, SNMPv3
• OAM: 802.3ah / TS-1000 OAM support
• Features: Link Fault Pass-through (LLCF/LLR), auto MDI/MDI-X, SFP-DDM
• Chassis support: compatible with PLANET MC-700, MC-1500 and MC-1500R slide-in chassis
• Color and weight: Black, 0.201 kg

How to use

Install a compatible SFP transceiver into the SFP slot and connect fiber to the transceiver. Connect the RJ-45 port to a copper Ethernet device or switch. For standalone use supply appropriate DC power, or slide the unit into a supported PLANET media converter chassis for centralized power. Access the built-in Web GUI or SNMP management station (or use UNI-NMS / CloudViewer) to configure IP address, VLANs, QoS, bandwidth limits, and other converter settings.

Recommendations

The GT-915A is recommended for deployments where remote management, link monitoring and SFP diagnostics are required; use matching SFP types for the desired fiber segment (single-mode for long reach, multi-mode for short reach) and enable SNMPv3/SSHv2/TLS 1.2 for secure management access.
