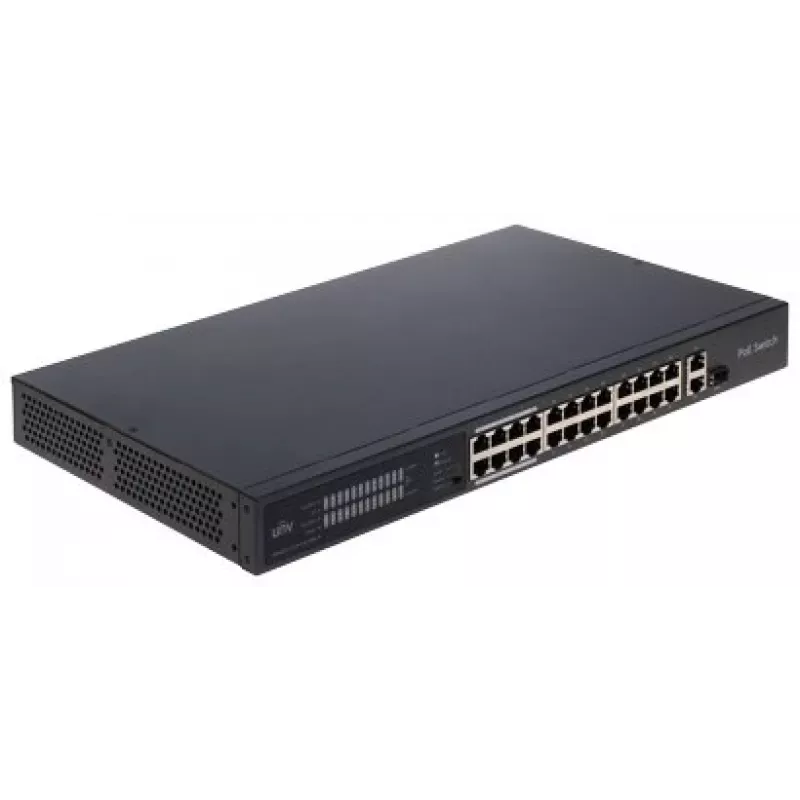

POE LANG Switch PoE 24 porte SFP Uniview

The POE LANG NSW2020-24T1GT1GC-POE-IN is a high-performance unmanaged PoE switch designed for IP surveillance and network deployments. With 24 PoE+ ports and 2 Gigabit uplink ports plus 2 SFP slots, it delivers reliable power and data over a single cable, simplifying installation and reducing costs.

Advantages

This switch provides a total PoE power budget of 370W, supporting IEEE 802.3af/at standards. It features Extend Mode for PoE transmission up to 250 meters, ideal for long-distance camera placement. The fan-cooled design ensures stable operation in rack-mount environments.

Suitable for

• IP surveillance systems with multiple PoE cameras
• Small to medium business networks
• Wireless access point deployments
• Edge network connectivity

Key specifications

• 24 PoE ports (10/100/1000 Mbps)
• 2 Gigabit RJ45 uplink ports + 2 Gigabit SFP slots
• PoE budget: 370W
• Switching capacity: 52 Gbps
• Forwarding rate: 38.688 Mpps
• MAC address table: 8K
• Jumbo frame support: 10KB
• Management: Unmanaged
• Mounting: Rack-mountable (1U)
• Power supply: Internal AC 100-240V
• Operating temperature: 0°C to 40°C
• Lightning protection: 6KV

Recommendations

For optimal performance, use CAT5e or higher cabling. The switch supports port-based VLAN, QoS, and storm control for enhanced network efficiency.
