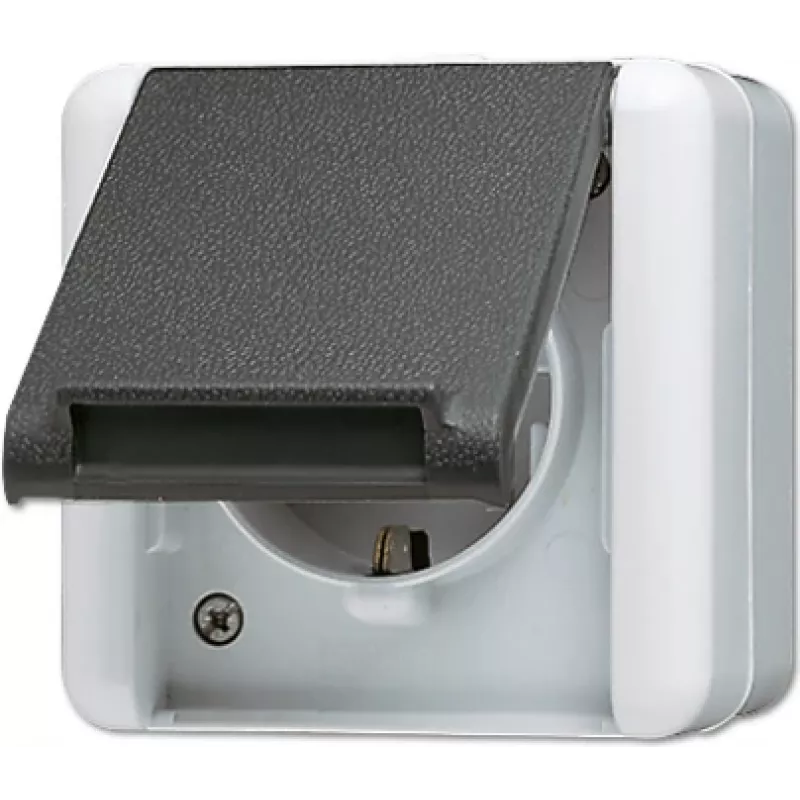

Presa da incasso Type-F JUNG 820 KIW

The JUNG 820 KIW outlet box Type F is a recessed electrical mounting box designed to house Type F (Schuko) sockets and similar devices. It provides a secure enclosure for wiring connections and supports standard installation depths used in residential and commercial walls. Constructed for durability, the box is suitable for fixed installations where stable mechanical support and protection of electrical connections are required.

Advantages

The outlet box offers robust construction that resists deformation during installation and over long-term use. Its dimensions and mounting points are compatible with common Type F devices, simplifying the fitting of sockets and cover plates. The design facilitates safe cable entry and retention of terminals, reducing strain on connections. The box is finished to integrate visually with typical interior surfaces and supports reliable grounding and earthing arrangements when used with compatible devices.

Suitable for

Key specifications

How to use

Install the outlet box by first cutting an opening in the wall to the box dimensions and securing the box into the wall cavity or mounting bracket using the provided screw points. Route supply cables through the designated cable entries, ensuring insulation is stripped to the correct length for terminal connection. Fit the Type F socket into the box, align mounting holes, and tighten fixing screws to hold the device firmly. Make the live, neutral and earth connections according to local electrical regulations and verify continuity of the protective earth. Finish by fitting the cover plate.

Recommendations

Follow applicable national and local electrical codes during installation. Use a qualified electrician for mains installations and verify that the box is suitable for the wall material and installation depth. Ensure cable entries are sealed where required to maintain fire and ingress protection levels appropriate for the location.
