Presa di collegamento RS-232 Kindermann 7444000420

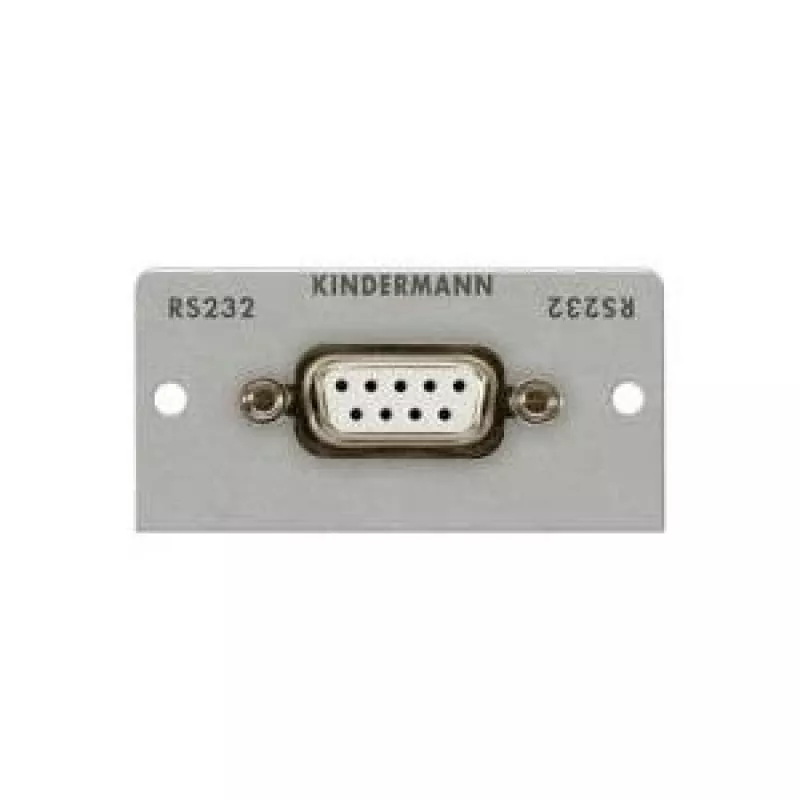

The Kindermann 7444000420 is an RS-232 socket outlet in an anodized aluminium half-size plate with a 9‑pin SubD soldering connection. It provides a compact, durable interface for serial connectivity and accepts one module in a 50 mm width housing with a minimum installation depth of 32 mm.

Advantages

The anodized aluminium construction offers mechanical strength and a corrosion-resistant surface. The 9‑pin SubD soldering connection provides a stable RS-232 interface for serial data transmission. Its half-size plate and 50 mm width allow space-efficient installation in professional AV and control environments.

Suitable for

Key specifications

How to use

Mount the half-size plate into the intended wall or panel cutout, ensuring at least 32 mm installation depth. Solder the RS-232 signal wires to the 9‑pin SubD terminals according to the serial pinout required by your system. Secure the plate and reconnect power or signal sources, then verify serial communication with the connected equipment.

Recommendations

Use appropriate ESD precautions during soldering and follow the RS-232 wiring standard for your devices. Verify clearances behind the mounting surface to accommodate the minimum depth and allow access for maintenance.
