Presa di connessione METZ CONNECT 1309190002KE bianco

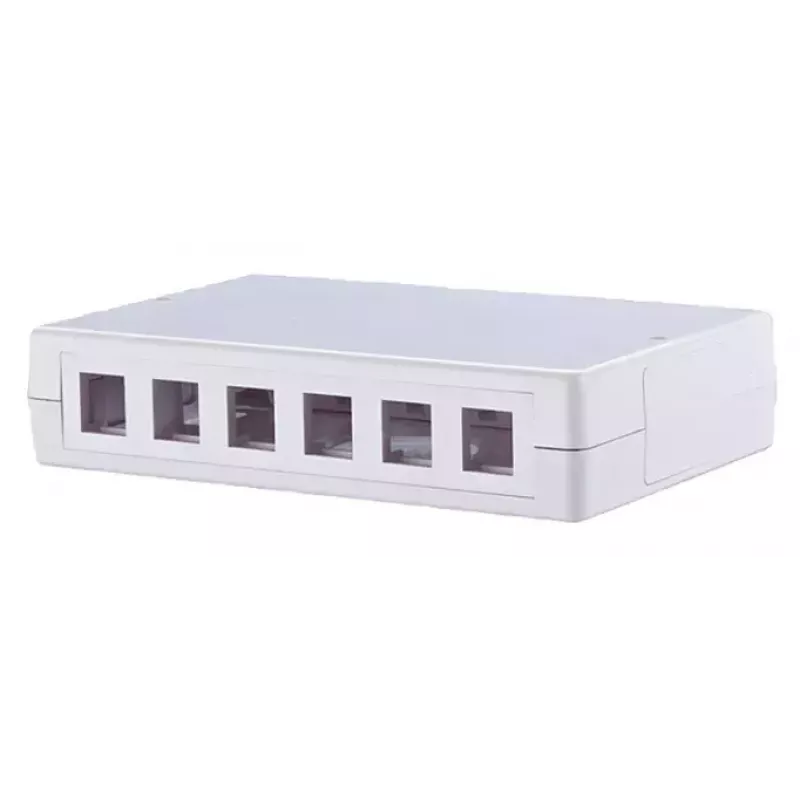

The METZ CONNECT 1309190002KE outlet box is a compact surface-mounted termination unit designed to hold six or twelve Keystone modules. It is finished in a pure white (RAL 9010) glossy color and provides downward-facing module plugs and integrated strain relief with a cable tie point at each module. The enclosure is lightweight and intended for tidy, space-saving installations of individual Keystone connectors.

Advantages

The outlet box supports either 6 or 12 individual Keystone modules and accepts shielded modules when configured for 6 positions. Its low-profile dimensions (171 mm × 111.6 mm × 38 mm) and 174 g weight make it easy to mount on walls or surfaces where a compact termination point is required. The downward 90° module orientation simplifies cable routing and the built-in strain relief helps secure cables at each module.

Suitable for

• Residential and office surface-mounted network or telecommunication terminations
• Installations requiring 6 or 12 Keystone format modules
• Situations where a compact, low-profile outlet box is needed

Key specifications

• Brand: BTR (METZ CONNECT model 1309190002KE)
• Model / MPN: 1309190002KE
• EAN: 4250184140931
• Port capacity: 6 or 12 Keystone modules (6-port version accepts shielded modules)
• Module plug direction: 90° downwards
• Material / color: pure white, glossy (similar to RAL 9010)
• Dimensions: 171 mm (W) × 111.6 mm (H) × 38 mm (D)
• Weight: 174 g

How to use

Mount the outlet box on a clean, flat surface using suitable screws or adhesive anchors (not included). Insert Keystone modules into the unit according to the chosen 6- or 12-module configuration, ensuring the module plugs face downward. Route cables to each module, secure them with the integrated strain relief and cable tie points, and attach module covers as needed. For shielded modules, use the 6-module configuration and follow the module manufacturer's instructions for grounding and shielding.

Recommendations

Use the box for tidy surface-mounted network and telephone terminations; verify module compatibility (Keystone format) before installation and follow grounding practices for shielded modules.
