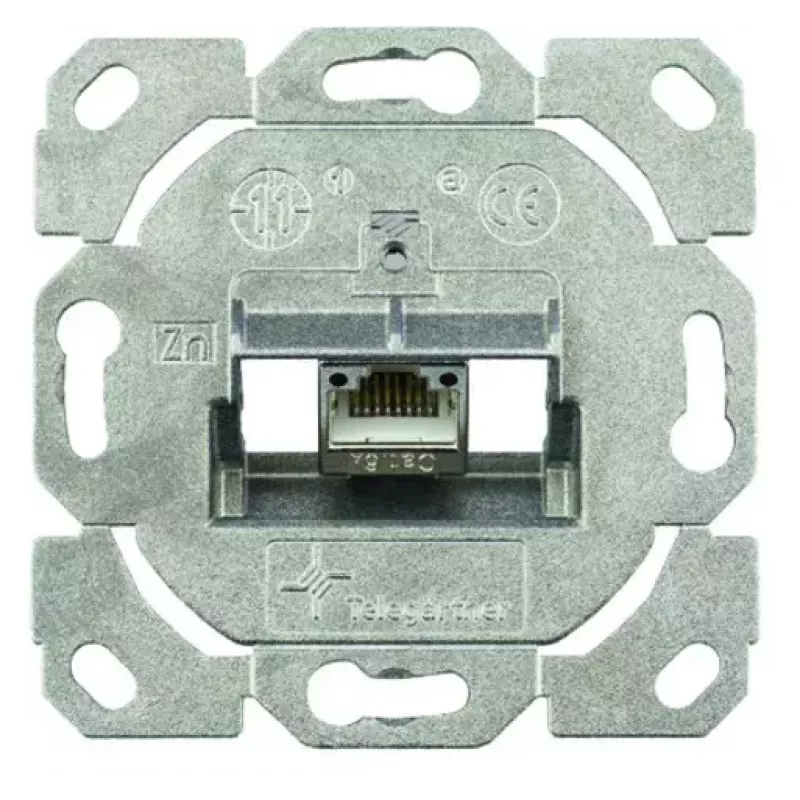

Presa RJ-45 Telegärtner J00020A0531 metallico 1 modulo categoria 6a

The Telegärtner J00020A0531 Metallic 1 module Category 6a socket-outlet is a compact RJ-45 connection point designed for structured cabling and network installations. The metallic finish and single-module format make this outlet suitable for integration into a variety of wall plates and outlet frames where Category 6a performance is required. Its visible dimensions are 41 mm wide, 28 mm deep with a visual part depth of 6.9 mm, allowing for neat, space-saving mounting in standard installation environments.

Advantages

This RJ-45 socket-outlet complies with Category 6a specifications, supporting high-speed Ethernet applications and enhanced shielding compared with lower categories. The metallic design improves mechanical robustness and contributes to electromagnetic compatibility in shielded installations. The single-module format simplifies replacement or upgrade of individual outlets without the need to modify surrounding hardware.

Suitable for

• Structured network cabling in homes, offices and commercial premises
• Shielded installations requiring Category 6a performance
• Integration into modular wall plates and outlet frames
• Upgrades of existing single-module faceplates to Category 6a

Key specifications

• Connector type: RJ-45 socket (female)
• Category: Category 6a
• Modules: 1 module (single-port)
• Finish: Metallic
• Visible dimensions: 41 mm (width) x 28 mm (depth) with 6.9 mm visual part depth
• Application: Network data cabling for high-speed Ethernet

How to use

Install the socket-outlet into a compatible single-module faceplate or mounting frame following standard low-voltage installation procedures. Terminate the incoming network cable to the RJ-45 contacts according to the chosen wiring scheme (T568A or T568B) and ensure correct shield termination if using shielded twisted pair (STP) cable. After installation, verify connectivity and performance with appropriate network testers to confirm Category 6a compliance.

Recommendations

Use this metallic Category 6a RJ-45 socket-outlet in shielded cabling environments or where improved mechanical protection is needed. Ensure proper shield and ground connections when used with STP cabling and test each port after installation to validate performance.
