Presa Speakon Kindermann 7456000413

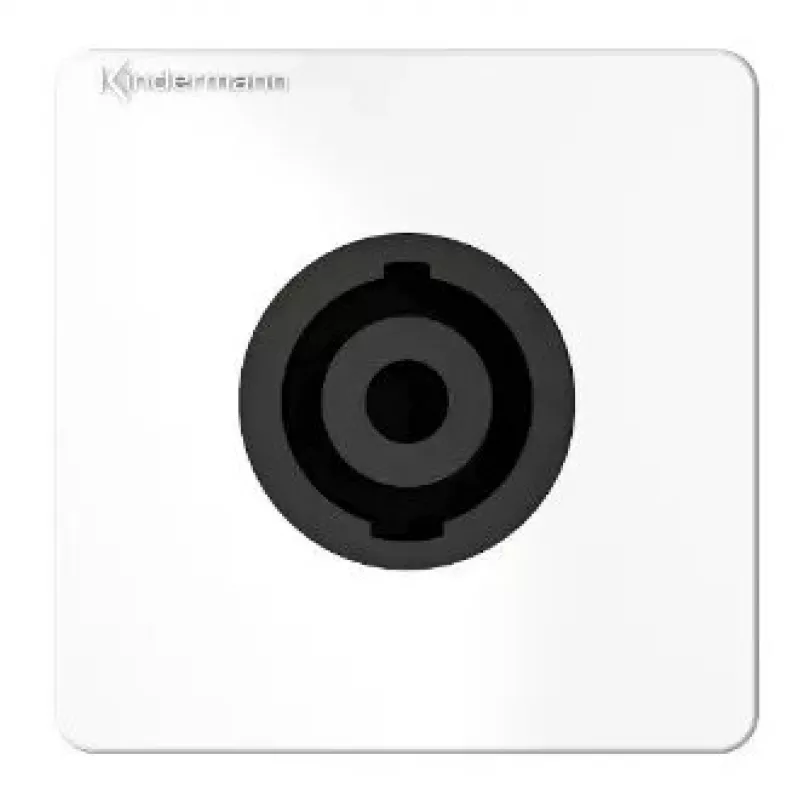

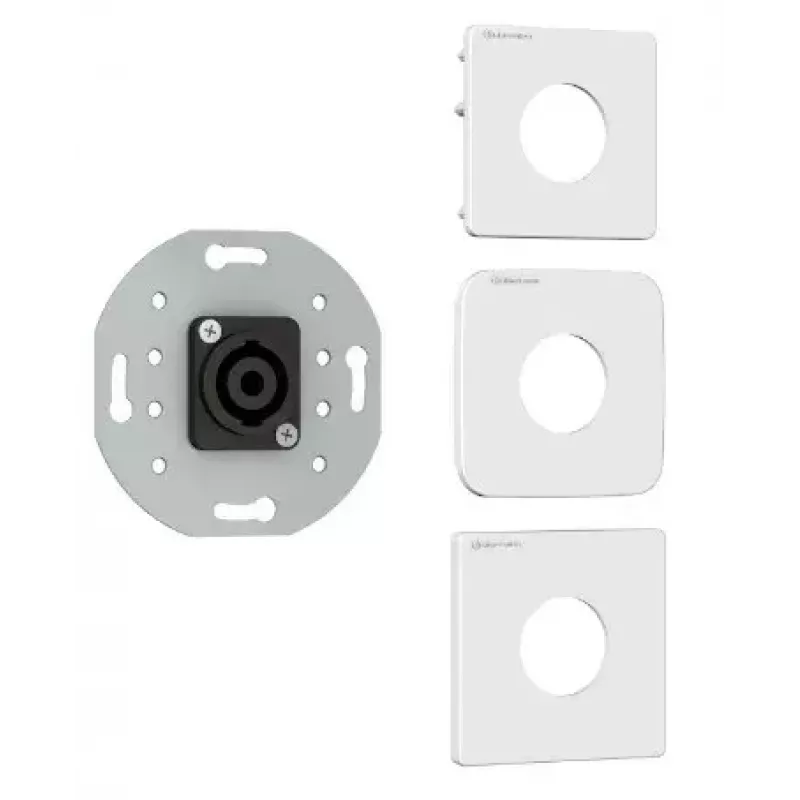

The Kindermann 7456000413 is a full-size Speakon (4-pin) socket outlet intended for professional audio applications. It features a soldering connection, a plastic-covered adapter plate delivered in sizes 50 x 50, 54 x 54 or 55 x 55 mm, and is available in RAL 9010 white or black. The product supports a single module and is rated for 40 A, with a new tool-free mounting option for faster installation.

Advantages

This Speakon socket combines a robust full-size plate with a plastic cover and a reliable soldering connection to ensure stable audio signal transmission. The included adapter plate sizes increase compatibility with different mounting cutouts. The 40 A rating suits high-current audio applications, and the new tool-free mounting simplifies installation and maintenance.

Suitable for

Key specifications

How to use

Choose the adapter plate that matches the mounting cutout (50 x 50, 54 x 54 or 55 x 55 mm) and attach it to the full-size plate. Make the audio cable connections using the soldering points provided on the Speakon 4-pin connector, observing correct wiring and polarity. Insert the assembled outlet into the panel opening and secure it using the tool-free mounting mechanism. Verify mechanical stability and test the connection with appropriate audio equipment before regular use.

Recommendations

For safe and reliable operation, use appropriate audio cables rated for the intended current, ensure solder joints are clean and mechanically secure, and perform a functional check after installation. Select the adapter plate size that provides a snug fit to avoid movement or strain on the connector.
