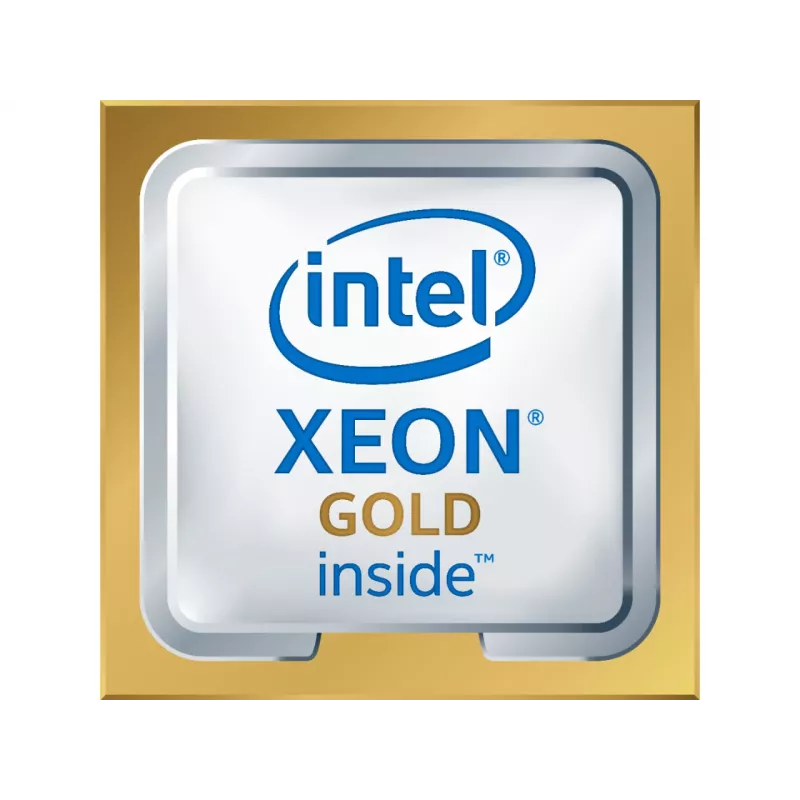

Processore Intel Xeon Gold 6254 3,1 GHz 18 core 24,75 MB LGA 3647

The Intel Xeon Gold 6254 is a server-class processor with 18 cores, a base frequency of 3.1 GHz and 24.75 MB of last-level cache. Built on Intel Cascade Lake microarchitecture for the LGA 3647 socket, this CPU supports hexa-channel DDR4 memory up to 1.02 TB, advanced SIMD and vector instruction sets including SSE4.2, AVX, AVX2 and AVX-512, and is scalable for multi-socket (up to 4S) server platforms. It is intended for demanding server and workstation workloads that require high core counts, large memory capacity and enterprise-grade platform features.

Advantages

The processor offers high parallel compute capacity with 18 physical cores and Intel Hyper-Threading support, a substantial 24.75 MB Intel Smart Cache accessible across cores, and Turbo Boost features that increase single-threaded performance up to 4.0 GHz when thermal and power headroom allow. Built-in enterprise technologies such as Intel AES-NI, Intel VT-x/VT-d with EPT, Intel RDT, Intel Run Sure and support for Intel Optane persistent memory enhance security, virtualization performance and platform reliability.

Suitable for

• Virtualization hosts and hyper-converged infrastructure
• Database servers and in-memory analytics
• High-performance compute (HPC) and multithreaded workloads
• Enterprise applications requiring large memory capacity and reliability

Key specifications

• Model: Intel Xeon Gold 6254 (Cascade Lake)
• Cores / Threads: 18 cores (with Hyper-Threading support)
• Base frequency: 3.1 GHz, Max Turbo Frequency: 4.0 GHz
• Cache: 24.75 MB Intel Smart Cache
• Socket: LGA 3647 (Socket P)
• Memory: Hexa-channel DDR4, max internal memory 1.02 TB
• Instruction sets: SSE4.2, AVX, AVX2, AVX-512, Intel AES-NI
• Platform features: Intel VT-x, VT-d with EPT, Intel RDT, Intel Run Sure, Intel Optane persistent memory support
• Lithography / Package: 14 nm; package size 76 mm x 56.5 mm

How to use

Install the processor into a compatible LGA 3647 server or workstation motherboard following the motherboard vendor’s installation instructions and using appropriate cooling and power delivery. Configure memory in hexa-channel mode with supported DDR4 modules to achieve rated memory bandwidth and populate DIMM slots according to the platform manual. Enable relevant firmware and BIOS options for virtualization (VT-x, VT-d), Turbo Boost and performance features, and install updated chipset drivers to ensure full functionality of enterprise technologies.

Recommendations

For optimal performance in virtualization and memory‑intensive workloads, use validated server platforms with adequate cooling, matched DIMM modules across channels, and up-to-date BIOS firmware; enable Intel VT-x/VT-d with EPT and consider Intel Optane persistent memory when large, persistent memory capacity is required.
