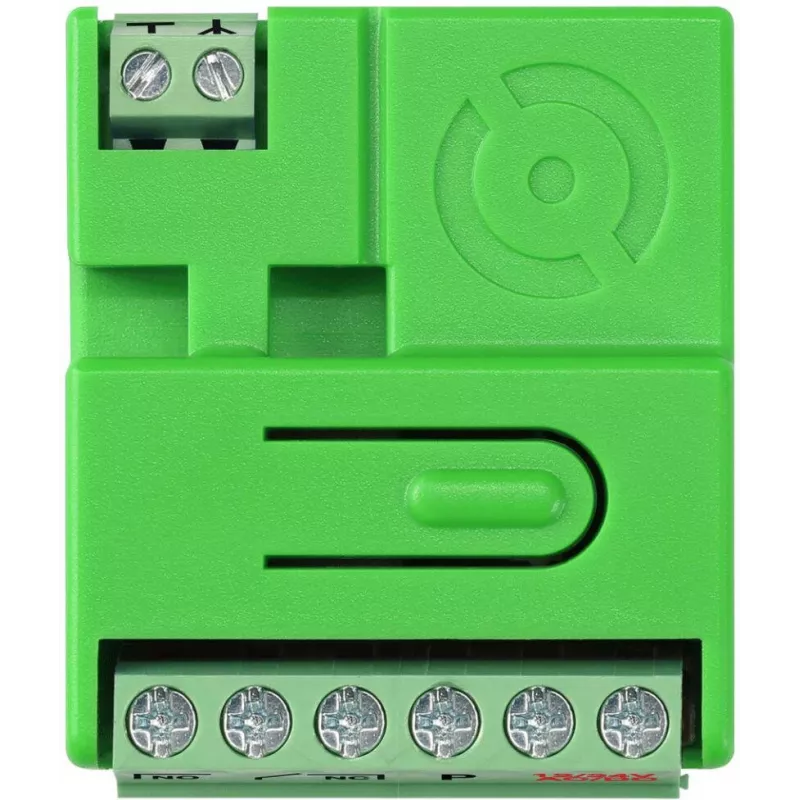

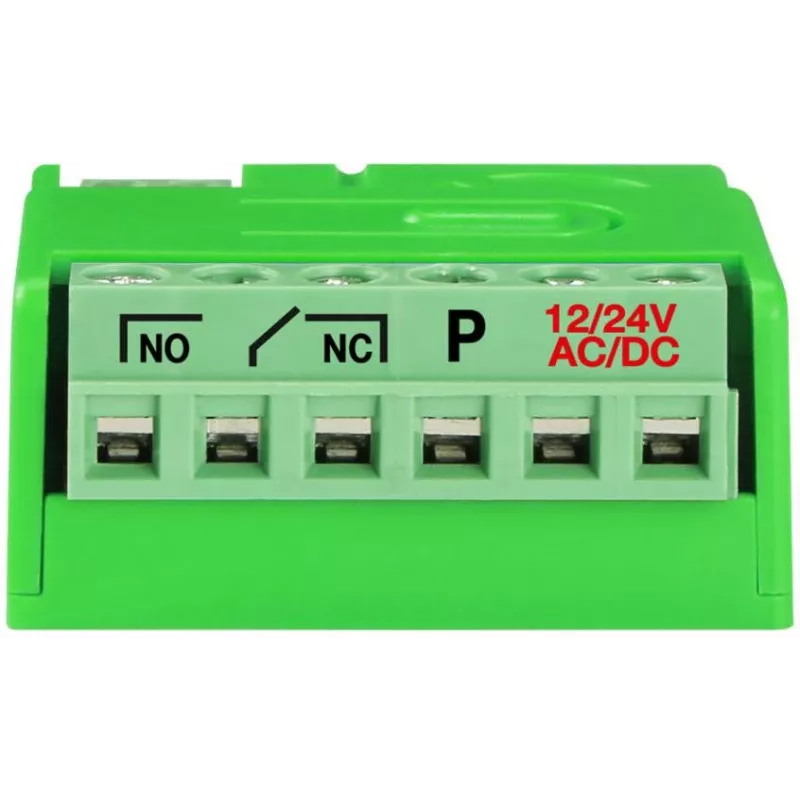

Proxima NM HCS controller universale/ricevitore wireless 433,92 MHz a 2 canali

The Proxima NM HCS is a universal single-channel radio receiver operating at 433.92 MHz. It is powered by 12–24V AC/DC and works with PROXIMA rolling-code remotes, and may be compatible with remotes from other manufacturers based on the KeeLoq 433.92 MHz system. The receiver is designed for controlling gate drives and other devices.

Key features

• Full relay NO / COM / NC – three relay operating modes
• Superheterodyne receiver with a range of up to 200 metres in open terrain without interference and obstacles
• Memory for 42 remotes
• Programming via a single button; menu navigation confirmed by a built-in buzzer and LED
• Acoustic confirmation of remote signal reception (can be disabled)
• Acoustic signalling of low remote battery for one minute
• With a registered Proxima remote: acoustic reading of the number of programmed remotes, deletion of a single remote, deletion of all remotes except the one performing the deletion
• Selectable whether only the registered button or all buttons of a registered remote are active
• Possibility to connect an external antenna
• Small dimensions and mounting with a cable tie

Specifications

• Brand: Proxima
• MPN: NM HCS
• Power supply: 12–24V AC/DC
• Current consumption: 10 mA
• Remote memory: 42
• Outputs: 1 channel NO/NC (24V, 1A)
• Channel operating modes: monostable (1-3-5-25 s), bistable, TDJN (as long as you press)
• Dimensions: 37 x 41 x 15 mm
• Weight: 23 g
