PSG 60.019 Staffa di scorrimento per cancello scorrevole 80x80mm

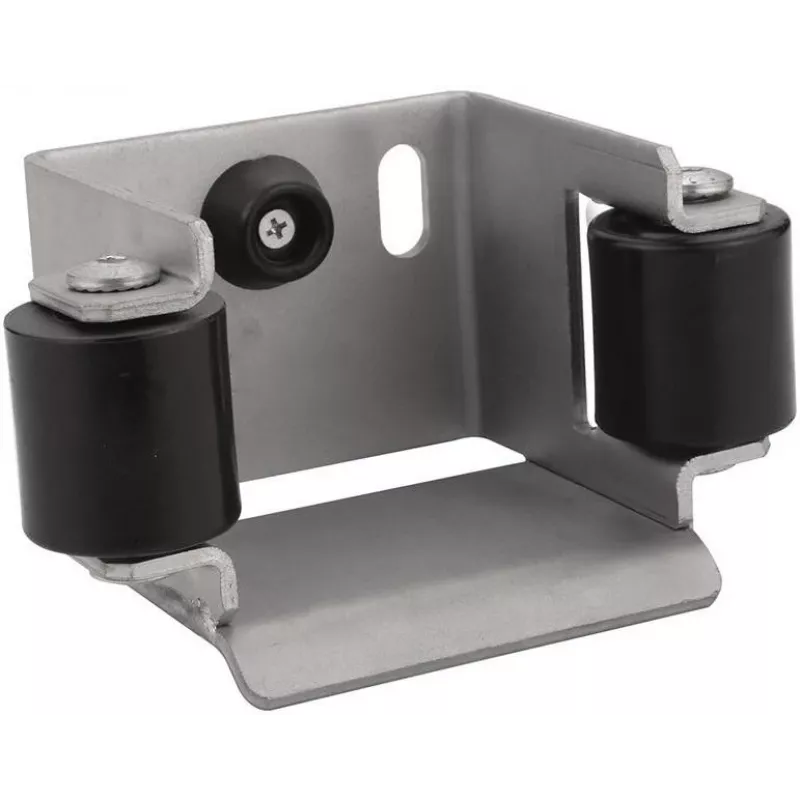

The PSG 60.019 Sliding Gate Run-in Bracket is a heavy-duty, hot-dip galvanized steel bracket designed for guiding and supporting sliding gates with a square profile of 80x80 mm. Manufactured by PSG, this weld-on bracket ensures high corrosion resistance and durability for both residential and industrial outdoor applications. The integrated rubber/plastic bumper provides smooth gate operation and impact absorption.

Advantages

Robust construction with approx. 3 mm steel thickness ensures long-lasting performance. Hot-dip galvanized finish offers excellent protection against rust and weather conditions. Easy weld-on installation saves time and provides a secure fit. The integrated bumper reduces noise and wear during gate movement.

Suitable for

• Sliding gates with 80x80 mm square profiles
• Residential and industrial gate systems
• Outdoor installations requiring high corrosion resistance
• Weld-on mounting applications

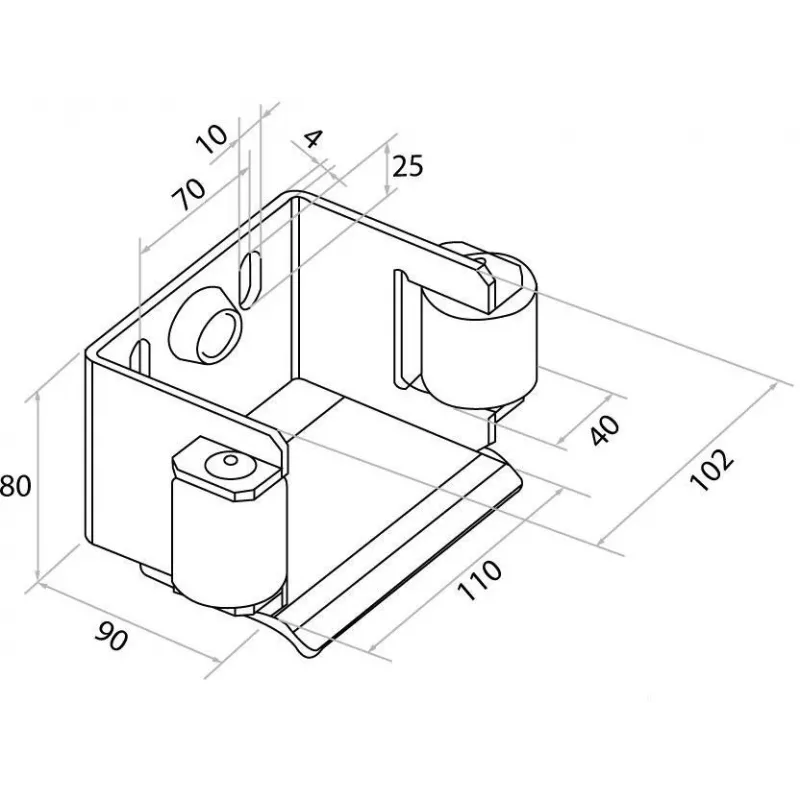

Key specifications

• Product Type: Sliding Gate Run-in Bracket
• Gate Profile Compatibility: 80x80 mm (Square Profile)
• Material: Steel
• Finish: Hot-dip Galvanized
• Internal Width: 80 mm
• Internal Depth: 80 mm
• Mounting Method: Weld-on
• Integrated Bumper Material: Rubber/Plastic
• Steel Thickness: Approx. 3 mm
• Application: Residential and Industrial Sliding Gates
• Operating Environment: Outdoor
• Brand Series: PSG Gate Hardware

Recommendations

For optimal performance, ensure the gate profile dimensions match the bracket's internal width and depth. Weld the bracket securely to the gate frame and check alignment before full installation. Suitable for use with PSG sliding gate systems and compatible hardware.
