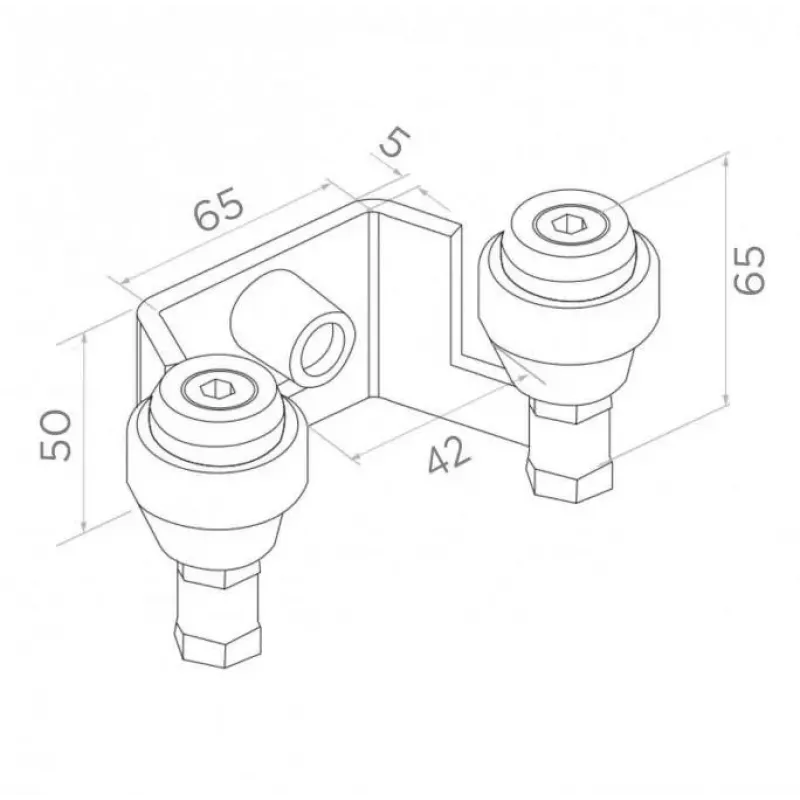

PSG 60.022 staffa di guida superiore per cancelli scorrevoli 42mm (2 rulli)

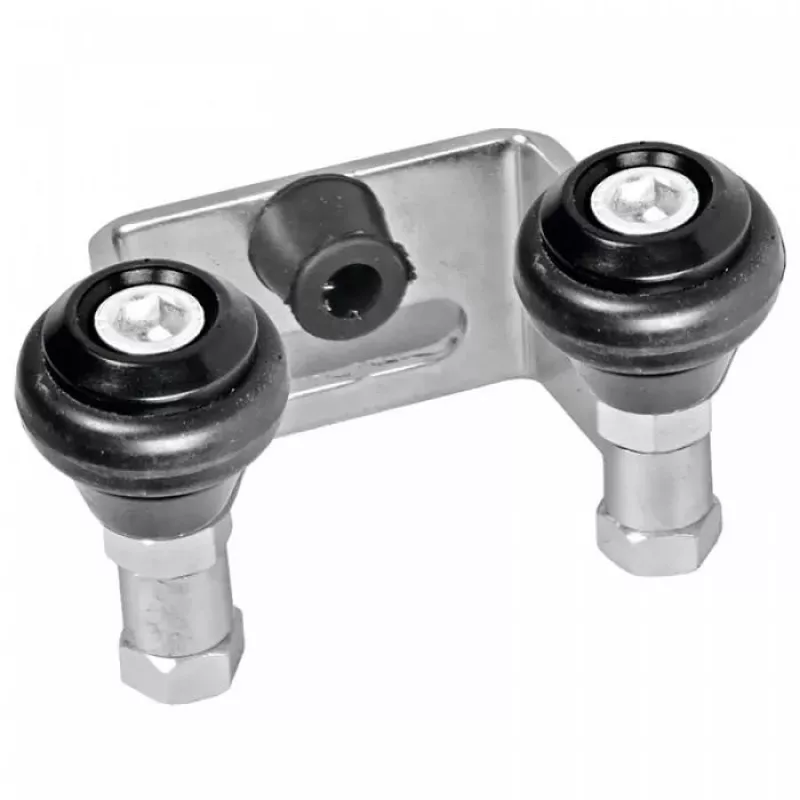

The PSG 60.022 Upper Guide Bracket is a robust and reliable component designed for sliding gates. Manufactured by PSG, this bracket ensures smooth and stable gate operation by guiding the top edge of the gate. It features two polyamide rollers that reduce friction and wear, making it ideal for frequent use. The bracket is made of galvanized steel for excellent corrosion resistance and durability. Compatible with gate profiles up to 42 mm width, it is easy to install with bolt-on mounting. The adjustable roller spacing allows for precise alignment, ensuring optimal performance in various gate systems.

Advantages

This upper guide bracket offers several benefits: it provides stable guidance for sliding gates, reduces noise and vibration, and extends the lifespan of the gate system. The galvanized steel construction ensures long-lasting protection against rust and weather conditions. The polyamide rollers are wear-resistant and require minimal maintenance. Adjustability allows for fine-tuning during installation, ensuring a perfect fit.

Suitable for

• Residential and commercial sliding gates
• Gate profiles with a width of up to 42 mm
• Top mounting applications
• Outdoor use due to weather-resistant materials

Key specifications

• Product Type: Upper Guide Bracket
• Application: Sliding Gates
• Number of Rollers: 2
• Compatible Gate Profile Width: Up to 42 mm
• Roller Material: Polyamide (PA)
• Bracket Material: Galvanized Steel
• Corrosion Protection: Galvanized
• Mounting Position: Top / Upper
• Adjustability: Yes (Roller spacing/width adjustable)
• Weather Resistance: Yes
• Roller Diameter: 30 mm
• Bracket Base Length: 150 mm
• Bracket Base Width: 40 mm
• Total Bracket Height: 100 mm
• Bearing Type: Plain Bearing
• Installation Method: Bolt-on
• Function: Stabilizes and guides the top edge of the sliding gate
• Durability: High
• Manufacturer Series: PSG 60.xxx
• EAN: 5901289674874

Recommendations

For optimal performance, ensure the gate profile width does not exceed 42 mm. Pair with compatible bottom rollers and track for a complete sliding gate system. Regular inspection of rollers and bracket is recommended to maintain smooth operation.
