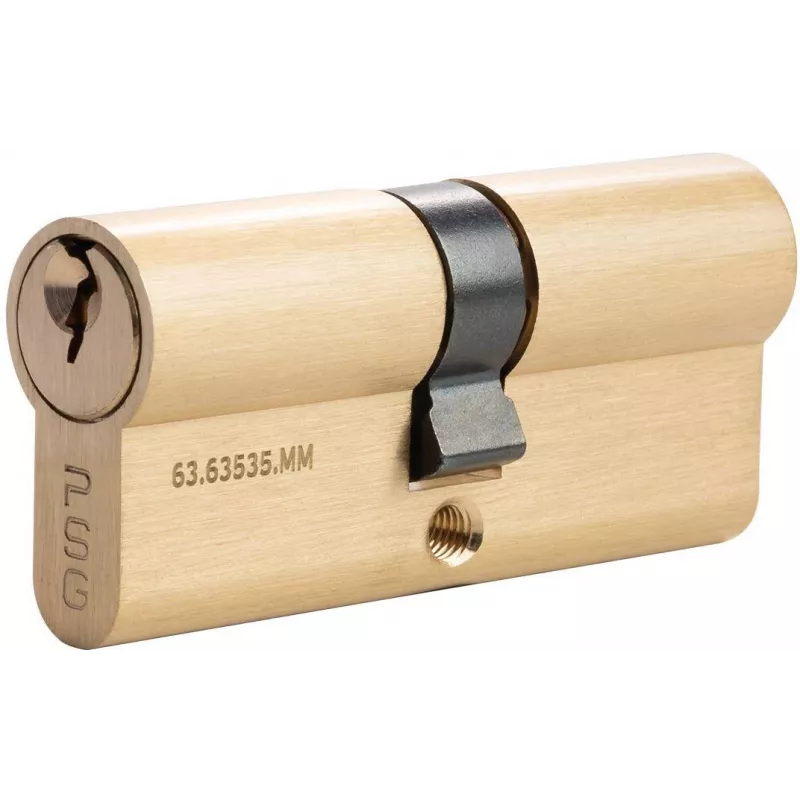

PSG 63.63535.MM serratura a cilindro doppio in ottone massiccio 35/35 ottone lucidato

Solid brass construction with a polished finish delivers exceptional corrosion resistance and a premium feel for this double cylinder lock. The 35/35 mm sizing fits standard Euro profile mortise locks, making it a direct replacement for most residential and commercial doors.

Overview

The PSG 63.63535.MM is a pin tumbler double cylinder designed for doors requiring key operation from both sides. Its solid brass body ensures long-term durability, while the polished brass finish adds a classic aesthetic that complements traditional hardware. With a total length of 70 mm (35 mm each side), it accommodates standard door thicknesses and is compatible with most mortise locks. The cylinder includes three standard profile keys and features a 30-degree cam rotation for smooth operation.

What stands out

• Solid brass construction for high corrosion resistance and longevity.
• Polished brass finish provides an elegant, timeless look.
• Double cylinder design allows key access from both sides, ideal for doors without a thumbturn.
• Standard 35/35 mm size fits most Euro profile mortise locks without modification.

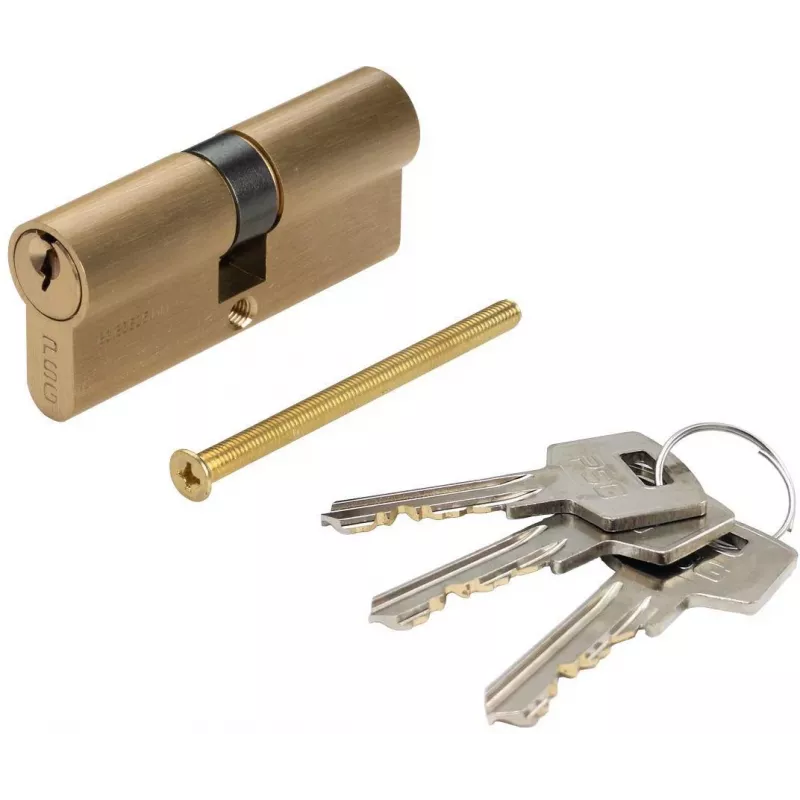

• Includes three keys, ready for immediate use.
• Pin tumbler mechanism with 5 pins offers reliable everyday security.

Technical details

• Cylinder type: Double cylinder (Euro profile)
• Material: Solid brass
• Finish: Polished brass

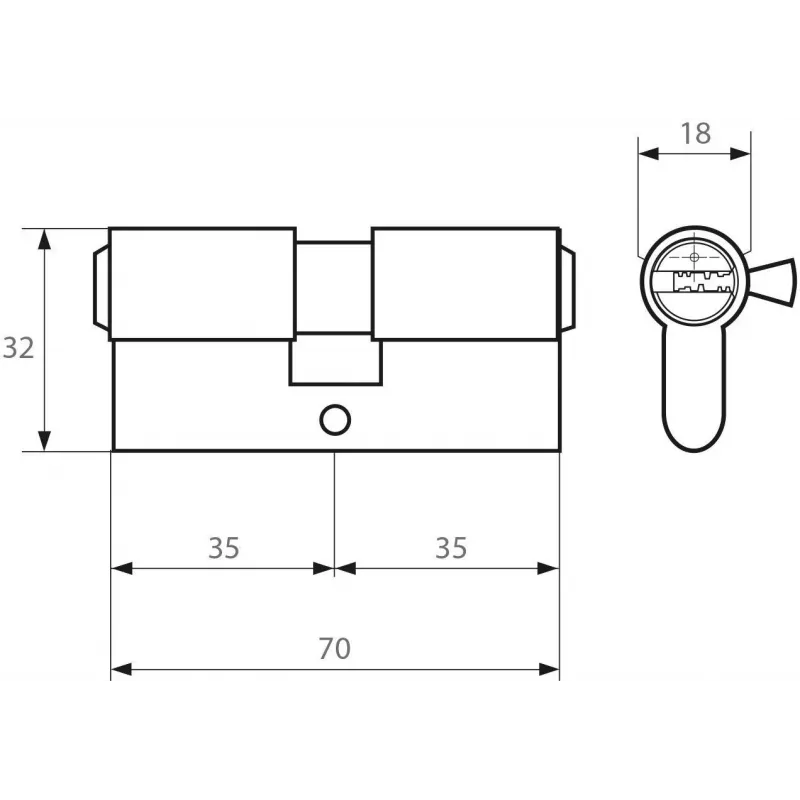

• Outer side length: 35 mm
• Inner side length: 35 mm
• Total length: 70 mm
• Mechanism: Pin tumbler, 5 pins

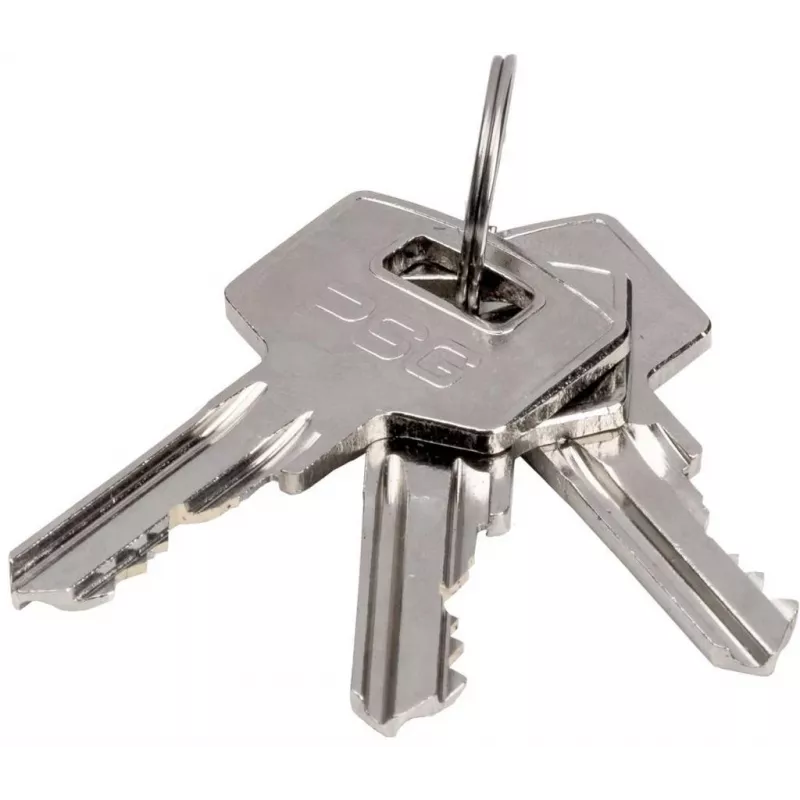

• Keys included: 3 standard profile keys
• Keying: Keyed different
• Cam rotation: 30 degrees
• Installation: Mortise lock compatible
• Application: Residential and commercial doors
• Security level: Standard
• Corrosion resistance: High

Our verdict

A robust and reliable double cylinder lock that combines solid brass durability with a classic polished finish. Its standard sizing and included keys make it a straightforward upgrade or replacement for any compatible door.
