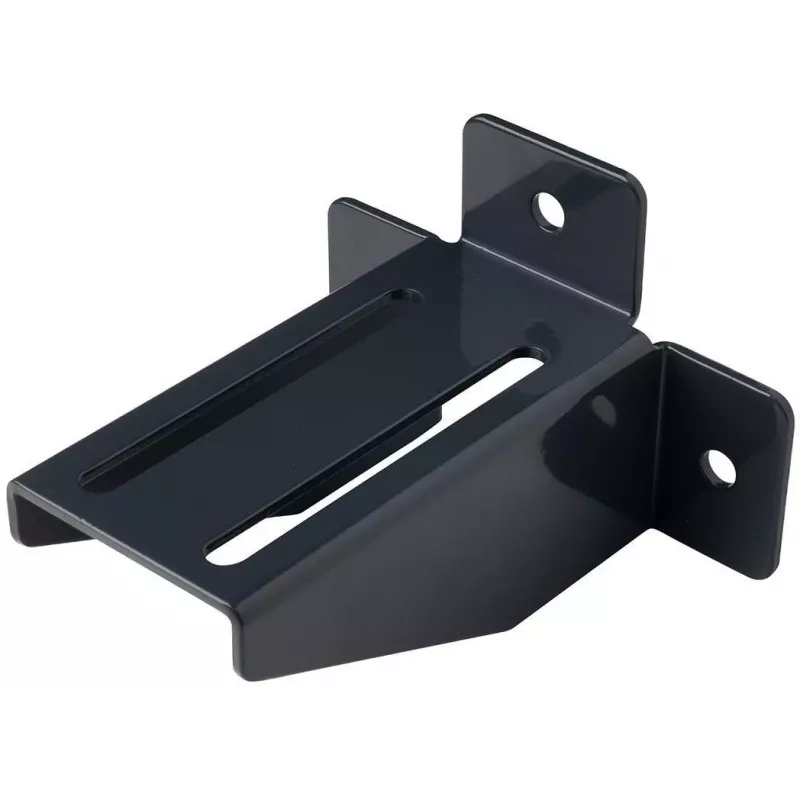

PSG Staffa di supporto 60.013.7016 per rullo drive-on / supporto rampa, grigio antracite (RAL 7016)

The PSG Support Bracket 60.013.7016 is a heavy-duty, weather-resistant steel bracket designed for use with drive-on rollers and ramp holders in sliding gate systems. Its robust construction and powder-coated finish ensure long-lasting performance in outdoor environments.

Advantages

This support bracket offers high corrosion resistance and durability, making it ideal for demanding gate applications. The bolt-on mounting method simplifies installation, and the compact design fits standard sliding gate hardware.

Suitable for

• Sliding gate systems requiring a reliable support bracket for drive-on rollers
• Outdoor installations where weather resistance is critical
• Heavy-duty gate applications needing a sturdy mounting solution

Key specifications

• Product Type: Support Bracket
• Application: Sliding Gate Systems
• Intended Use: For Drive-On Roller / Ramp Holder
• Material: Steel
• Surface Finish: Powder Coated
• Color: Anthracite Grey (RAL 7016)
• Mounting Method: Bolt-on
• Base Plate Dimensions: Approx. 120 x 60 mm
• Overall Height: Approx. 80 mm
• Material Thickness: Approx. 3-4 mm
• Number of Mounting Holes: 4
• Mounting Hole Diameter: Approx. 10 mm (M10)
• Brand Series: PSG Gate Hardware

Recommendations

For optimal performance, use appropriate fasteners (not included) and ensure compatibility with your specific drive-on roller model. Regular inspection is recommended to maintain corrosion resistance.
