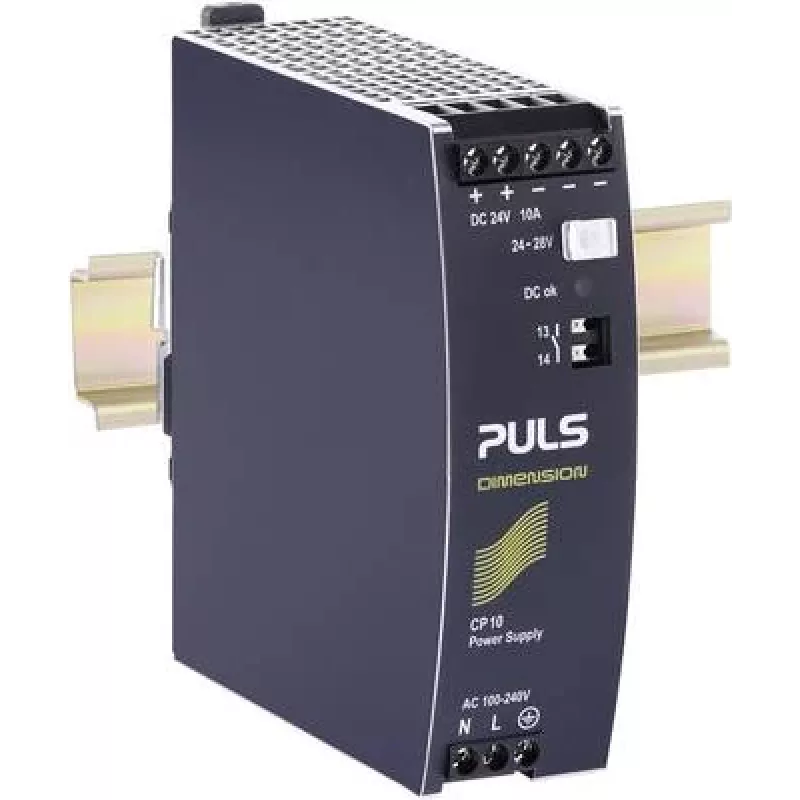

PULS CP10.241 alimentatore per guida DIN 24V DC 10A 240W

Industrial control panels and machinery often require a stable 24V DC supply that can handle demanding loads without interruption. The PULS CP10.241 delivers 240W of regulated power on a DIN rail, making it a reliable choice for automation engineers and panel builders who need dependable performance in compact spaces.

Key specifications

• Output: 24V DC, 10A, 240W
• Input: 100-240V AC (110-150V DC), 45-66 Hz
• Efficiency: >94%
• Active power factor correction (>0.99)
• Ripple and noise: <50 mVpp
• Adjustable output voltage: 24-28V DC
• Protection: overload, short-circuit, overvoltage, overtemperature
• Operating temperature: -25°C to +70°C
• Convection cooling, aluminium housing
• MTBF: >1,000,000 hours
• Mounting: DIN rail TS35/7.5 or TS35/15

Why choose it

The CP10.241 combines high efficiency with a robust design, reducing heat and energy costs in continuous operation. Its wide operating temperature range and comprehensive protection features ensure reliable performance even in harsh industrial environments.

Ideal use cases

• Industrial automation and control systems
• Machine building and panel shops
• Test and measurement equipment
• Building automation

Good to know

The unit uses screw terminals for secure connections and is designed for convection cooling, eliminating the need for fans and reducing maintenance. Its aluminium housing provides durability and effective heat dissipation.
