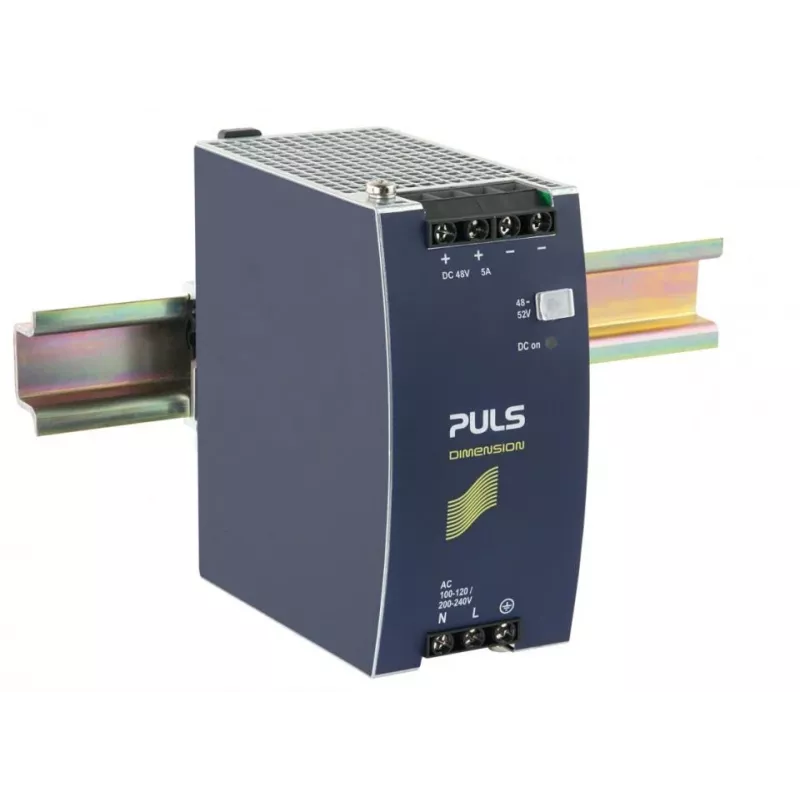

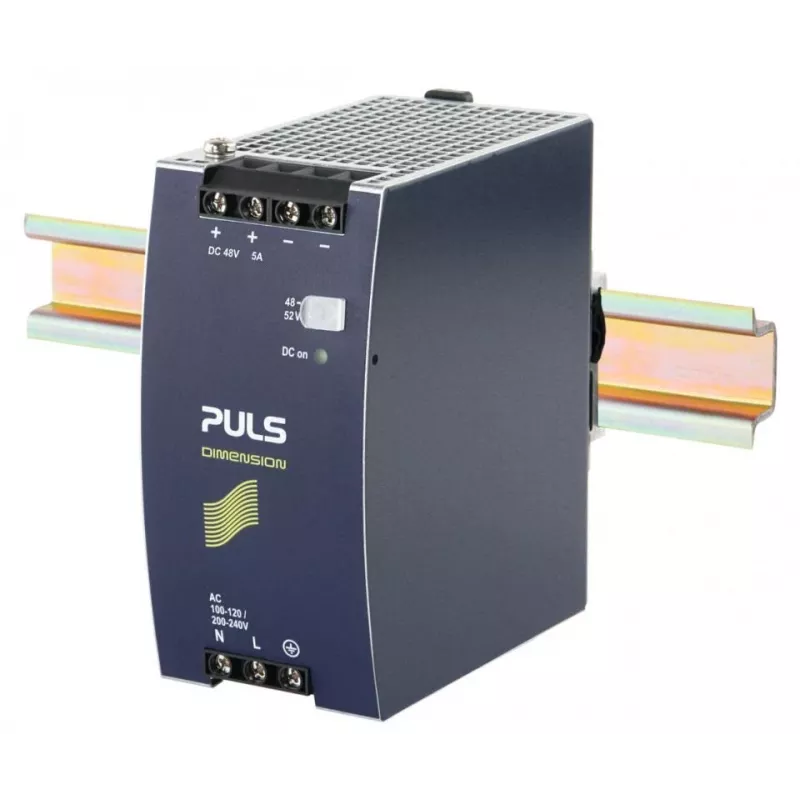

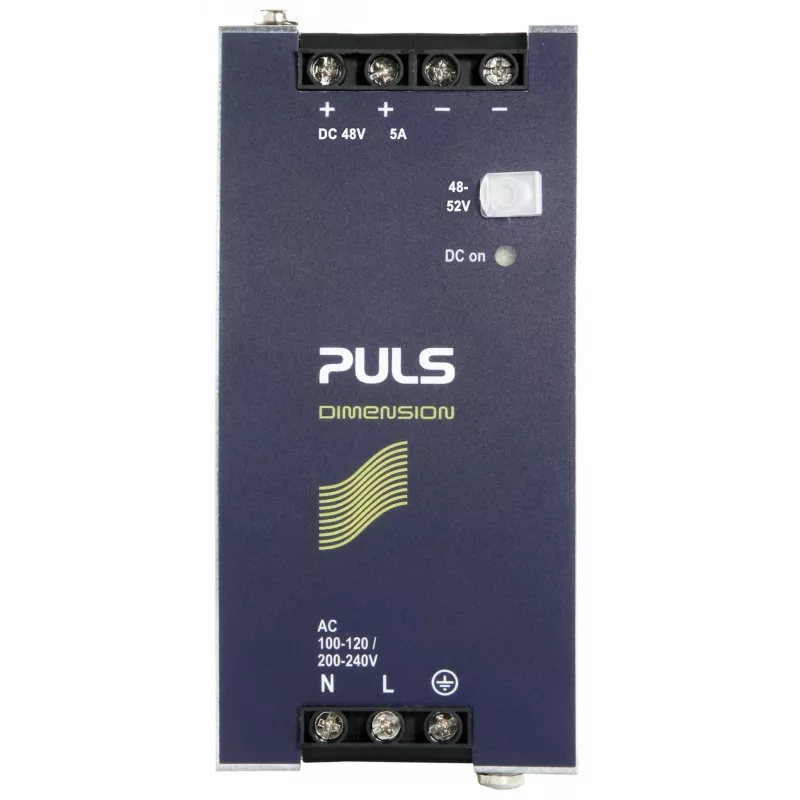

PULS CS10.481 alimentatore per guida DIN 48V 5A 240W ingresso monofase

The PULS CS10.481 stands out with its high efficiency of over 93% and a compact DIN rail design, delivering reliable 48V DC power for industrial applications. It accepts a wide input voltage range of 85-264V AC or 90-350V DC, making it versatile for global use.

Highlights

• Nominal output: 48V DC, 5A, 240W
• Power boost: 7.5A for 5 seconds, static boost: 6.25A permanently
• Efficiency: >93% at 230V AC
• Wide input range: 85-264V AC, 90-350V DC
• DIN rail mounting (NS 35/7.5, NS 35/15)
• Electronic overload and short-circuit protection
• Parallel operation for redundancy or increased power
• Active DC OK signaling with potential-free relay contact

In daily use

The CS10.481 is engineered for demanding industrial environments. Its wide operating temperature range of -25°C to 70°C and high MTBF of over 500,000 hours at 40°C ensure long-term reliability. The output voltage is adjustable from 48V to 56V DC, allowing fine-tuning for specific loads.

Full specifications

• Input voltage (AC): 85 - 264 V AC
• Input voltage (DC): 90 - 350 V DC
• Input frequency: 45 - 65 Hz
• Output voltage (nominal): 48 V DC
• Output voltage adjustment range: 48 - 56 V DC
• Output current (nominal): 5 A
• Output power (nominal): 240 W
• Power boost: 7.5 A (for 5 s)
• Static boost: 6.25 A (permanently)
• Efficiency: > 93% (at 230 V AC)
• Mounting type: DIN Rail (NS 35/7.5, NS 35/15)
• Connection type: Screw connection
• Protection class: IP20
• Operating temperature range: -25 °C to 70 °C
• Overload protection: Yes, electronic
• Short-circuit protection: Yes
• Parallel operation: Yes (for redundancy and increased power)
• Signaling: Active DC OK output, potential-free relay contact
• MTBF: > 500,000 h (at 40°C)

Final note

The PULS CS10.481 is a robust and efficient power supply unit, ideal for industrial automation, control systems, and other applications requiring stable 48V DC power.
