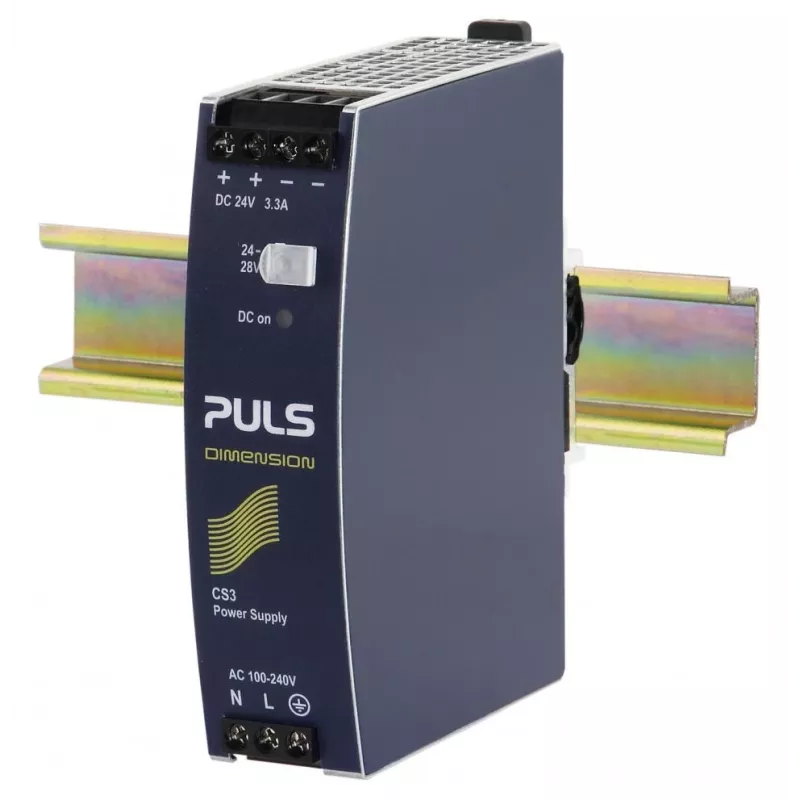

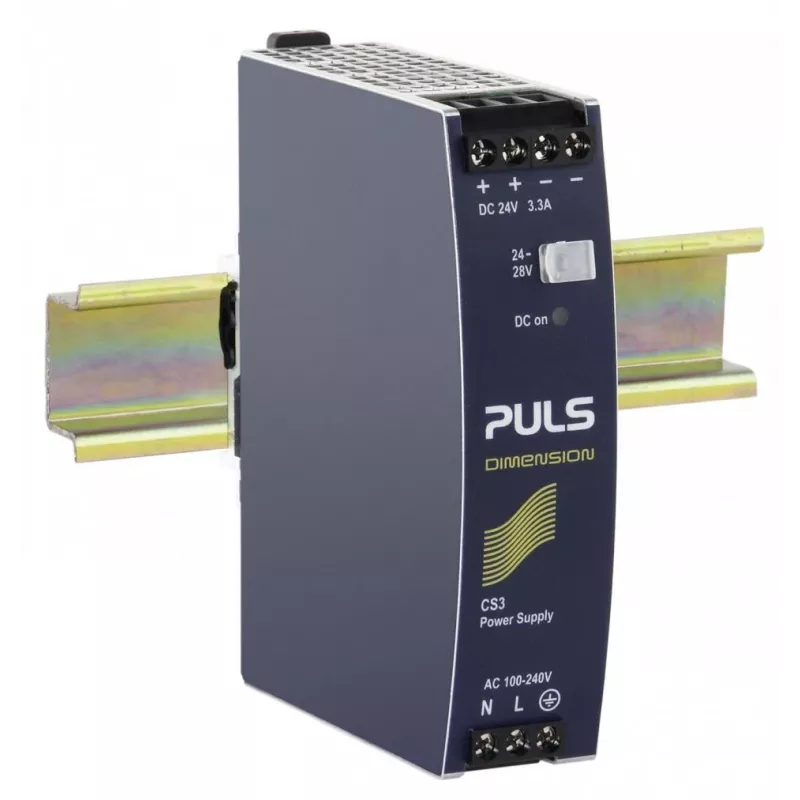

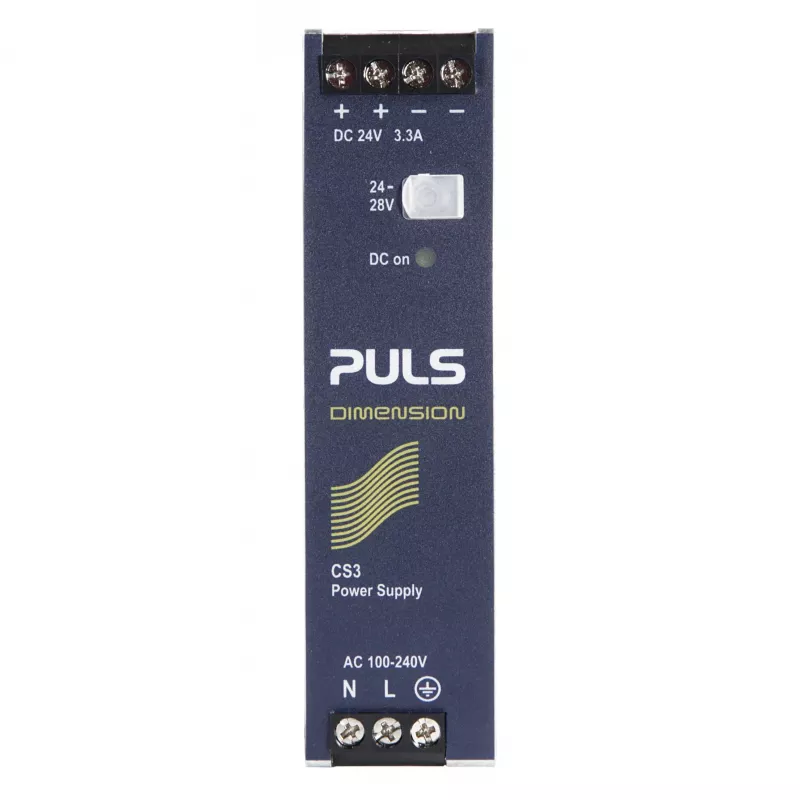

PULS DIMENSION CS3.241 alimentatore DIN rail 24V DC 3,3A 80W

The PULS DIMENSION CS3.241 stands out with its high efficiency of 90.5% and compact DIN rail mounting, making it a dependable choice for industrial control panels where space and heat dissipation matter.

Highlights

• Output: 24 V DC, 3.3 A, 80 W
• Wide-range input: 100-240 V AC or 110-150 V DC
• Adjustable output voltage: 24-28 V DC
• Efficiency: 90.5% at 230 V AC
• Operating temperature: -25°C to +70°C
• Protections: overload, short-circuit, overtemperature, overvoltage
• MTBF: >1,000,000 hours (SN 29500, 40°C)

In daily use

This power supply delivers stable 24 V DC for sensors, controllers, and other automation components. Its metal housing and screw terminals ensure reliable connections in demanding environments. The unit is approved to UL 60950-1, UL 508, and IEC/EN 60950-1.

Full specifications

• Input voltage AC: 100-240 V AC (auto-ranging)
• Input voltage DC: 110-150 V DC
• Input frequency: 50-60 Hz
• Output current: 3.3 A
• Output power: 80 W
• Ripple and noise: < 50 mVpp (20 MHz bandwidth)
• Hold-up time: > 20 ms at 230 V AC, 80 W
• Power factor: > 0.9 at 230 V AC, 80 W
• Mounting: DIN rail TS35/7.5 or TS35/15
• Connection: screw terminals
• Housing material: aluminium

Final note

The CS3.241 is a reliable power source for industrial automation, offering high efficiency and robust protection in a compact form factor.
