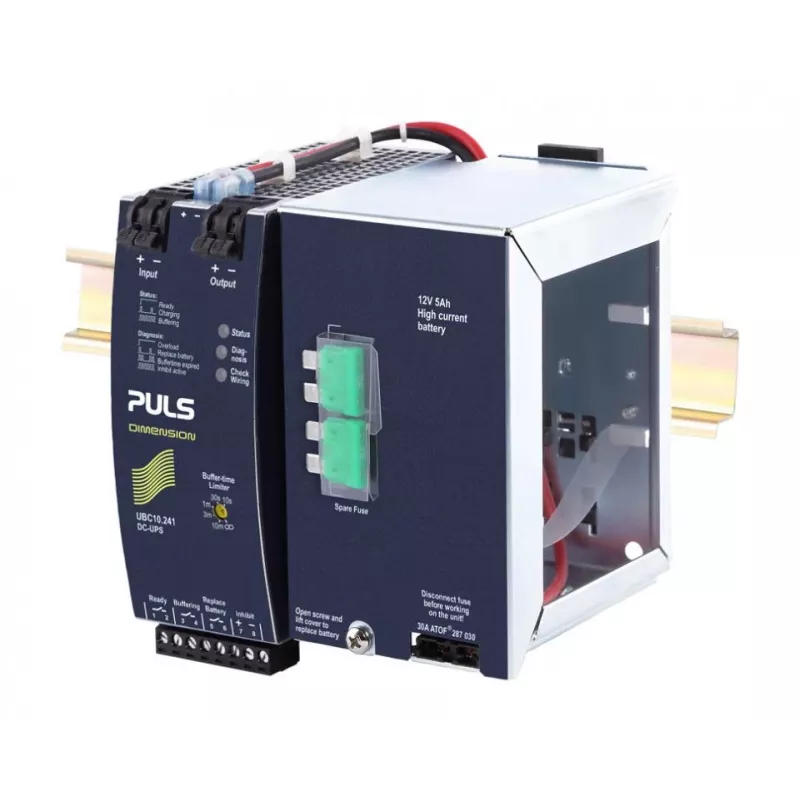

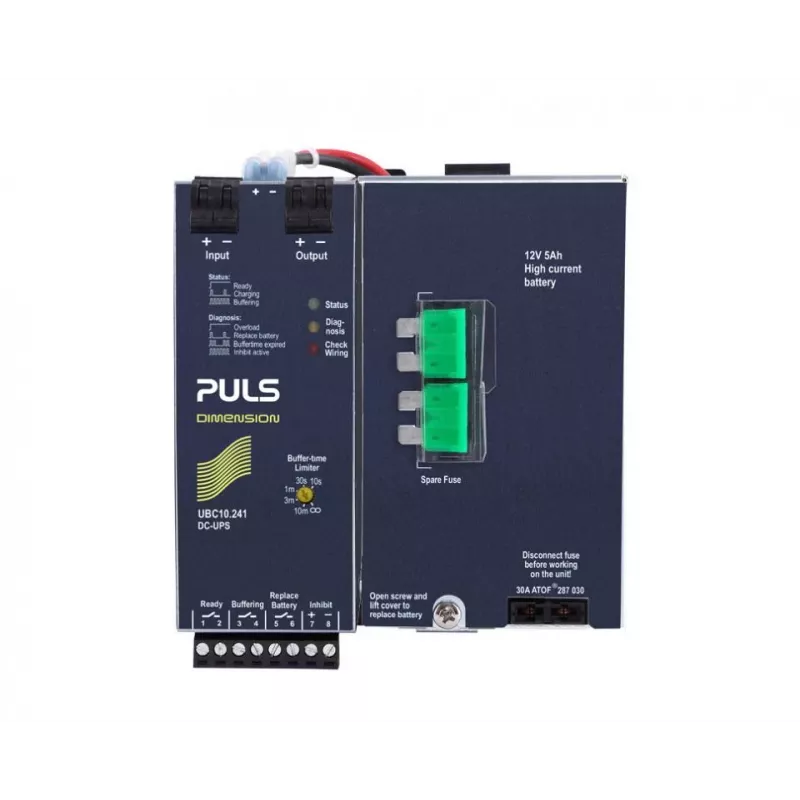

PULS DIMENSION UBC10.241-N1 modulo UPS DC

The PULS DIMENSION UBC10.241-N1 is a DC-UPS module that provides uninterrupted power for 24 VDC loads using a lead-acid battery. It delivers up to 10 A continuous output current with an efficiency exceeding 99%.

Advantages

This module ensures seamless transition to battery operation during mains failure, protecting critical equipment. Its convection cooling and wide operating temperature range from -25°C to +70°C allow deployment in harsh environments. The adjustable charging current (0.5 A to 2 A) optimizes battery life.

Suitable for

• Industrial automation systems
• Process control panels
• Machinery requiring backup power
• 24 VDC emergency lighting

Key specifications

• Input voltage range: 22.5 - 30 VDC
• Nominal battery voltage: 24 VDC
• Compatible battery type: Lead-acid (VRLA, AGM, Gel)
• Max output current: 10 A continuous
• Adjustable charging current: 0.5 A to 2 A
• Efficiency: >99%
• Operating temperature: -25°C to +70°C
• Mounting: DIN rail
• Protection: reverse battery polarity, short-circuit, overload, over-temperature
• Status indicators: LEDs for Input OK, Battery OK, Battery Mode, Alarm
• Signaling outputs: dry contact relays for Input OK, Battery Mode, Battery Low
• Remote control: ON/OFF function
• Cooling: convection

Recommendations

Pair with a 24 V lead-acid battery (e.g., 7 Ah to 40 Ah) for extended hold-up time. Use in DIN rail enclosures with adequate ventilation.
