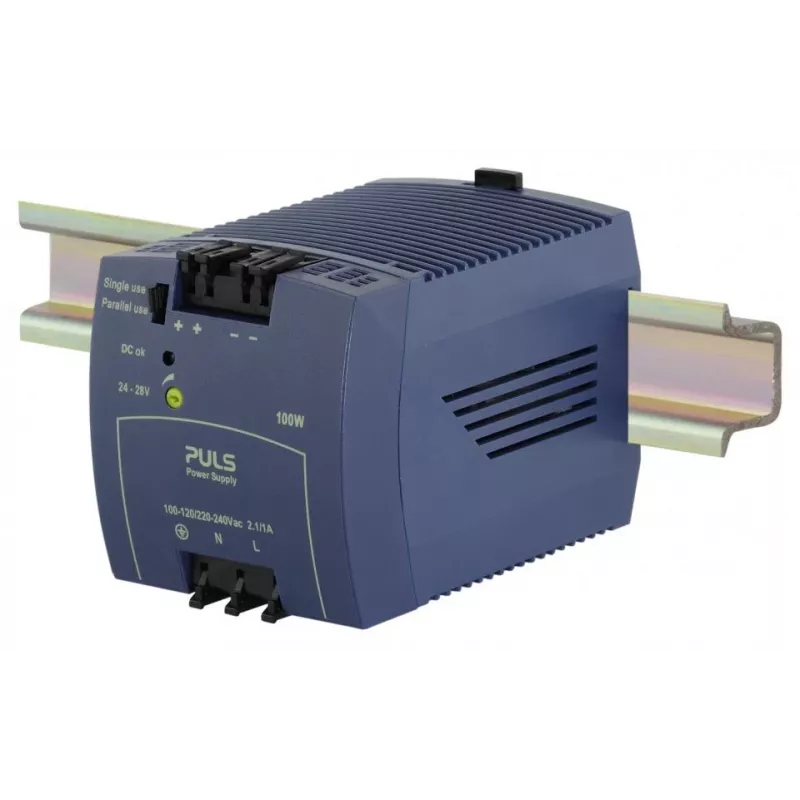

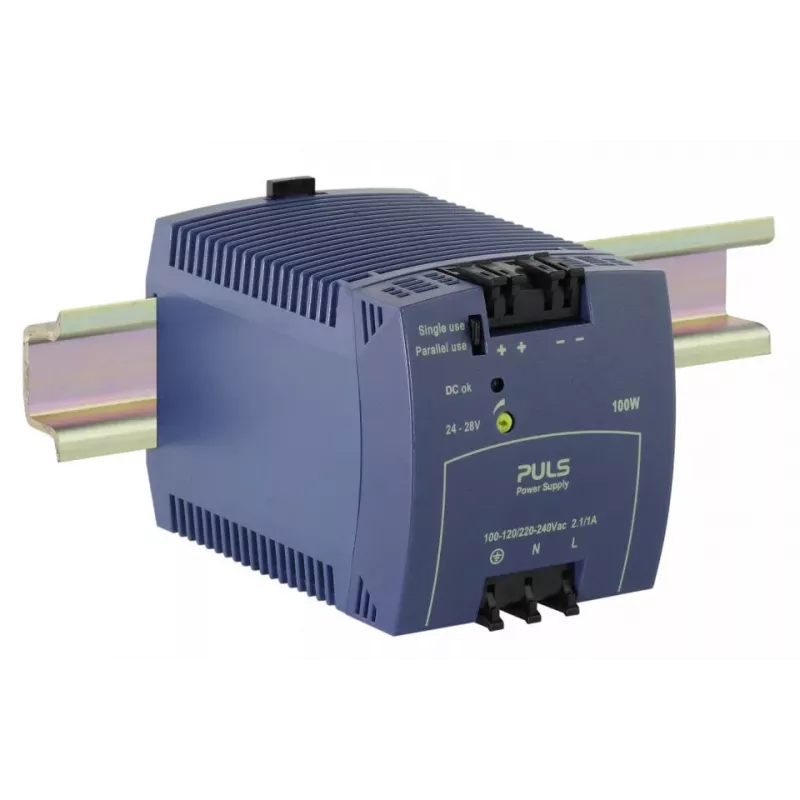

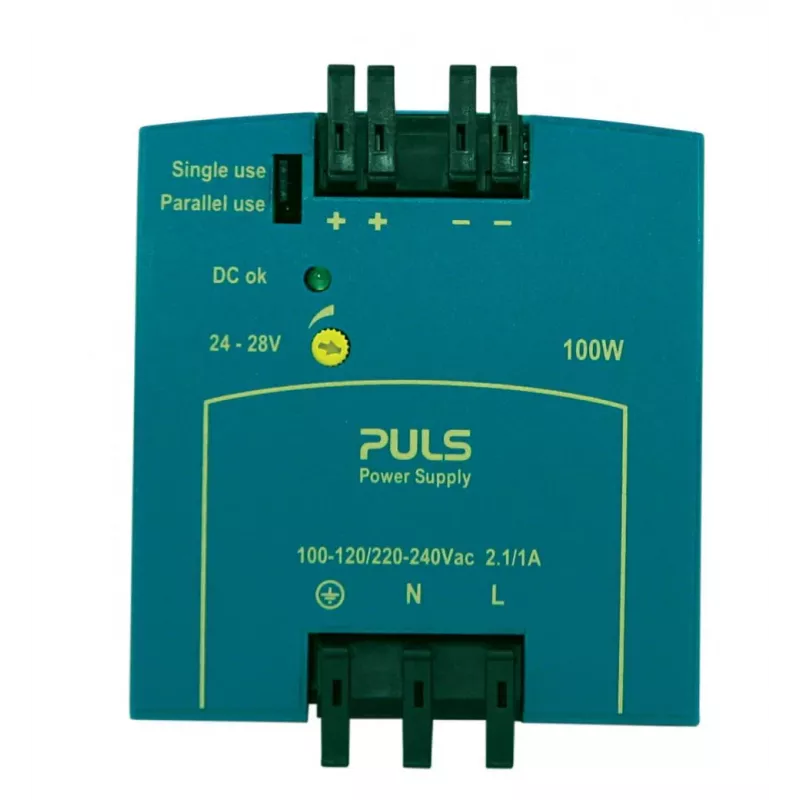

PULS MiniLine ML100.100 Alimentatore per guida DIN 24V DC 4,2A 100W

The PULS MiniLine ML100.100 stands out with its compact plastic housing and high 90.5% efficiency, delivering 100W from a DIN rail unit that fits into tight control cabinets. Unlike bulkier alternatives, it offers convection cooling and a wide 100–240V AC input, making it a reliable choice for industrial automation.

Highlights

• Output: 24 V DC, 4.2 A, 100 W
• Input: 100–240 V AC or 110–150 V DC, 50–60 Hz
• Adjustable output: 24–28 V DC
• DIN rail mounting (TS35/7.5 or TS35/15)
• Protection: overload, short-circuit, over-voltage, over-temperature
• Operating temperature: -10°C to +70°C
• Ripple & noise: < 50 mVpp
• MTBF: > 1,000,000 hours

In daily use

The ML100.100 provides clean, stable power for sensors, controllers, and other 24V devices. Its screw terminals ensure secure connections, and the plastic housing keeps weight down without sacrificing durability. The unit runs silently thanks to convection cooling, and the wide temperature range supports use in demanding environments.

Full specifications

• Output voltage: 24 V DC
• Output current: 4.2 A
• Output power: 100 W
• Input voltage (AC): 100 - 240 V AC
• Input voltage (DC): 110 - 150 V DC
• Input frequency: 50 - 60 Hz
• Efficiency: 90.5%
• Output adjustment range: 24 - 28 V DC
• Mounting type: DIN rail (TS35/7.5 or TS35/15)
• Operating temperature: -10°C to +70°C
• Protection: overload, short-circuit, over-voltage, over-temperature
• Connection: screw terminals
• Ripple & noise: < 50 mVpp
• MTBF: > 1,000,000 h
• Housing material: plastic
• Cooling: convection

Final note

With its high efficiency and compact design, the PULS MiniLine ML100.100 is a dependable power source for any DIN rail installation.
