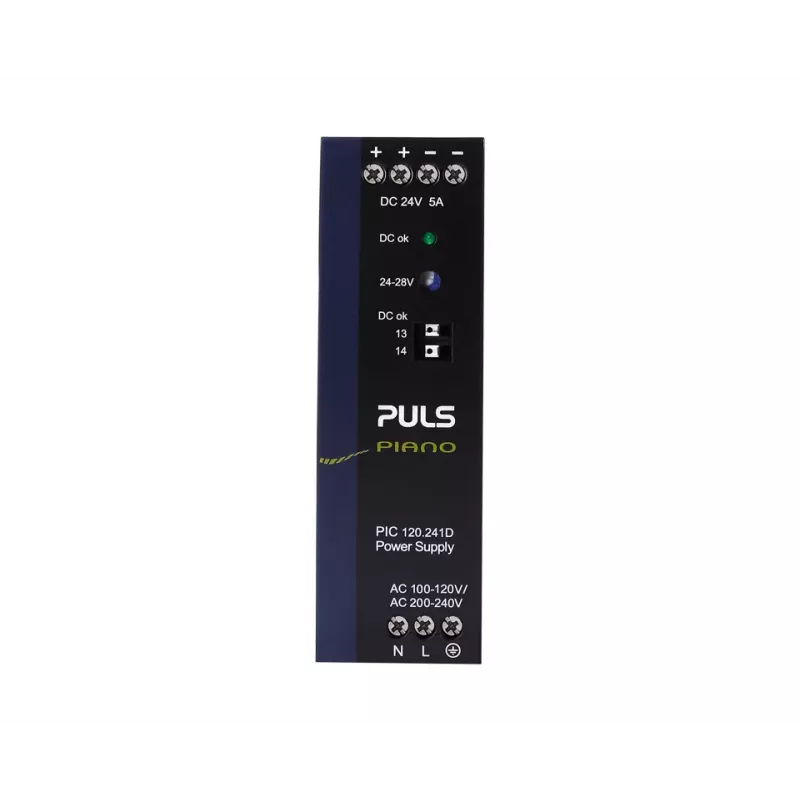

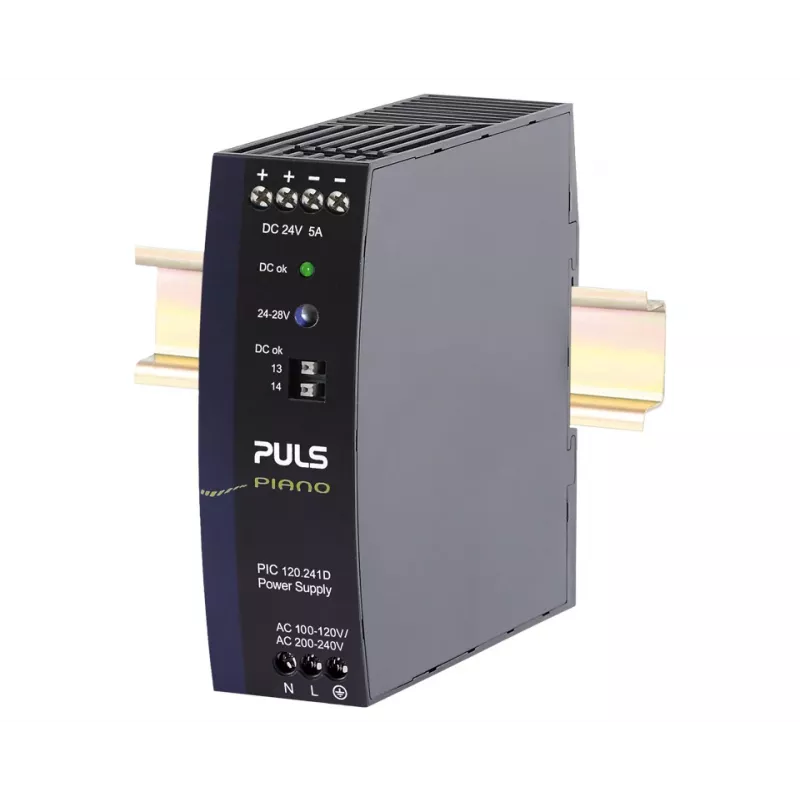

PULS Piano alimentatore DIN rail 24V DC 5A 120W (PIC120.241D)

The PULS Piano PIC120.241D is a compact DIN-rail power supply that delivers a stable 24 V DC output at up to 5 A, providing 120 W of power for industrial control systems, automation, and instrumentation. Its convection-cooled design eliminates the need for internal fans, reducing maintenance and audible noise while ensuring reliable operation in demanding environments.

Highlights

• High efficiency of 90.5% at 230 VAC input, minimizing energy consumption and heat generation.
• Wide input voltage range of 100–240 VAC (85–264 VAC) with power factor > 0.9 for flexible global use.
• Comprehensive protection against overload, short-circuit, over-voltage, and over-temperature.

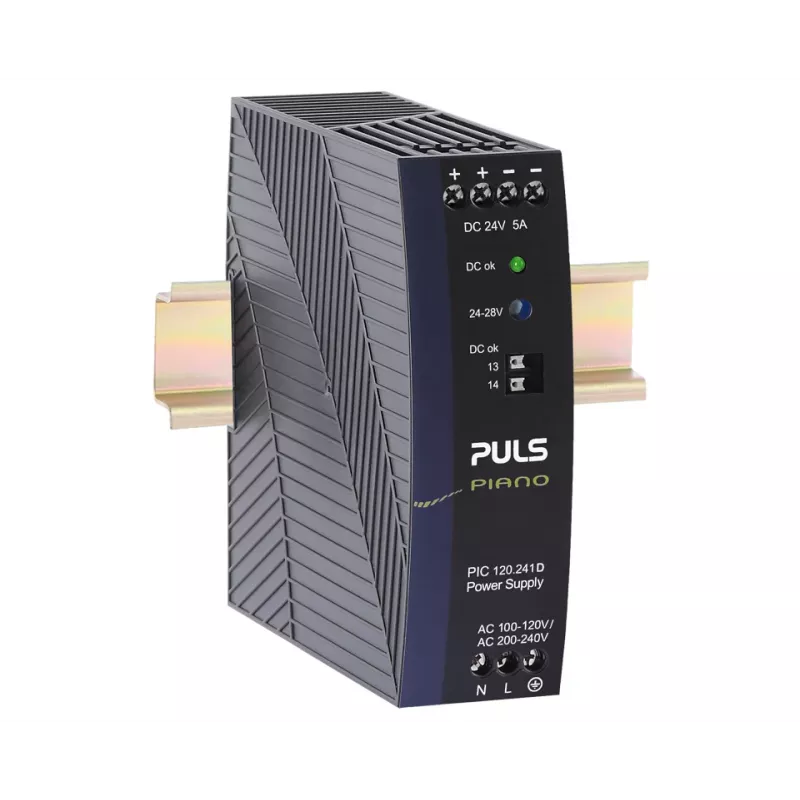

• DIN-rail mountable on TS35/7.5 or TS35/15 rails for quick installation in control cabinets.
• Operating temperature range from -25 °C to +70 °C, suitable for harsh industrial environments.
• High MTBF of over 1,200,000 hours at 40 °C, indicating long-term reliability.

In daily use

With screw terminals for both input and output connections, the PIC120.241D ensures secure wiring in vibration-prone installations. Its compact dimensions and lightweight design allow for space-saving integration into densely packed panels. The power supply's robust construction and compliance with relevant safety standards make it a trusted choice for machine builders and system integrators.

Full specifications

• Output voltage: 24 V DC
• Output current: 5 A
• Output power: 120 W
• Input voltage: 100–240 VAC (85–264 VAC)
• Input frequency: 45–66 Hz
• Efficiency: 90.5%
• Power factor: > 0.9
• MTBF: > 1,200,000 hours
• Operating temperature: -25 °C to +70 °C
• Mounting: DIN-rail TS35/7.5 or TS35/15
• Connections: Screw terminals
• Series: PIANO

Final note

The PULS Piano PIC120.241D combines high efficiency, robust protection, and a compact form factor, making it an excellent power solution for industrial applications where reliability and space are critical.
