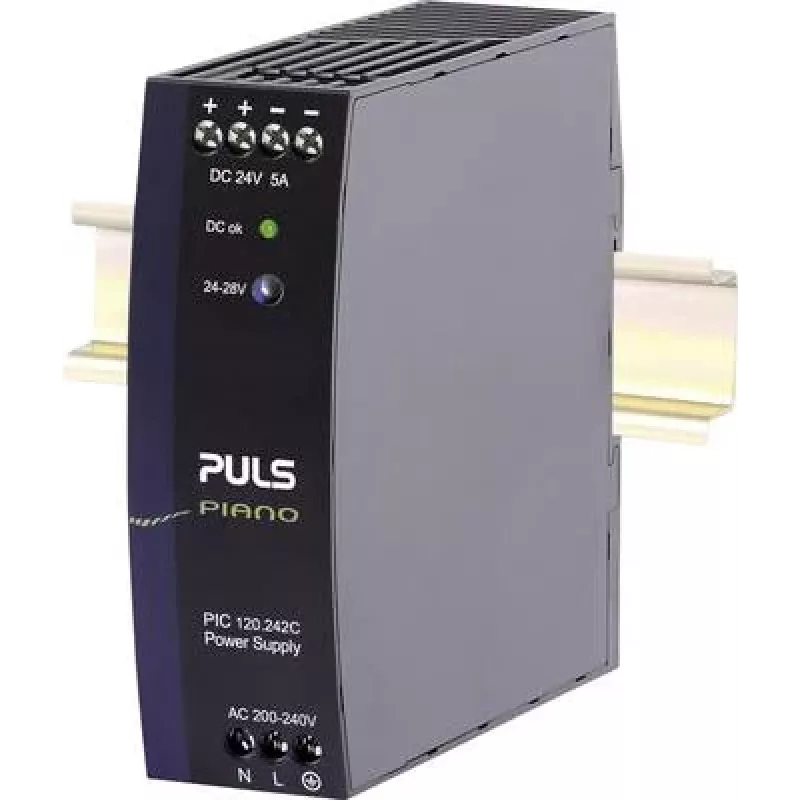

PULS Piano alimentatore DIN rail 24V/DC 5A 120W PIC120.242C

DIN rail power supply delivering 24 VDC at 5 A with 120 W output, engineered for reliable industrial control and automation. Its high efficiency and compact plastic housing make it a robust choice for space-constrained installations.

Advantages

High efficiency of 90.5% reduces energy loss and heat generation. Wide input voltage range accepts 100-240 VAC or 110-150 VDC for flexible deployment. Integrated protection against overload, short-circuit, overvoltage, and overtemperature enhances system safety. Screw terminals ensure secure and maintenance-friendly connections.

Suitable for

• Industrial automation and control cabinets
• Machine building and process control
• Building automation systems
• Distributed power architectures on DIN rails

Key specifications

• Output: 24 VDC, 5 A, 120 W
• Input: 100-240 VAC (auto-ranging) or 110-150 VDC
• Efficiency: 90.5% at 230 VAC
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -10 to +60 °C
• Output voltage adjustment: 24-28 VDC
• Ripple & noise: < 50 mVpp
• Hold-up time: > 20 ms at 230 VAC
• MTBF: > 1,000,000 hours per IEC 61709
• Housing: Plastic, IP20

Recommendations

Pair with appropriate overcurrent protection on the input side and ensure adequate ventilation around the unit to maintain performance within the specified temperature range.
