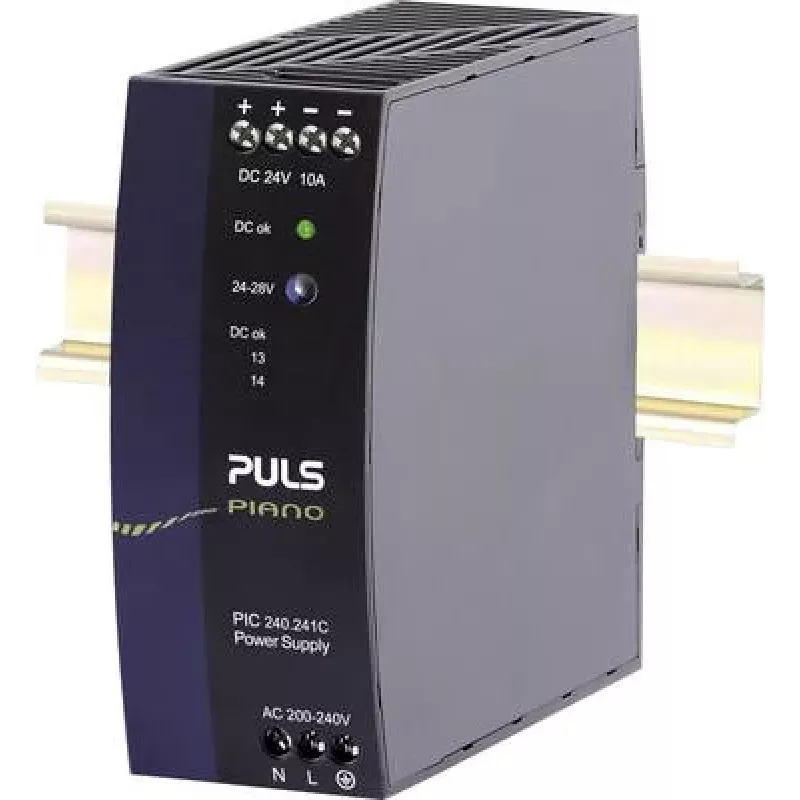

PULS Piano alimentatore per guida DIN 24V DC 10A 240W (PIC240.241C)

DIN rail power supply delivering 24 VDC at 10 A with 240 W output power, featuring active power factor correction and high efficiency up to 94.5%.

Advantages

Compact design for space-saving installation on DIN rails. Active PFC ensures compliance with harmonic current standards and reduces energy waste. Wide input voltage range (85-264 VAC) allows operation on various mains supplies. Parallel operation capability (up to 5 units) enables scalability for higher power demands. Robust plastic housing suitable for industrial environments.

Suitable for

• Industrial automation systems
• Control cabinets
• Machinery requiring stable 24V DC power
• Building automation

Key specifications

• Output voltage: 24 VDC (adjustable 24-28 VDC)
• Output current: 10 A
• Output power: 240 W
• Input voltage: 85-264 VAC
• Efficiency: up to 94.5%
• Operating temperature: -25°C to +70°C
• Protection: overload, short-circuit, overtemperature, overvoltage
• Connection: screw terminals

Recommendations

Ideal for engineers seeking a reliable DIN rail power supply with high efficiency and active PFC for demanding industrial applications.
