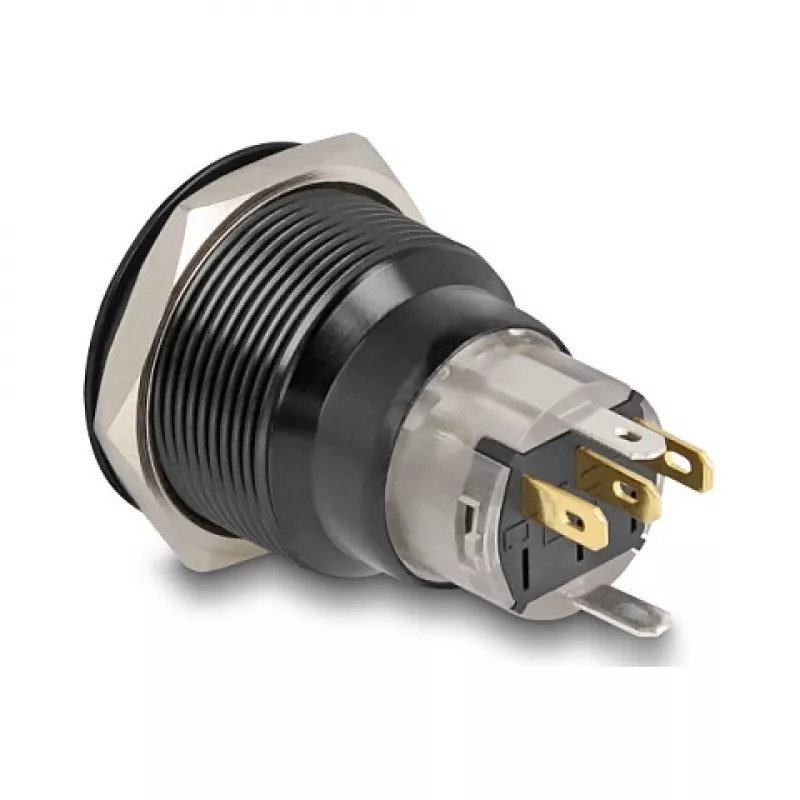

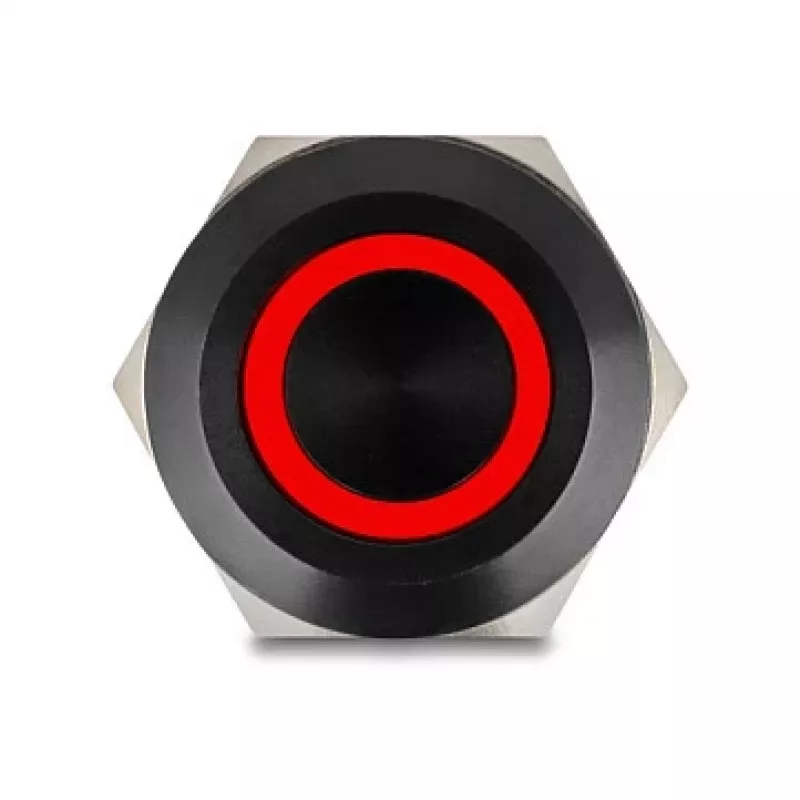

Pulsante da pannello DELOCK 22015 22 mm, 12 V, 5 terminali a saldare

DELOCK 22015 is a 22 mm panel-mount push button switch designed for 12 V systems. The switch provides a compact mechanical interface with five solder terminals that allow for flexible wiring and stable electrical connections. It is suitable for use in control panels, DIY electronics and automotive accessory installations where a small, reliable momentary or maintained switching element is required.

Advantages

The device combines a standardized 22 mm mounting diameter with five solder terminals to support common wiring schemes and easy integration into existing circuits. Its construction is aimed at maintaining secure soldered contacts and straightforward panel installation. The switch's rated operating voltage of 12 V makes it compatible with many vehicle and low-voltage electronic applications.

Suitable for

• Control panels and instrument clusters
• Automotive accessories and dashboard controls
• DIY electronics and hobby projects
• Prototyping and small-scale electrical assemblies

Key specifications

• Mounting diameter: 22 mm panel cutout
• Rated voltage: 12 V DC
• Terminal type: solder terminals (5 terminals)
• Actuation: push button mechanical operation
• Body and front material: metal/plastic combination for panel use (manufacturer typical construction)
• Connection method: soldering for permanent wiring

How to use

Prepare a 22 mm diameter hole in the panel and insert the switch from the front. Secure the switch according to the panel-mount design, ensuring the bezel sits flush and the mechanical fastening is tightened to prevent movement. Use soldering iron and appropriate solder to connect wires to the five solder terminals, following the wiring diagram required for your application (e.g., single pole, indicator lamp or multiple contact arrangements). Verify all connections, then test the switch at 12 V to confirm correct operation prior to final assembly.

Recommendations

For reliable performance, use the switch within the specified 12 V range and avoid exposure to voltages or currents beyond its intended rating. When soldering, ensure proper heat management to prevent damage to terminals and surrounding components. For automotive use, secure wiring with strain relief and protect exposed connections from moisture and vibration.
