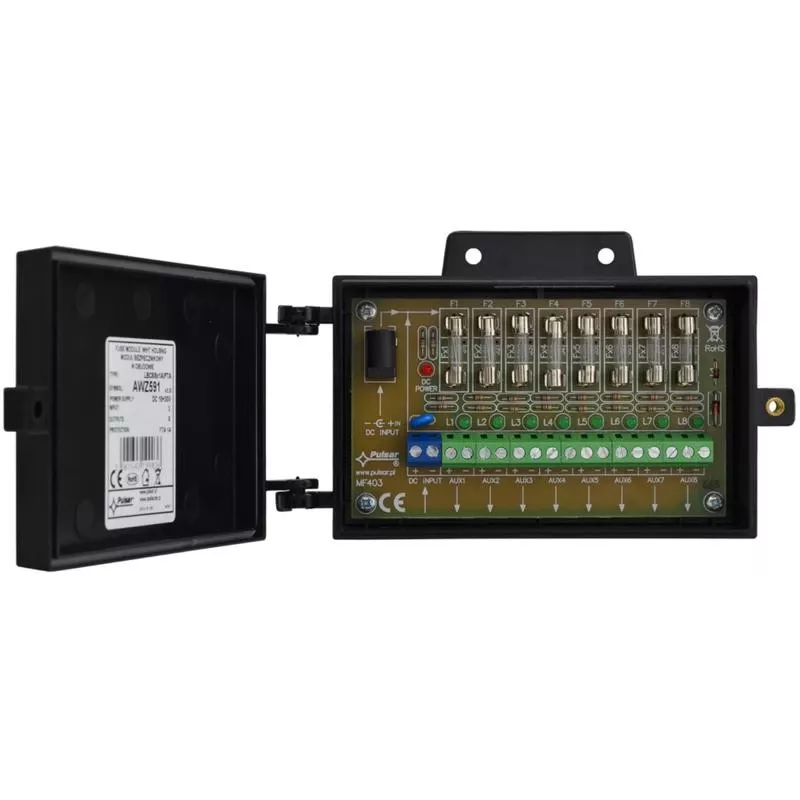

Pulsar AWZ591 modulo fusibile in custodia

The Pulsar AWZ591 is a fused module in an enclosure designed for power distribution. It features a 10÷30 VDC power supply and provides eight 1 A outputs with a fuse for each output.

Key features

• 8 x 1 A outputs
• 8 x 1 A fuses (TOPIK)
• 2 inputs / 8 outputs
• 2 mm² input / 2 mm² output
• Power input: screw terminal or DC 5.5/2.1 socket
• Distribution strip
• Protections: SCP, OLP, overvoltage
• LED optical indication

Specifications

• Brand: Pulsar
• MPN: AWZ591
• Power supply: 10÷30 VDC
• Output: 8 x 1 A / Uaux = Uin
• Fuse: 8 x 1 A (TOPIK)
• Inputs / outputs: 2 / 8 - 2 mm² / 2 mm²
• Power input: screw terminal or DC 5.5/2.1 socket
• Distribution strip
• Dimensions: 150 x 94 x 42 [±2 mm]
• Protections: SCP, OLP, overvoltage
• Signalling: LED optical indication
