Rack a parete Digitus DN-19 09-U-EC-SW

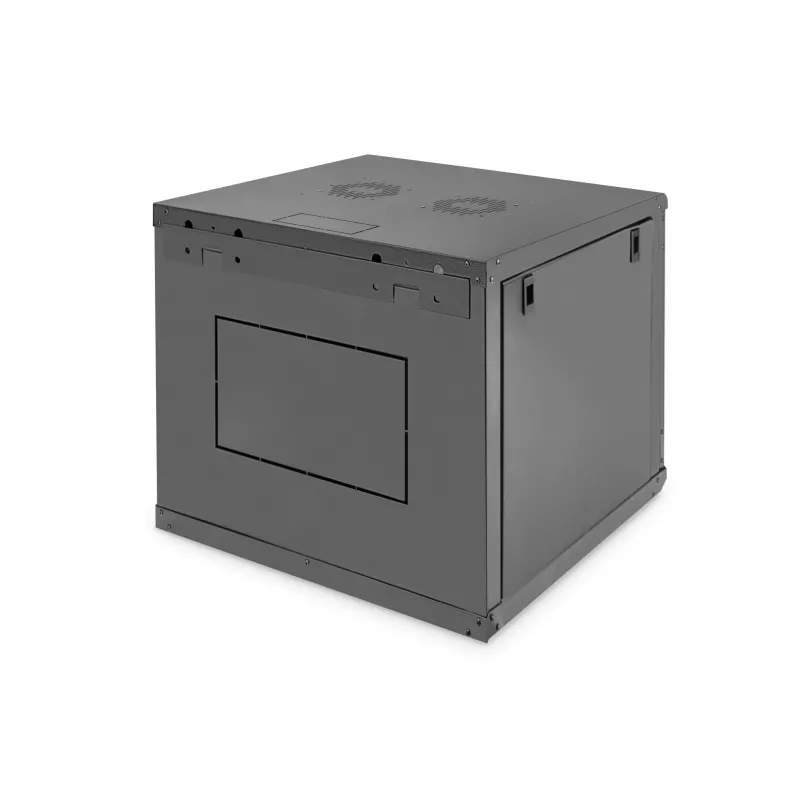

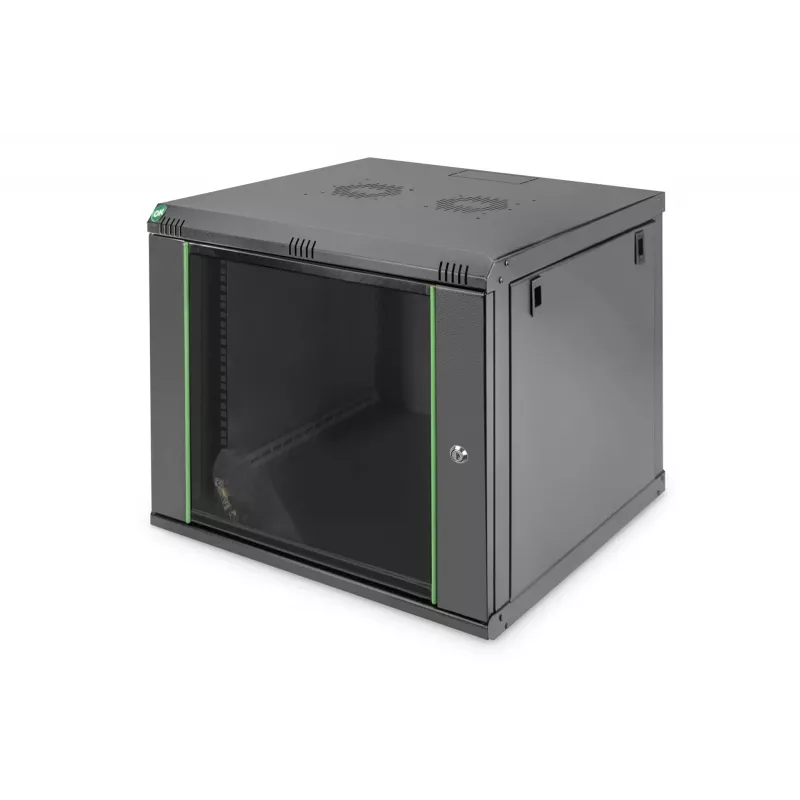

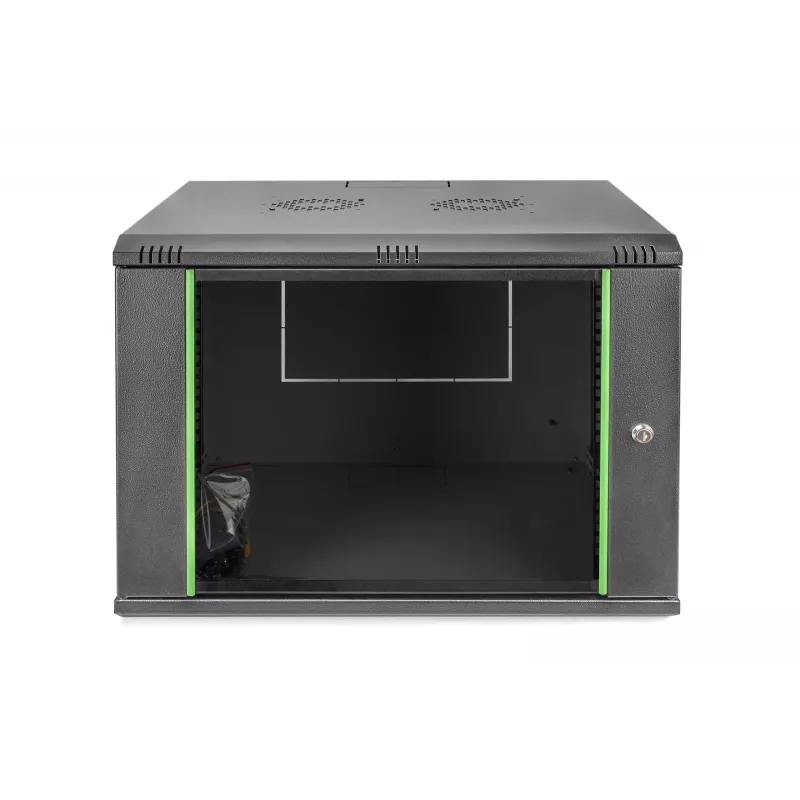

The Digitus Wall Mounting Cabinet Dynamic Basic Series (600 x 450 mm) is a 9U wall-mounted rack designed for space-saving installation and secure organization of network equipment. Constructed from up to 1.5 mm sheet steel with an electrostatic powder-coated finish in jet black (RAL 9005), the cabinet supports a maximum load of 60 kg and has an IP20 rating for indoor use. Removable side panels and a lockable safety-glass front door with a steel frame provide easy access and physical protection while the pre-cut cable inlets on the roof, floor and back enable straightforward cable routing. Two pairs of galvanized 483 mm (19") profile rails with rack unit marking readable in both directions are installed inside and their depth is adjustable to accommodate different devices.

Advantages

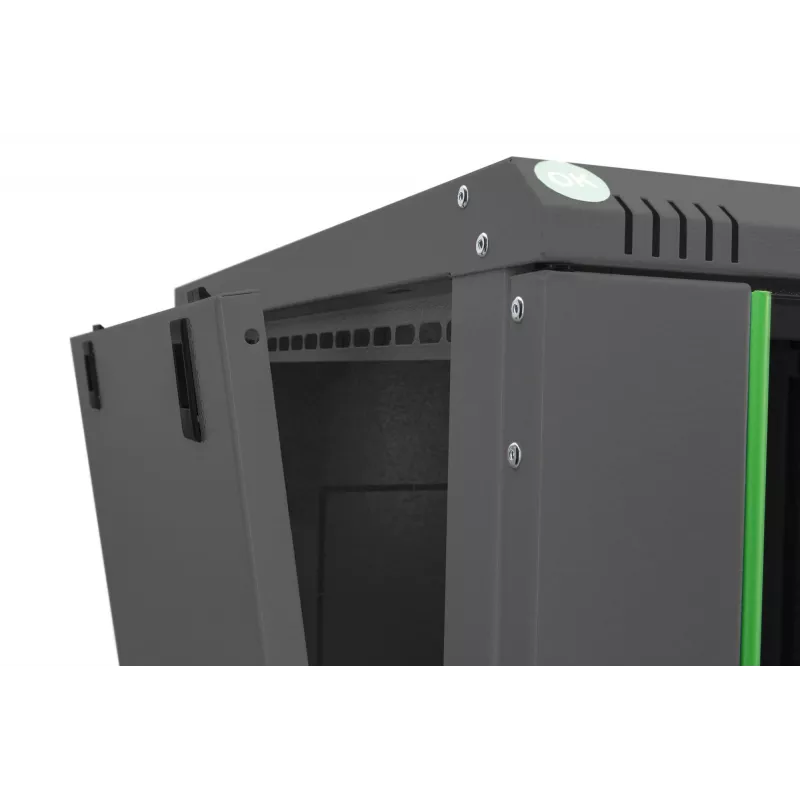

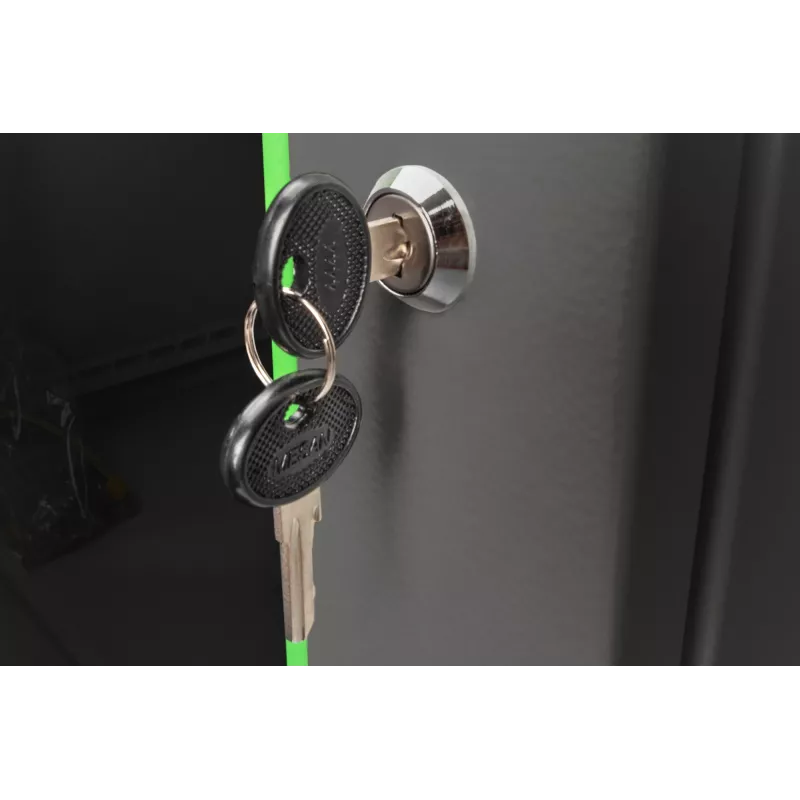

Space-saving 450 mm depth enables installation in compact environments. Optimized ventilation and a pre-cut roof area for a fan module improve airflow management. The lockable safety-glass front door with switchable hinges and removable side panels ensure secure access and flexible maintenance. Durable construction from up to 1.5 mm sheet steel and galvanised 19" profile rails provide stable mounting for network components.

Suitable for

• Small office network equipment (patch panels, switches, routers)
• Server rooms or comms closets with limited depth
• Wall-mounted installations where space saving is required
• Indoor environments requiring physical protection and cable management

Key specifications

• Model: Digitus DN-19 09-U-EC-SW
• Rack capacity: 9U
• Dimensions (W x H x D): 600 x 505 x 450 mm
• Maximum load capacity: 60 kg
• Weight: 17.5 kg
• IP rating: IP20 (indoor use)
• Colour: Jet black (RAL 9005)
• Material: up to 1.5 mm sheet steel, electrostatic powder coating
• Features: lockable safety-glass door with steel frame, removable side walls, pre-cut cable inlets, adjustable 483 mm (19") galvanised profile rails

How to use

Mount the provided wall mounting plate to a suitable load-bearing wall using appropriate fixings for the wall material. Attach the cabinet housing to the mounted plate and secure it. Adjust the depth of the internal 483 mm (19") profile rails as required, install your 19" devices up to the 9U capacity, and route cables through the pre-cut inlets in the roof, floor or back. If additional airflow is needed, install a compatible fan module into the pre-cut roof area. Use the lockable front door to protect equipment and remove side panels for maintenance.

Recommendations

Install on a solid, vertical surface and ensure fixings are rated for the combined weight of the cabinet and installed equipment. Maintain airflow by leaving adequate space around ventilation openings and consider adding a fan module for higher heat loads. For safe operation, observe the 60 kg maximum load and distribute weight evenly across mounting rails.
