Rack a parete Intellinet 714792

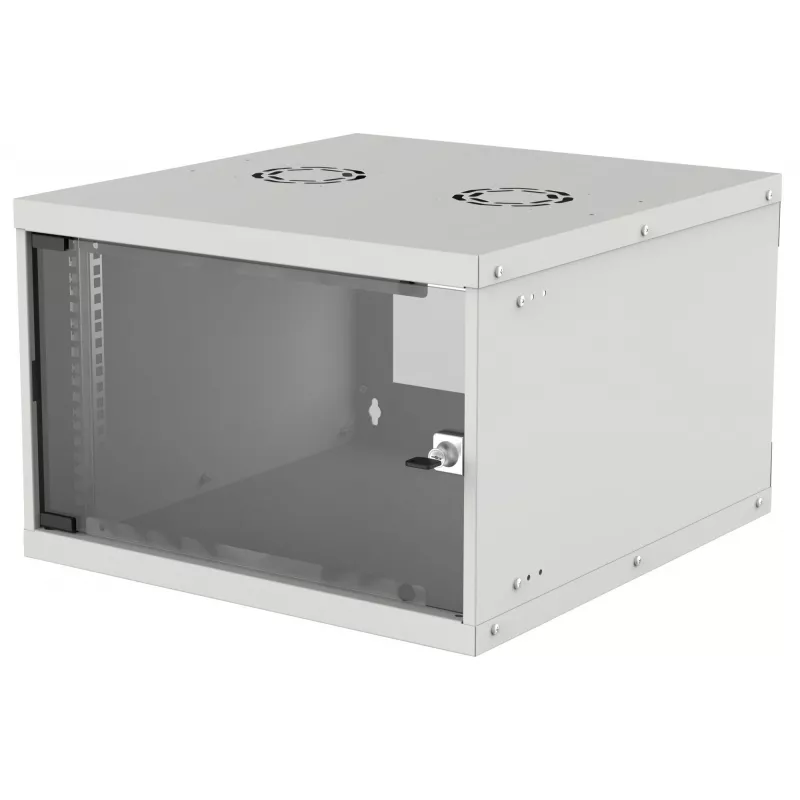

The Intellinet Wall Mount Rack 714792 is a 6U wallmount cabinet designed for organizing and protecting network equipment in limited-space environments. Constructed from cold-rolled, galvanized steel with a reversible tempered-glass door and rated IP20, the grey cabinet provides visibility and basic protection for switches, patch panels and other 19" rack-mounted devices. Usable depth and width support typical network components while the unit is intended for up to 50 kg of equipment. Installation parts are not included; a three-year warranty is provided by the manufacturer.

Advantages

The cabinet combines a compact 6U footprint with a tempered-glass front door for equipment visibility and a reversible hinge for flexible installation. Its cold-rolled, galvanized steel construction delivers basic mechanical protection and an IP20 rating suitable for indoor network rooms. The unit supports standard 19" rack equipment, accepts a usable depth compatible with common devices, and carries a three-year warranty for product reliability.

Suitable for

• Small server rooms and network closets
• Wall-mounted installations where floor space is limited
• Mounting switches, patch panels and network appliances up to 50 kg

Key specifications

• Model: Intellinet Wall Mount Rack 714792
• Rack capacity: 6U, 19"
• Width: 540 mm
• Usable depth: 500–560 mm (manufacturer depth listed as 560 mm)
• Height: 353 mm
• Weight capacity: 50 kg
• Material: cold-rolled, galvanized steel
• Front door: reversible tempered glass
• IP rating: IP20
• Colour: Grey
• Warranty: 3 years

How to use

Mount the cabinet on a load-bearing wall using appropriate fixings (not included) and ensure the wall and fasteners can support the combined weight of the cabinet and installed equipment. Install 19" rack rails and secure network devices within the 6U space, observing the listed usable depth to ensure device fit. Route power and network cabling through the cabinet openings, maintain clearance for ventilation, and follow the manufacturer’s instructions for door hinge orientation if a left- or right-hand opening is required.

Recommendations

For stable operation, distribute equipment weight evenly and avoid exceeding the 50 kg load limit. Use cable management to prevent airflow obstruction and maintain at least the minimum clearance recommended for heat dissipation. Verify that mounting hardware is suitable for the wall type and check compatibility of deeper devices against the cabinet's usable depth.
