Rack a parete Lanview RWM20U45BL 20U nero IP20

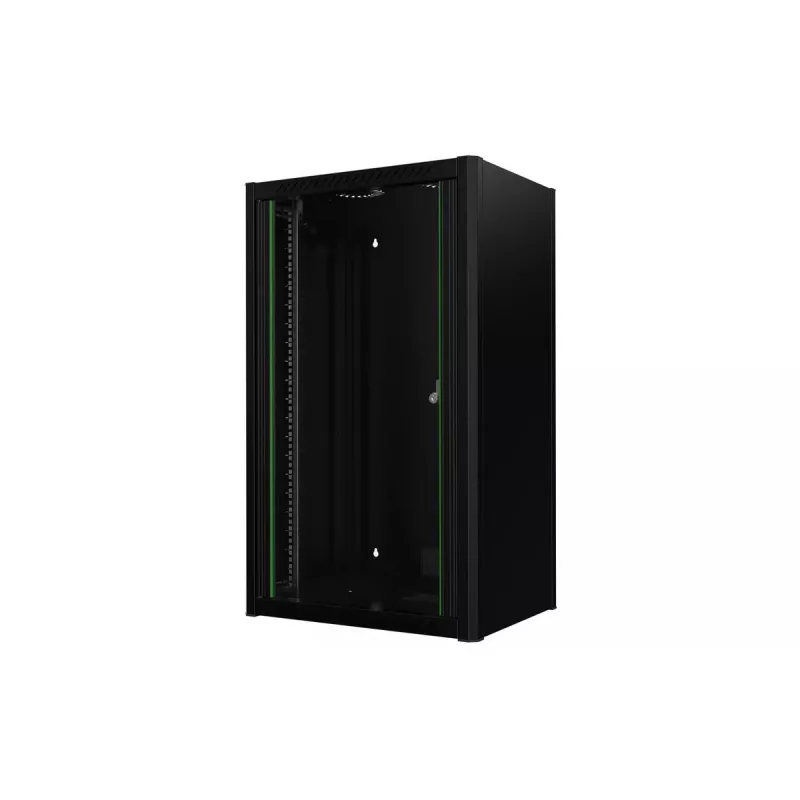

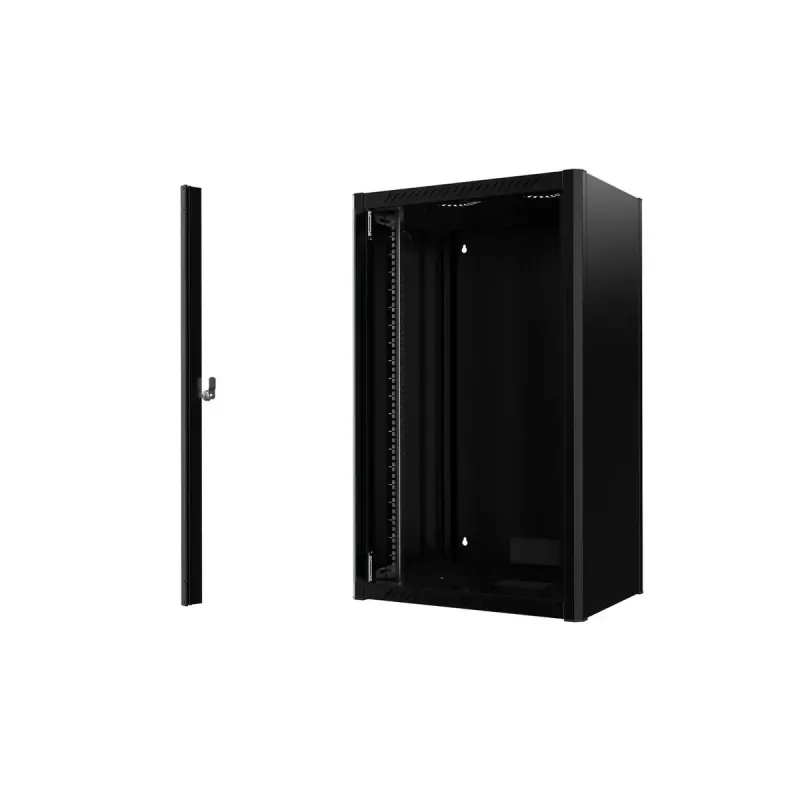

The Lanview RWM20U45BL is a 20U wall-mounted network rack with IP20 protection in a black finish. It measures 600 x 450 x 1000 mm and weighs 33.3 kg. The cabinet has a 4 mm antistatic tempered glass front door with smoothed edges, an extruded aluminum frame and high fracture resistance. Side colored strips provide a decorative appearance. The rack is delivered with one set of two device installation rails already mounted and offers cable entry from top, bottom and rear via 145 x 70 mm openings. Movable rubber-edged cable entry modules with a 0–50 mm sliding compression system secure incoming cables and reduce dust ingress. Side doors are fixed; access is from the front for wall mounting and from front and rear for free-standing installations. Optional pinion feet or a caster group can be used in free-standing configurations. Active ventilation can be implemented by attaching an optional two-fan ventilation module to the upper chassis opening; without the fan module the openings provide passive ventilation.

Advantages

The Lanview RWM20U45BL combines IP20-rated protection with a compact 20U capacity, delivering secure equipment mounting in a space-saving wall-mounted design. Tempered antistatic glass and an aluminum frame provide strength and safe viewing of installed equipment, while pre-mounted device rails allow depth adjustment for different devices. Multiple cable entry points and rubber-edged, adjustable cable modules simplify cabling and help limit dust ingress. The option to fit active fans or use passive airflow gives flexible thermal management, and optional feet or castors enable conversion to free-standing use.

Suitable for

• Mounting network switches, patch panels and routers in offices or server rooms
• Organizing small to medium-sized rack equipment where floor space is limited
• Wall-mounted installations requiring IP20 protection and visible front access

Key specifications

• Rack capacity: 20U
• IP rating: IP20
• Dimensions (W x D x H): 600 x 450 x 1000 mm
• Weight: 33.3 kg
• Front door: 4 mm antistatic tempered glass with extruded aluminum frame
• Cable entry: 145 x 70 mm openings at top, bottom and rear; adjustable rubber-edged cable entry module (0–50 mm)
• Delivery: 1 set with 2 pre-mounted device installation rails
• Color: Black

How to use

Prepare a suitable wall surface and fix the wall-mounted rack according to local installation standards and the cabinet weight. Install equipment onto the pre-mounted device rails and adjust rail depth as required. Route cables through the 145 x 70 mm openings at the top, bottom or rear; use the rubber-edged adjustable cable module to compress and seal incoming cables. If active ventilation is required, attach the optional two-fan ventilation module to the upper chassis opening. For free-standing use, fit optional pinion feet or the caster group and allow access from front and rear.

Recommendations

Install the cabinet on a load-bearing wall using appropriate anchors for the 33.3 kg weight plus installed equipment; ensure adequate clearance for ventilation and service access. Use cable management accessories and grounding according to site safety regulations and the manufacturer's instructions.
