Rack a pavimento LANBERG FF01-6642-23BL 42U 600x600 mm 1200 kg IP20 nero

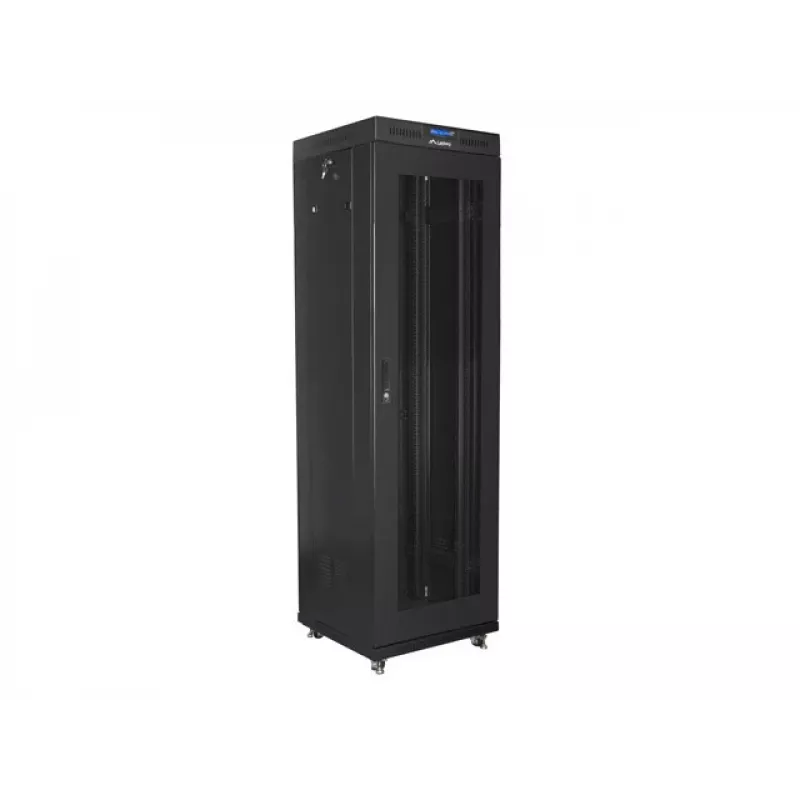

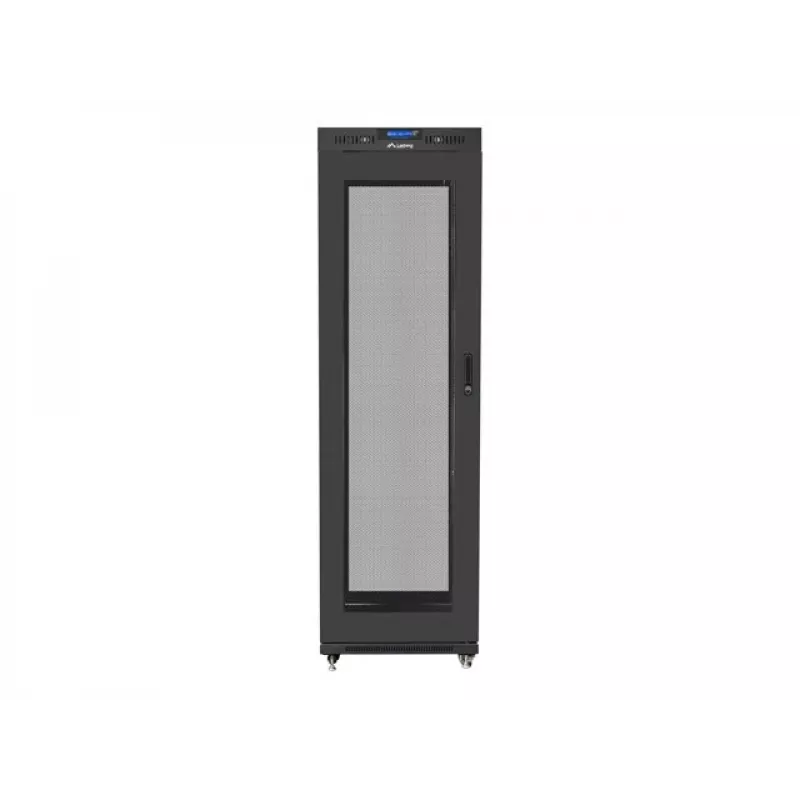

Description: Standing rack 19 42U 600x600 mm, black The Lanberg FF01-6642-23BL single-section standing cabinet is the ideal solution for professional installers who build networks, carry out cable assembly and install 19 equipment. This reliable rack cabinet offers a maximum total load capacity increased from 800kg to 1200kg, ensuring the robustness and safety of your installations! Our rack cabinet is specifically designed for data centres that require a large amount of rack space for equipment. It is perfect for extensive networks and server rooms, whether in small, medium or large companies and corporations. In addition, it is the perfect solution for low-current installations such as cable TV networks, alarm, fire, access control and CCTV and IP monitoring systems. The cabinet's construction is made of high-quality rolled steel, ensuring excellent design and build quality. The cabinet has depth-adjustable vertical mounting rails to accommodate different types of equipment. The cabinet is equipped with front and rear perforated doors. Right or left-hand installation possible. The side panels are removable (with locks included) and the rear door is made of solid steel with lock. The cabinet is also equipped with a front-mounted LCD display with thermostat function, which displays basic information such as the temperature inside the cabinet, the current time and the current status of the fans. The Lanberg cabinet also features lockable top and bottom panels with plugs included for convenient cable entry and concealment. This keeps your installation aesthetically pleasing and well organised, minimising cable clutter. In addition, the cabinet is equipped with earthing accessories, including cable and caps. The earthing pins are located in three parts of the cabinet - the frame, front door and rear door, providing comprehensive earthing for your installations. Also included is a ventilation panel with 4 230V fans, accessories for fixing the support rails, M6 screws, entrance panel caps, earthing kit, castors and feet. For ease of transport, the cabinet is packaged in three flat packs for self-assembly. Choose a Lanberg rack cabinet to provide a reliable and professional installation solution for your projects! | Type: Floor standing | Height: 42U | Width: 600 | LCD display: Yes | Protection class: IP20 | Front door type: Perforated | Stuff: Steel | Load (max): 1200 | Accessories included: Mounting accessories Front and rear door lock 2 x Side panel locks 20 x M6 screw 4 x Circle 4 x Foot Grounding kit | Color: RAL 9004 | Color: Black | Dimensions: 600 x 600 x 2127.5 mm Height (top panel - bottom panel): 2018.5 mm Height (top panel - ground): 2121.5 mm Height (top panel - floor including screws): 2127.5 mm Internal spacing between rack rails: 450 mm Spacing width between rack rail holes: 465 mm External width between rack rails: 500 mm | Weight: 92 | Other features: LCD display Door type: front - perforated, rear - perforated Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI Cable openings: top, bottom (adjustable)

How to use

Place the freestanding rack on a level, solid surface inside a climate-controlled indoor environment. Install 19" equipment using standard mounting rails and ensure load is distributed evenly across the vertical posts. Secure heavy items at lower U positions to maintain stability. Route power and network cabling through available openings and cable management points to maintain airflow and accessibility. Verify that the rack’s IP20 rating and the room environment meet site safety and ventilation requirements before powering installed equipment.

Recommendations

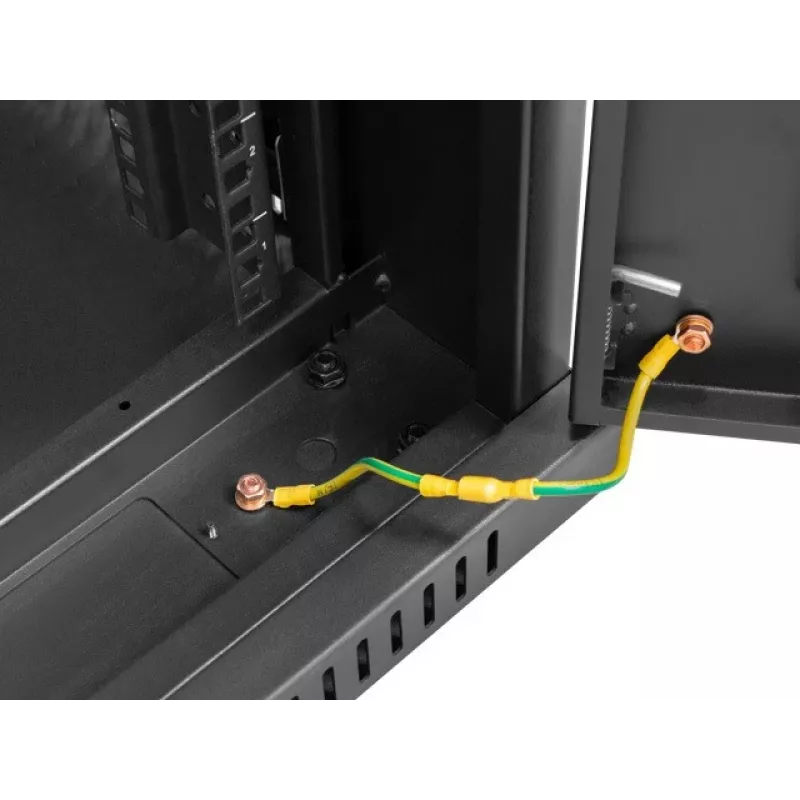

For stable, long-term operation, mount heavier devices lower in the rack, leave clearance for front and rear airflow, and avoid overloading beyond the specified 1200 kg limit. Use appropriate grounding and follow local installation standards when integrating servers, switches and PDUs into the rack.
