Rack a sé stante EFB Elektronik PRO-4780TS.P1P2

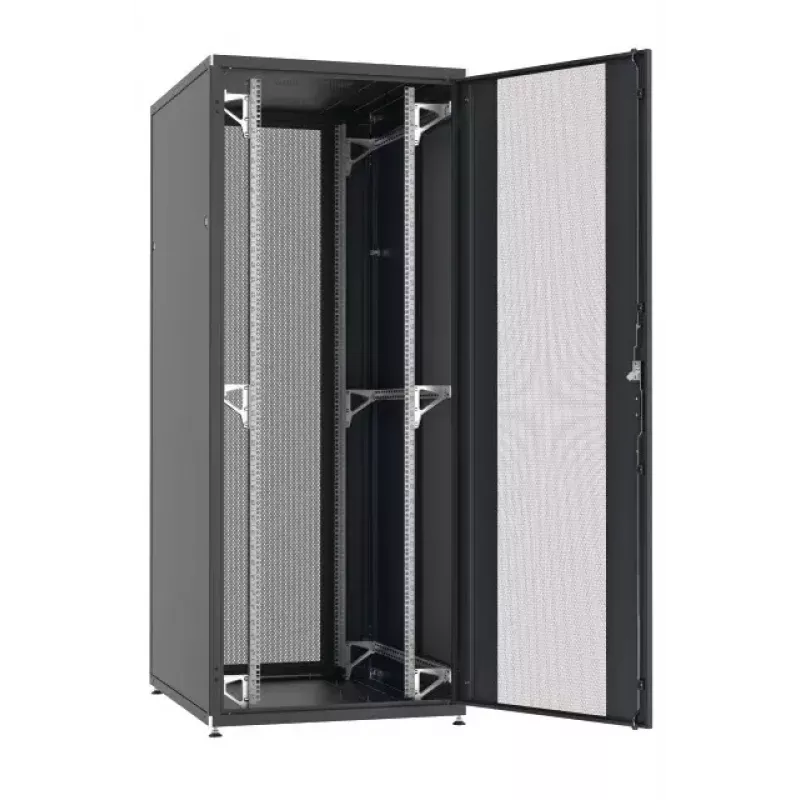

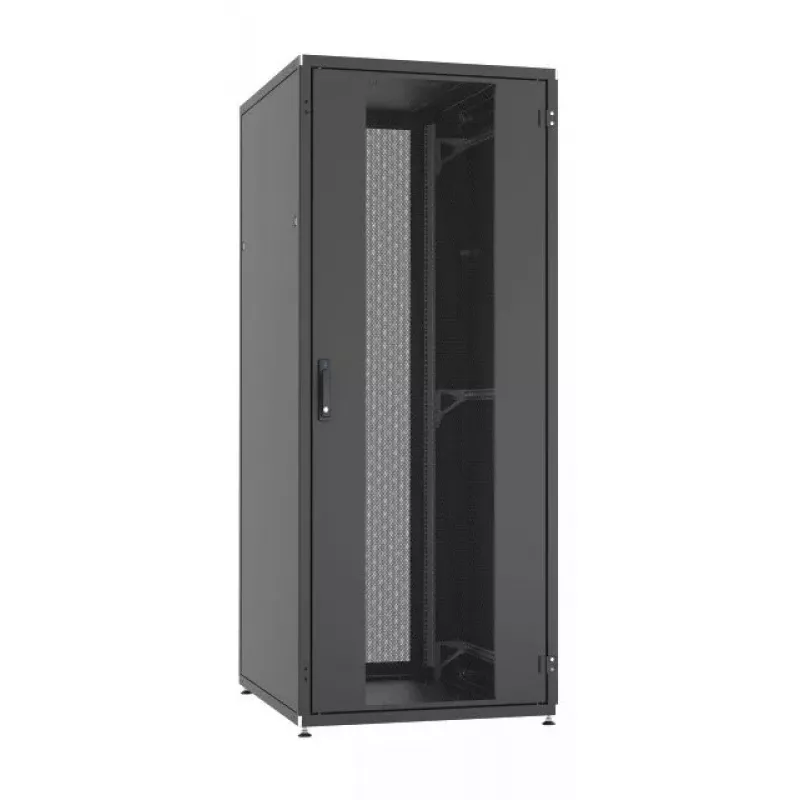

The EFB Elektronik PRO-4780TS.P1P2 is a freestanding 47U server rack designed for indoor network and server room installations. With a width of 800 mm, depth of 1000 mm and height of 2186 mm, this black enclosure provides a standardized 19" mounting frame and an IP20 protection rating suitable for controlled indoor environments. The rack supports a maximum static weight of 1360 kg, offering a stable solution for housing servers, switches, patch panels and other rack-mounted equipment in data centres, telecommunications rooms and technical cabinets.

Advantages

The PRO-4780TS.P1P2 combines a high load capacity with a space-efficient footprint, allowing installation of a large amount of equipment while occupying moderate floor area. Its standardized 19" mounting structure and 47U height ensure compatibility with typical rack-mounted devices and accessories. The IP20 rating indicates protection against solid objects larger than 12 mm, appropriate for indoor technical spaces. A black finish provides a neutral appearance that integrates into professional environments.

Suitable for

• Server rooms and data centres
• Network and telecommunication cabinets
• Equipment housing for enterprise IT infrastructure
• Patch panels, switches and cable management systems
• On-premises virtualization and storage installations

Key specifications

• Rack capacity: 47U
• Mounting standard: 19"
• Width: 800 mm
• Depth: 1000 mm
• Height: 2186 mm
• Maximum load capacity: 1360 kg (static)
• Protection rating: IP20 (indoor use)
• Product colour: Black

How to use

Position the freestanding rack on a level, stable floor surface and ensure adequate clearance for airflow and maintenance access. Install rack-mounted equipment on the 19" rails starting from the bottom to maintain stability and distribute weight evenly. Secure devices using compatible mounting hardware and follow manufacturer instructions for individual components. Connect power distribution units and cable management accessories as required, and verify that the total installed weight does not exceed the specified maximum load capacity.

Recommendations

For safe and reliable operation, use the rack in indoor environments that meet IP20 conditions, avoid exposure to moisture and dust beyond the enclosure rating, and follow best practices for cable management and ventilation. When populating the rack, place heavier equipment at lower positions, check load distribution, and allow sufficient space for cooling and access to serviceable components.
