Rack autoportante EFB Elektronik OFF-1566TS.V1RW

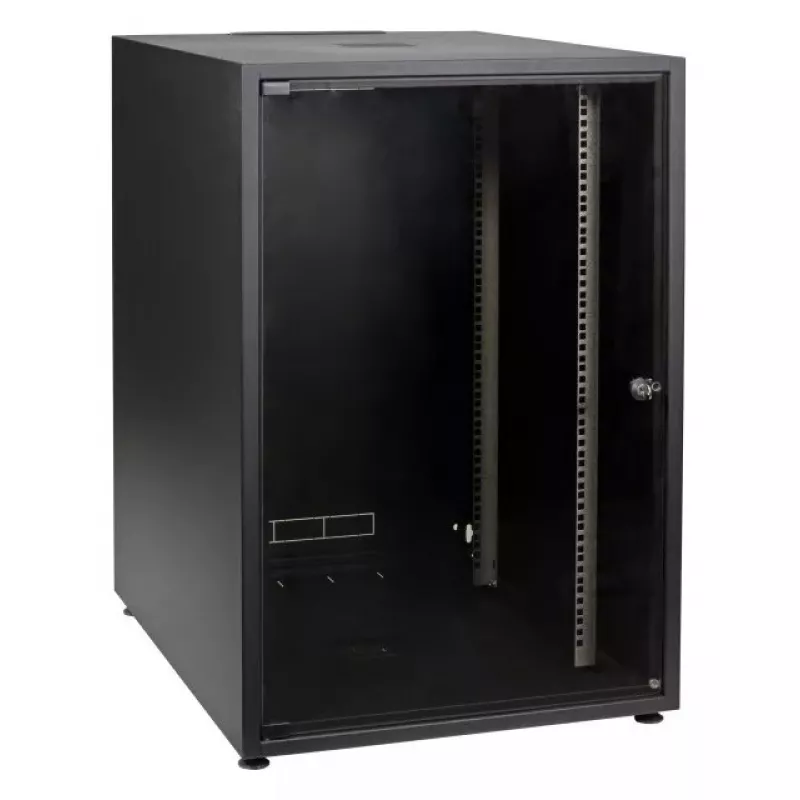

The EFB Elektronik OFF-1566TS.V1RW is a 19" freestanding rack cabinet with a steel sheet housing and self-supporting construction. It comes completely pre-assembled and is self-ventilated. The cabinet includes four galvanised 19" profiles (two front, two rear) with step-less depth adjustment, a single-piece 4 mm thick full-glass front door with a 1-point latch lock, and reversible door stop (left or right). The bottom and rear panels feature pre-punched openings for cable entry. The cabinet has an IP20 rating and a black finish suitable for network and server equipment storage.

Advantages

The cabinet offers a compact, ready-to-install solution for mounting 19" devices with galvanised adjustable profiles for flexible equipment positioning. The full-glass front door provides visual access while the 1-point latch secures the enclosure. Pre-punched cable entries simplify cable routing and installation. Self-ventilation and steel sheet construction provide basic protection for network components in indoor environments.

Suitable for

• Small network closets and IT cabinets
• Mounting 19" switches, patch panels, and small servers
• Office or telecom equipment storage with limited floor space

Key specifications

• Size: 19"
• Width: 600 mm
• Depth: 600 mm
• Height: 737 mm (15U)
• Rack capacity: 1.5U
• Material: Steel sheet housing

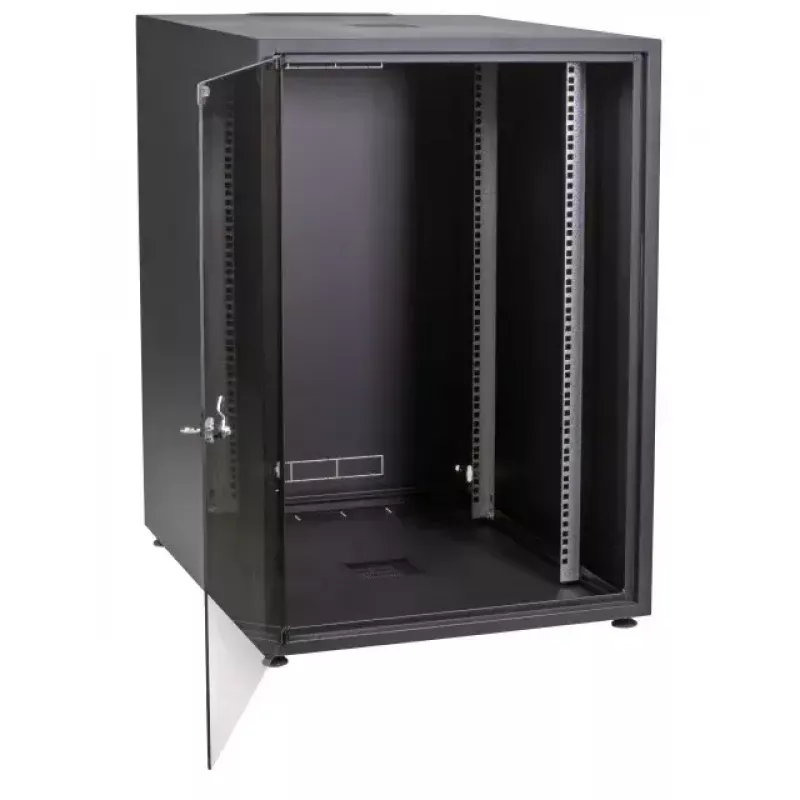

• Front door: Single-piece full glass, 4 mm thick, 1-point latch

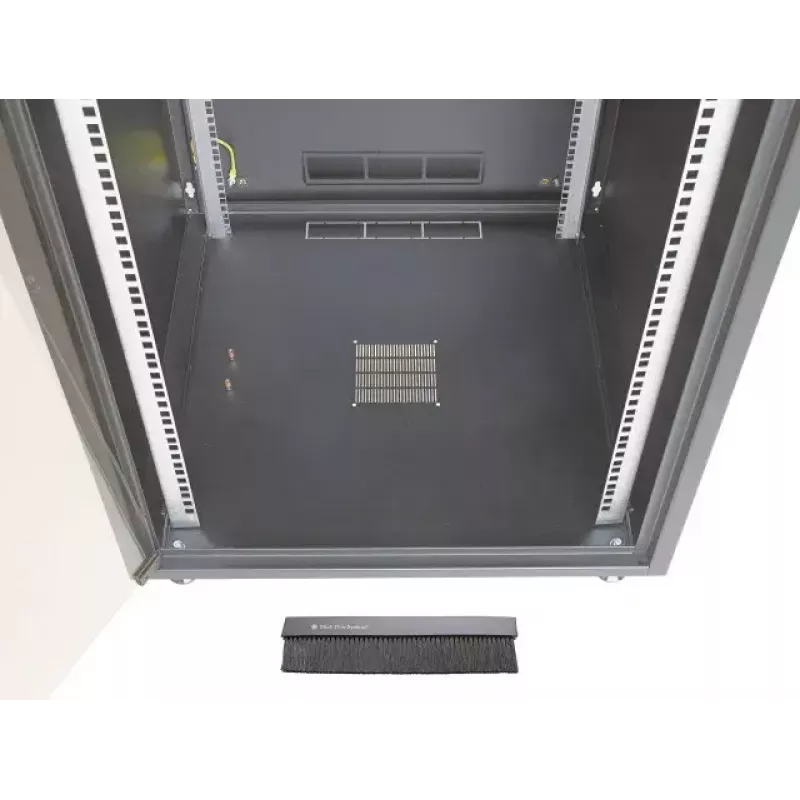

• Profiles: 4 x 19" galvanised, step-less depth-adjustable (2 front, 2 rear)

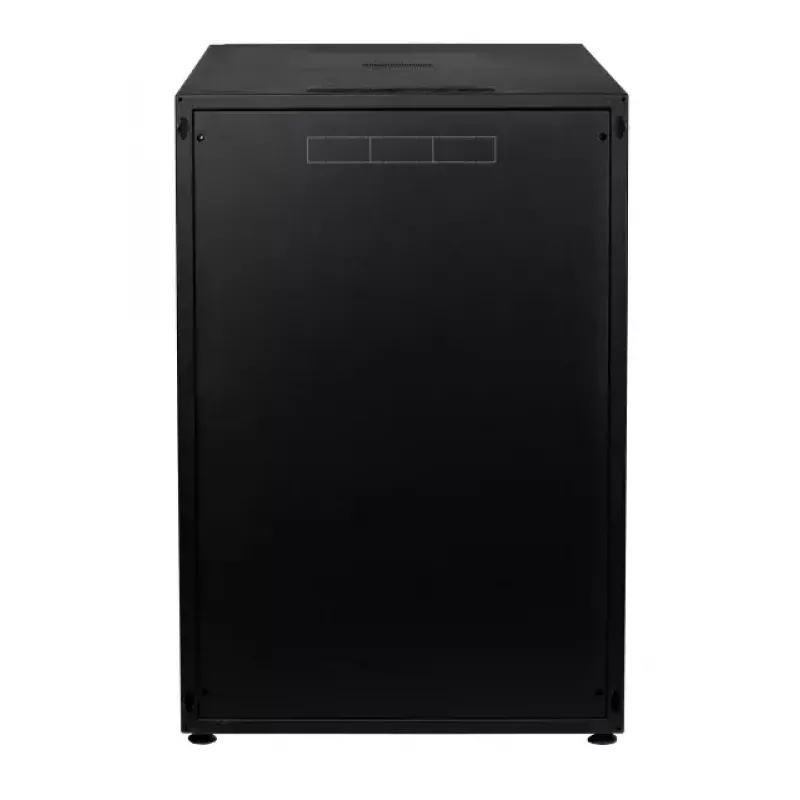

• Cable entry: Pre-punched openings at bottom and rear
• Protection rating: IP20
• Colour: Black
• Maximum load: 38 kg

How to use

Place the freestanding rack on a level indoor surface and position it where ventilation is adequate. Mount 19" equipment to the adjustable front and rear profiles, adjusting depth as required to accommodate different device depths. Route power and network cables through the pre-punched openings at the bottom or rear, and secure the front glass door using the 1-point latch; change the door stop to left or right if needed. Observe the maximum load rating and distribute equipment weight evenly across the profiles.

Recommendations

Use the cabinet indoors in environments matching IP20 protection (dry, dust-limited). Do not exceed the specified maximum load of 38 kg. For improved airflow when densely populated, consider additional active ventilation or monitor internal temperatures. Handle the glass front door carefully during installation.
