Rack autoportante Extralink EX.14411 32U nero capacità 600kg

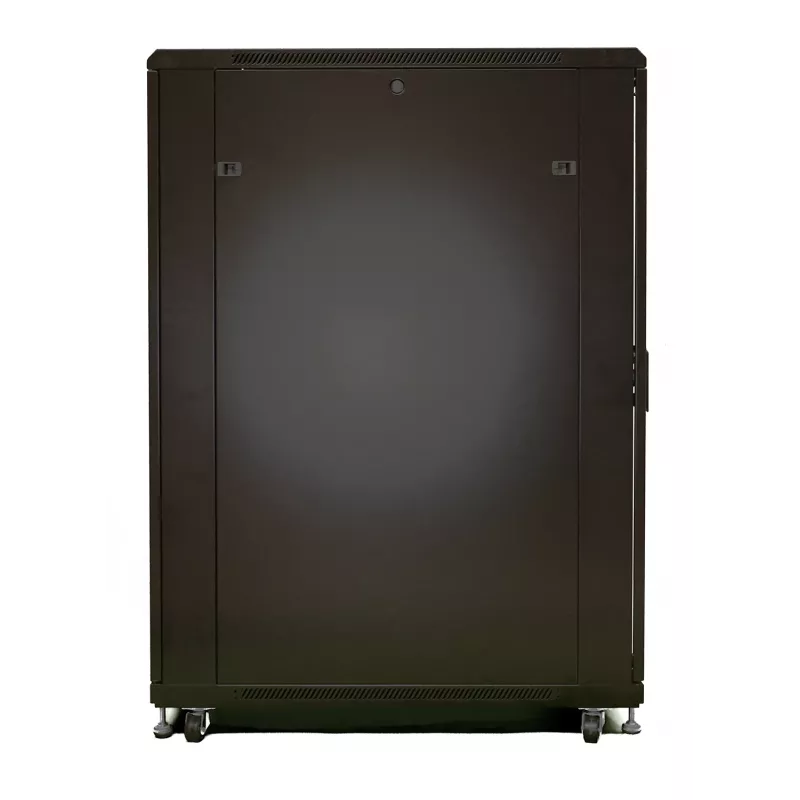

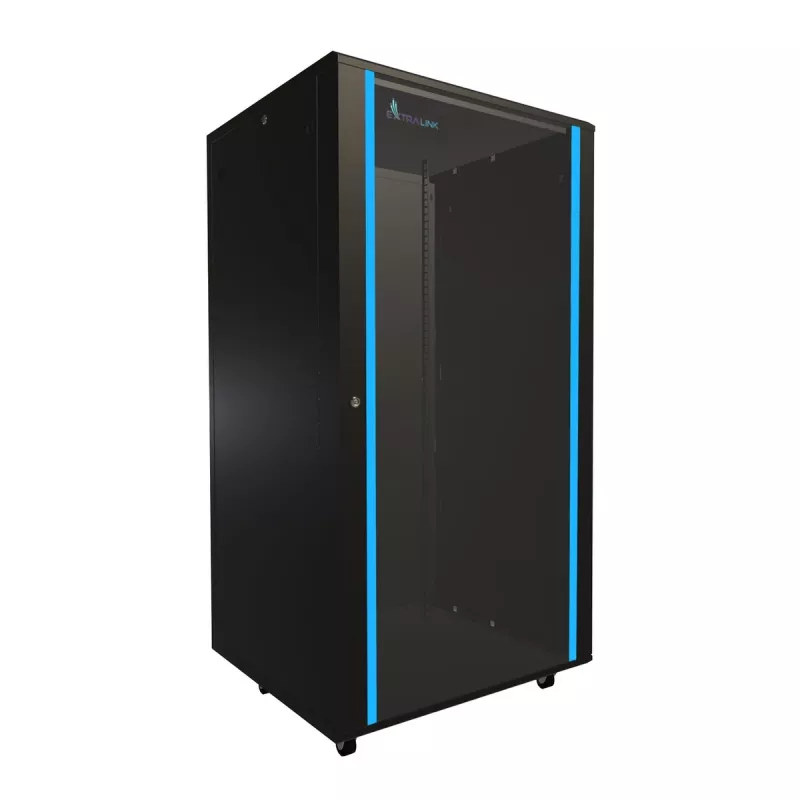

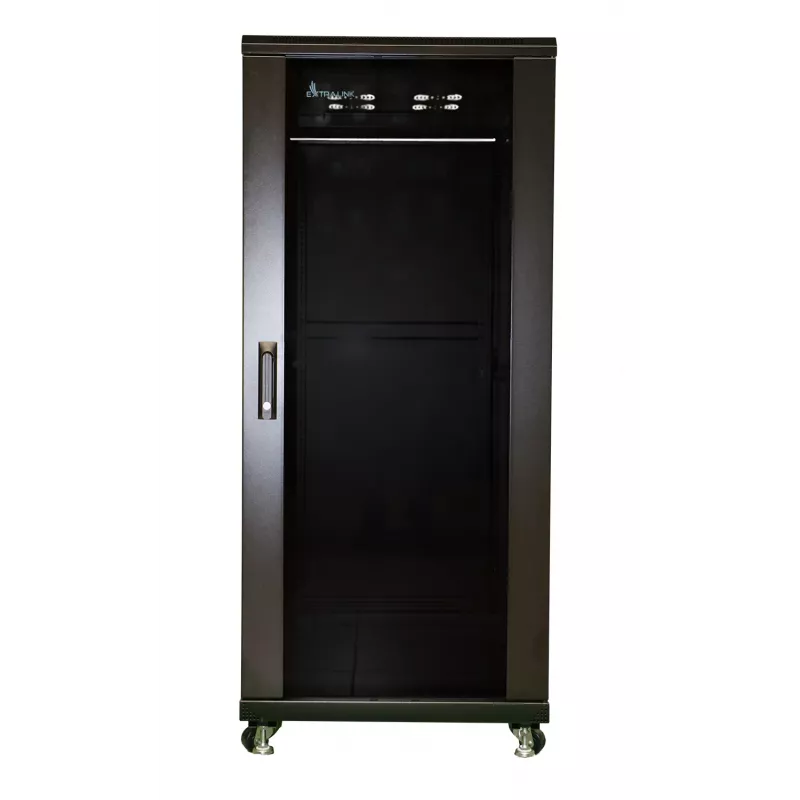

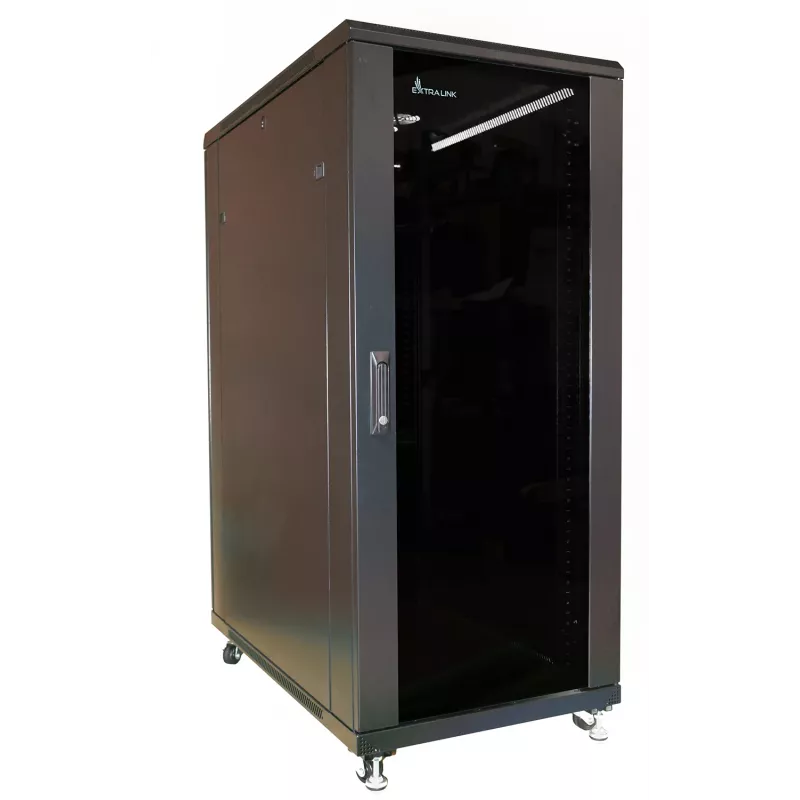

The Extralink EX.14411 freestanding rack is a 32U cabinet designed for offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a front door fitted with tempered glass, the cabinet supports secure mounting of network and server equipment while providing visible access to installed devices.

Advantages

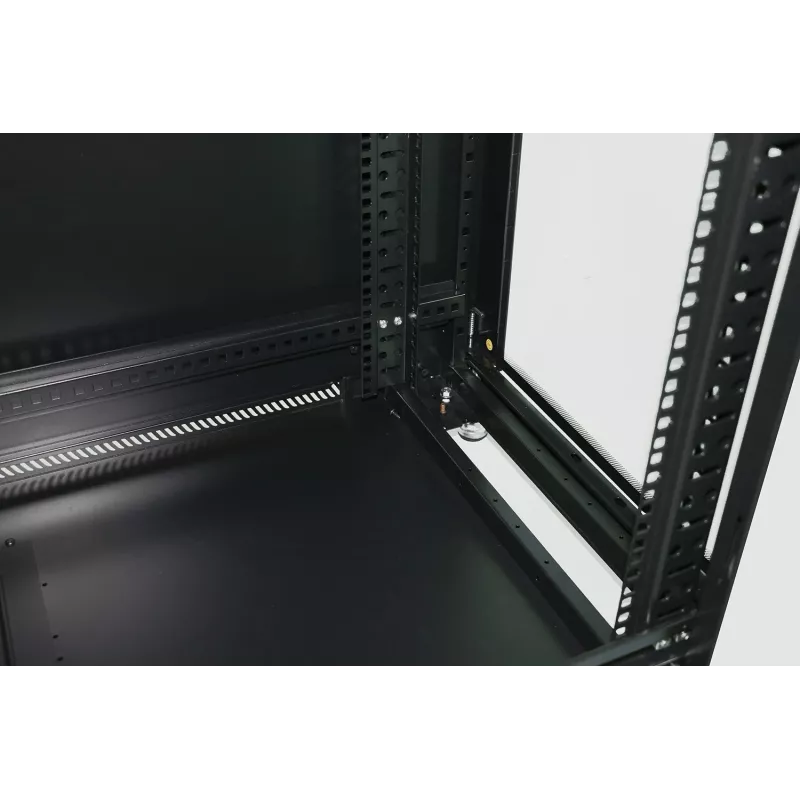

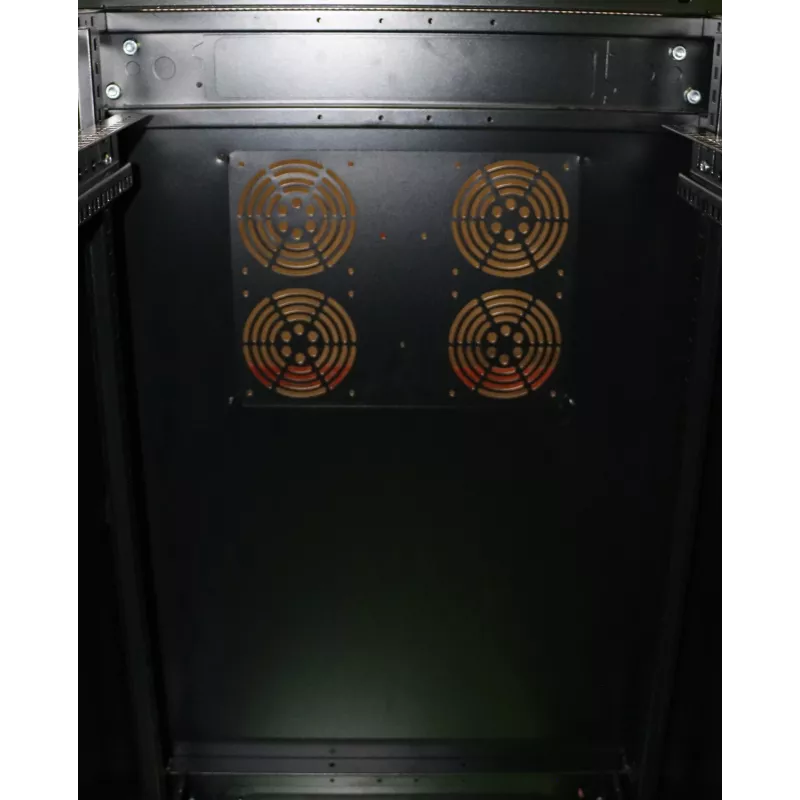

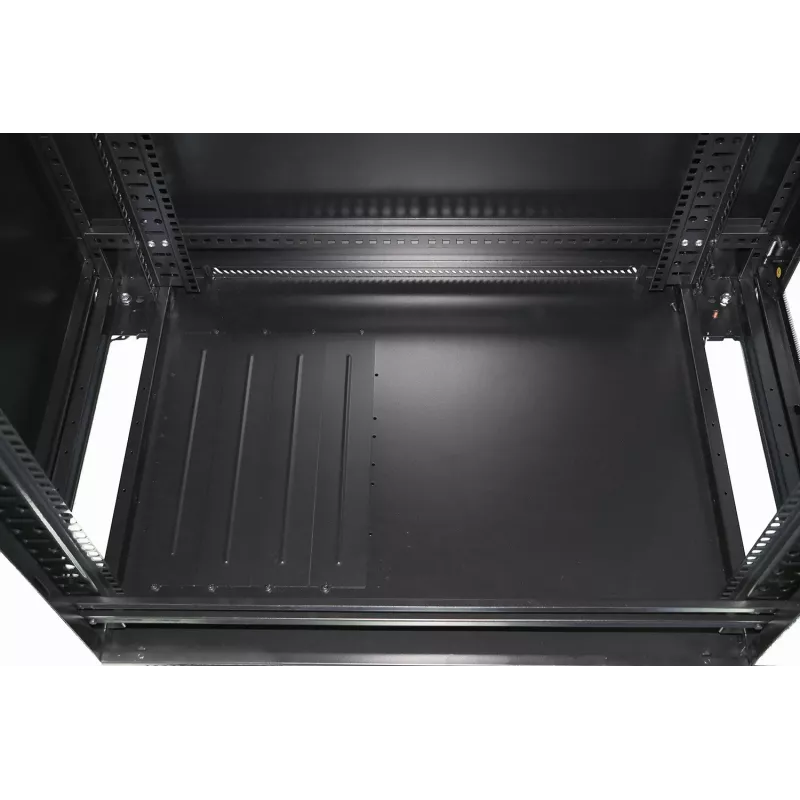

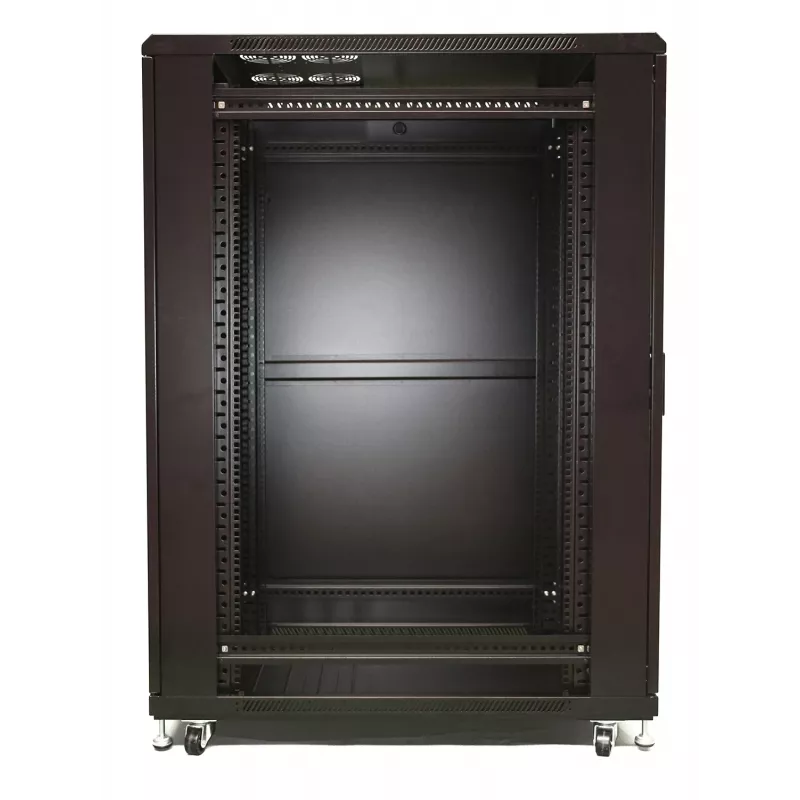

The rack offers clearly marked vertical rails up to 32U for straightforward device placement and a total cabinet height of 1540 mm. Side panels are removable with snap fasteners for easy access during installation and maintenance. The lower panel includes four cable entry points for organized cable routing, and the ceiling provides four fan mounting positions to improve airflow. Locks and keys are included for physical security.

Suitable for

• Office network closets
• Small to medium server rooms
• CCTV and surveillance control rooms
• IT equipment cabinets for structured cabling

Key specifications

• Rack capacity: 32U
• Height: 1540 mm (total cabinet height)
• Width: 800 mm
• Depth: 800 mm
• Maximum load capacity: 600 kg
• Colour: Black
• Front door: tempered glass, reversible opening
• Features: marked vertical rails, removable side panels, cable entry points, fan mounting positions, locks and keys

How to use

Position the freestanding rack on a level surface and adjust the feet or attach castor wheels if mobility is required. Install equipment on the 32U marked vertical rails using appropriate rack screws and cage nuts. Route power and data cables through the lower cable entry points to minimize strain and tangling. If necessary, mount fans in the ceiling positions to improve cooling and secure the front door with the supplied key to restrict access.

Recommendations

For stable operation, distribute heavy equipment evenly and stay within the 600 kg maximum load. Ensure adequate ventilation by leaving space around the cabinet and, when deploying multiple high-heat devices, install fans in the ceiling openings to maintain appropriate operating temperatures.
