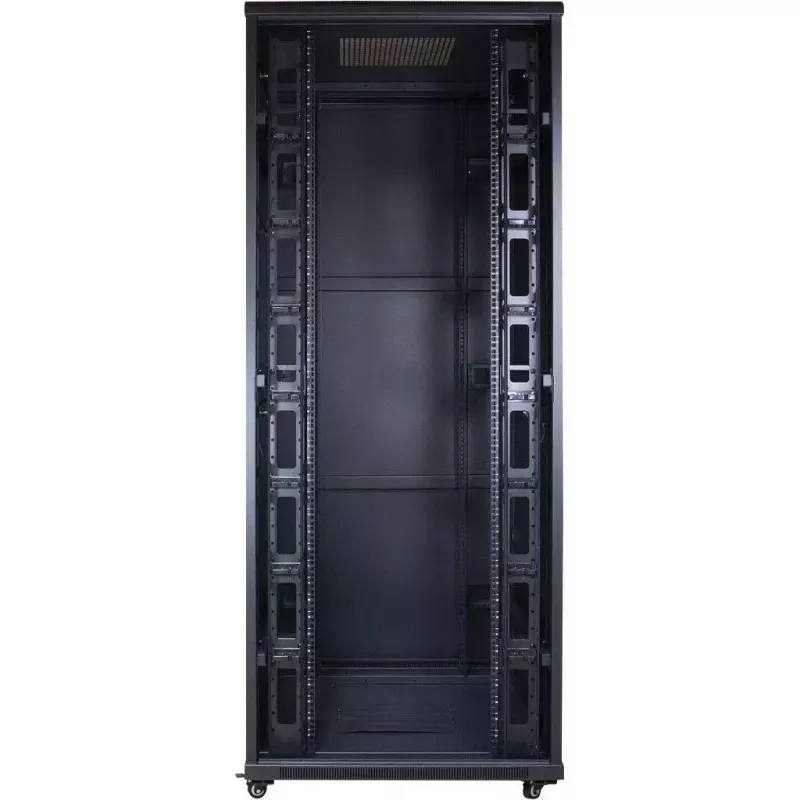

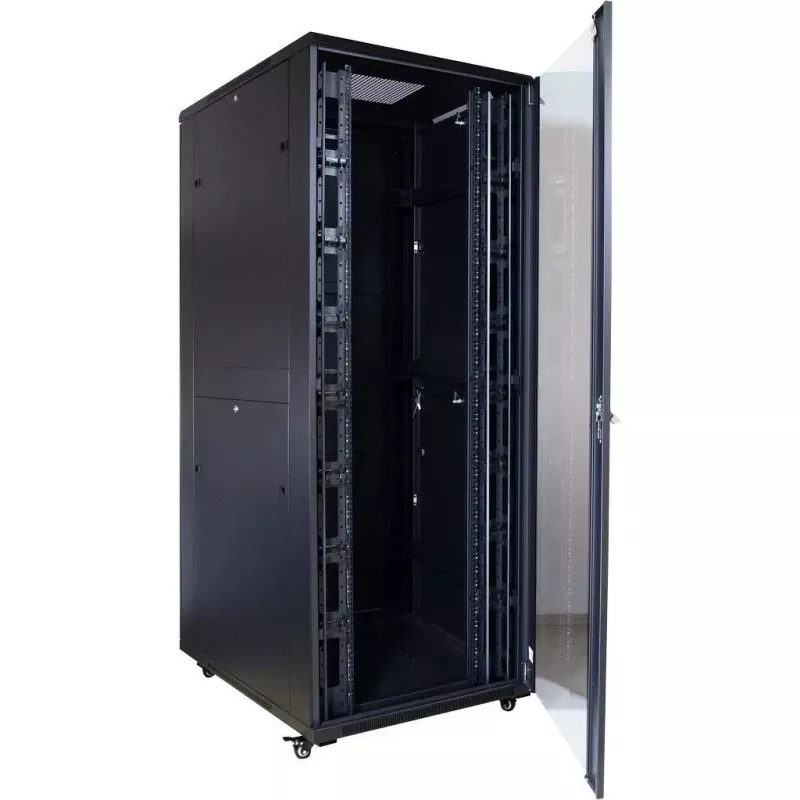

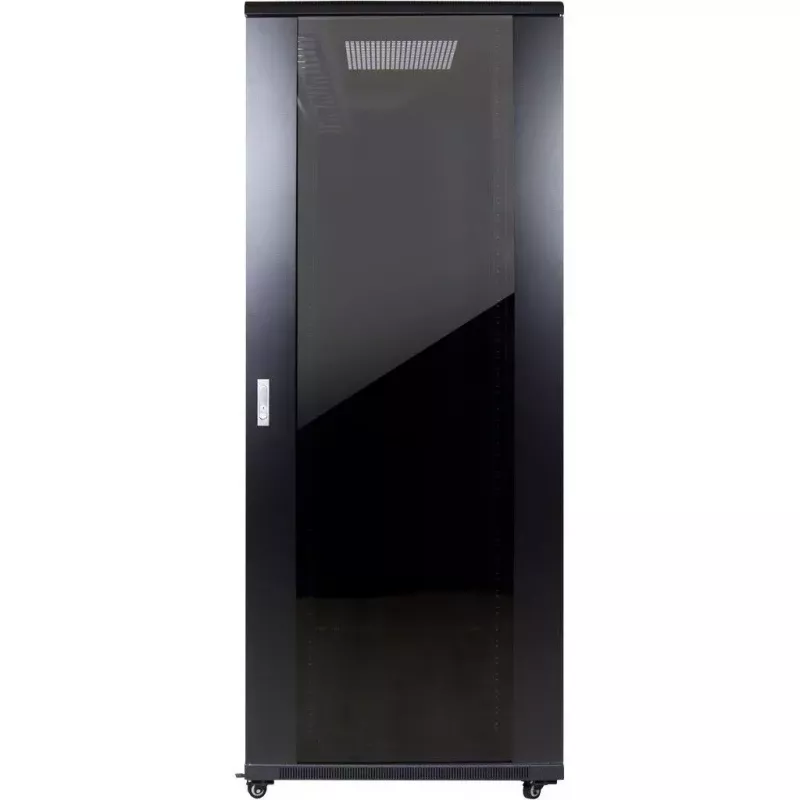

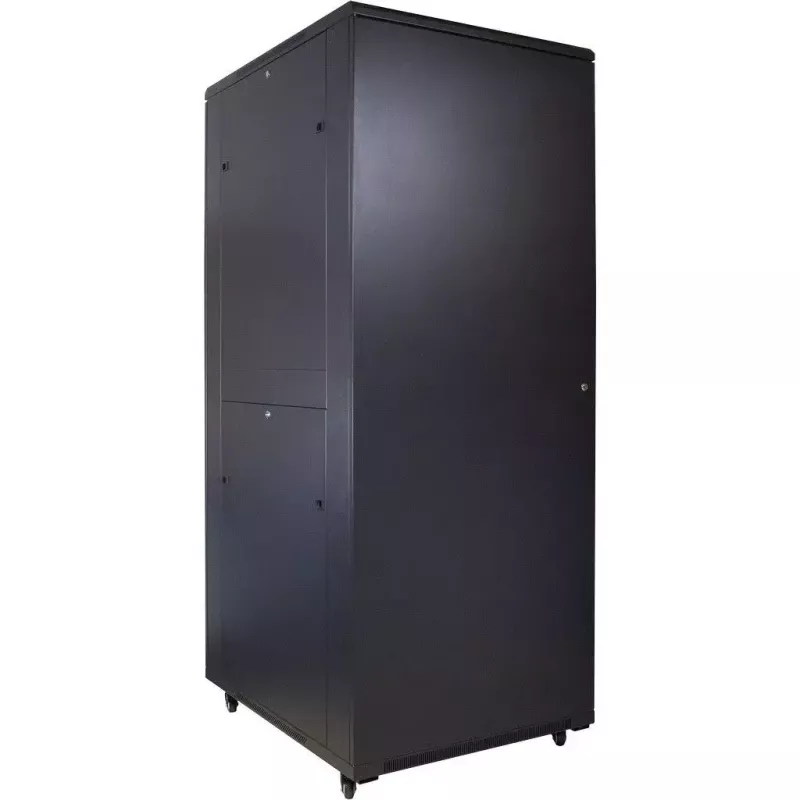

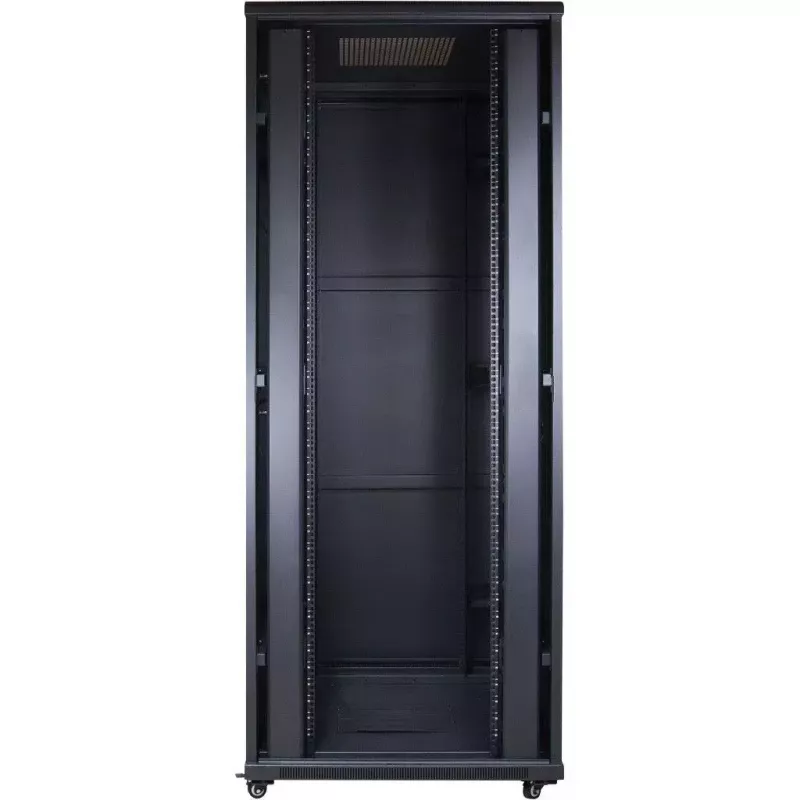

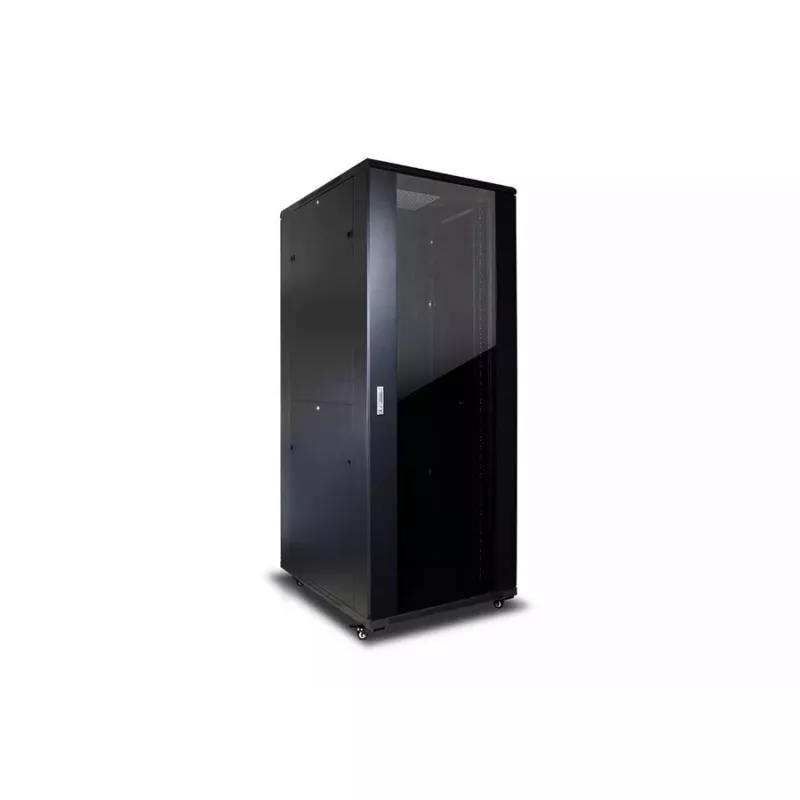

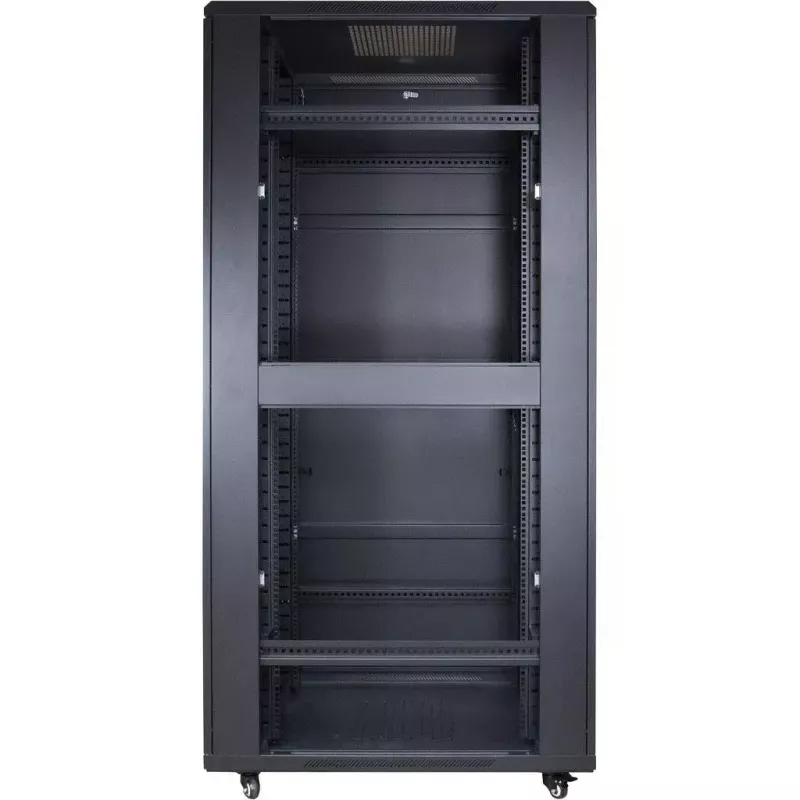

Rack autoportante Inter-Tech 88887257 42U Nero

The Inter-Tech 88887257 freestanding rack offers 42U of mounting height and a depth of 1000 mm, providing space for a wide range of active and passive server and network components. Constructed with steel panels 1.25–1.50 mm thick and finished in RAL 9005 black powder coat, the cabinet supports a total load up to 800 kg and meets IP20 protection class. Access is via an integrated tempered glass front door, a rear door and split removable side panels; cable inlets are provided in the top cover and the floor for tidy cable routing.

Advantages

The rack combines a large 42U capacity with robust construction capable of carrying up to 800 kg. Its 1000 mm depth accommodates deep equipment and cable management, while the tempered glass front door and removable side panels enable easy access for installation and maintenance. The IP20 rating is suitable for indoor server rooms and network closets, and optional accessories such as a lid-mounted fan element, rollers or leveling feet extend installation flexibility.

Suitable for

• Server rooms and data closets
• Network equipment and patch panels
• Rack-mounted UPS and storage systems
• Telecommunications and monitoring hardware

Key specifications

• Model: Inter-Tech 88887257
• Rack capacity: 42U
• Depth: 1000 mm
• Width: 800 mm
• Material thickness: 1.25–1.50 mm
• Maximum load capacity: 800 kg
• Protection class: IP20
• Colour: Black (RAL 9005)

How to use

Install the cabinet on a level surface or fit the optional rollers or leveling feet as required. Mount rack equipment using the standard 19-inch rails and secure devices according to their manufacturer instructions. Route power and data cables through the top and bottom cable inlets to maintain an organized layout. If additional ventilation is needed, install the optional fan element in the lid and ensure unobstructed airflow paths.

Recommendations

To maintain performance and safety, distribute equipment weight evenly across the rack, secure heavy items at lower U positions, and follow grounding and cable management best practices. Use the removable side panels and front tempered glass door for routine inspection and maintenance.
