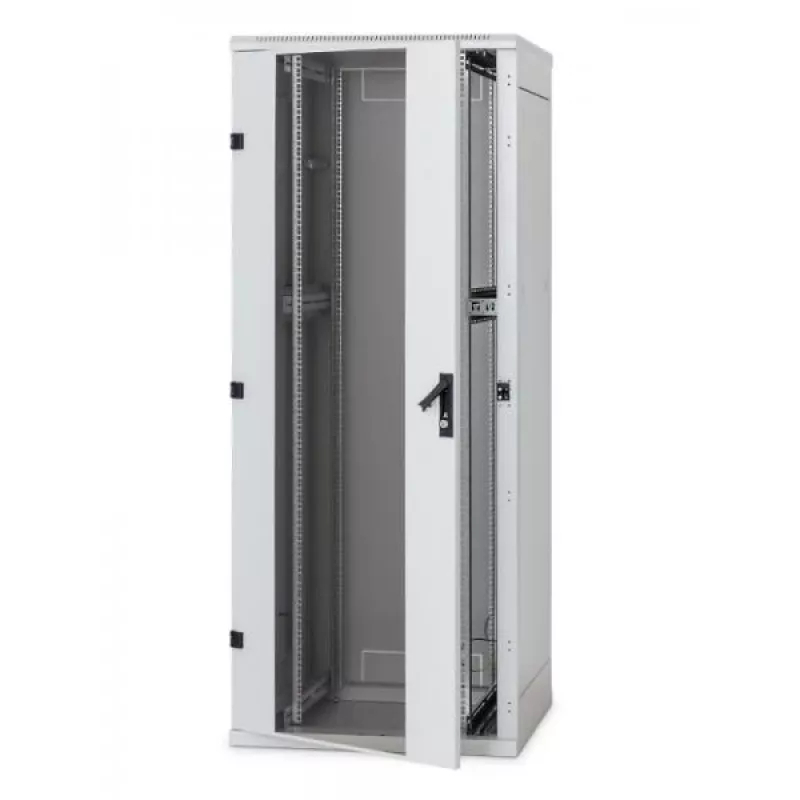

Rack autoportante Triton RMA-22-A61-CAX-N1 22U grigio 800 kg

The Triton RMA-22-A61-CAX-N1 is a freestanding network cabinet with 22U of rack capacity, a maximum load rating of 800 kg and an IP20 rating for indoor use. Designed for data and telecommunication applications, the cabinet features a robust welded frame, adjustable 19" vertical rails, removable side panels and rear cover, and integrated cable entry openings. With a width of 600 mm, depth of 1000 mm, height of 1080 mm and a net weight of 58.9 kg, this grey cabinet offers practical options for device mounting, cable routing and active cooling.

Advantages

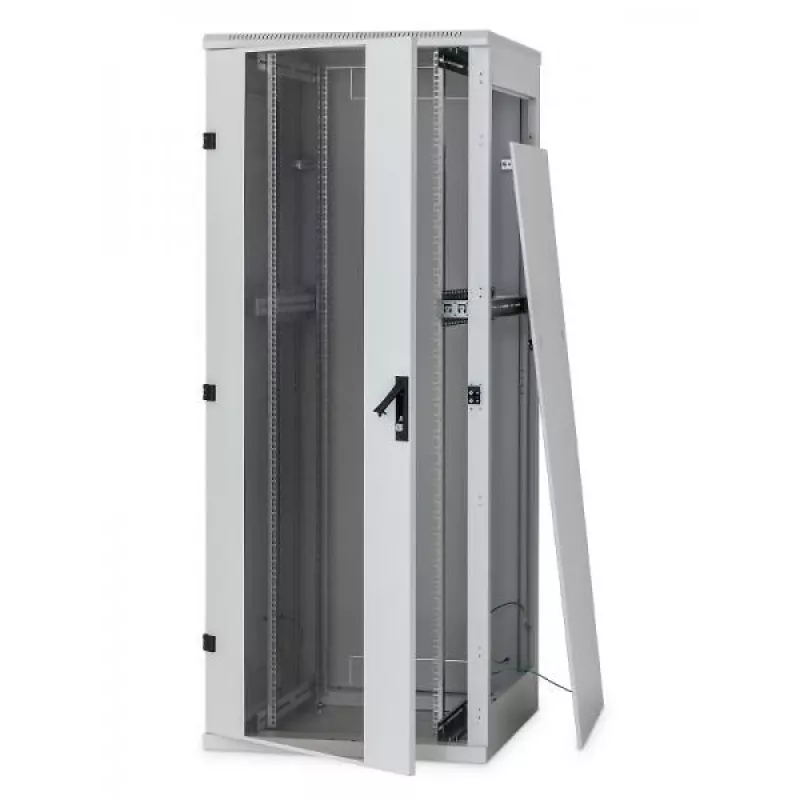

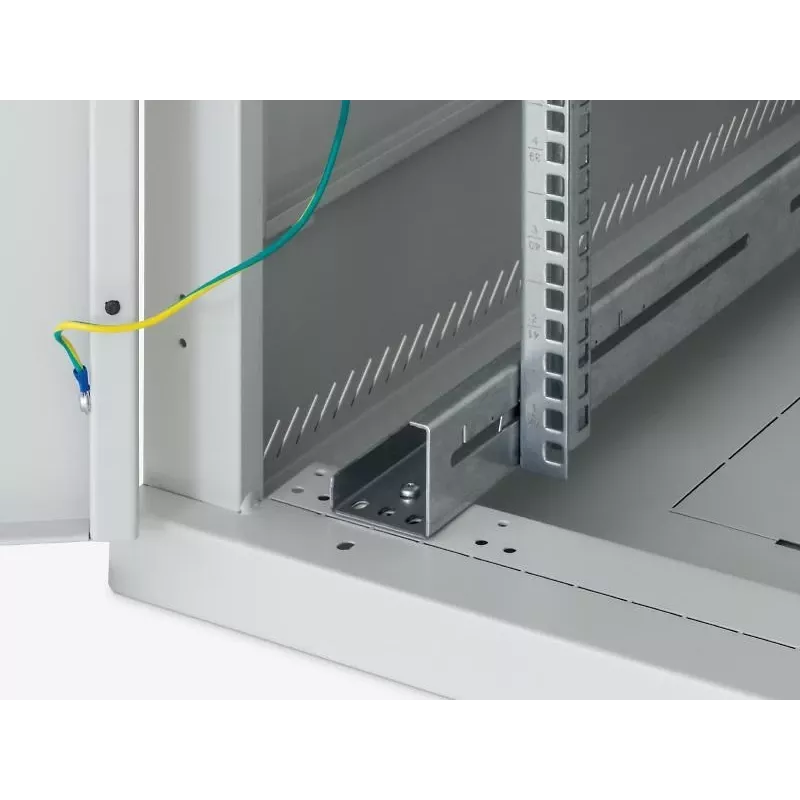

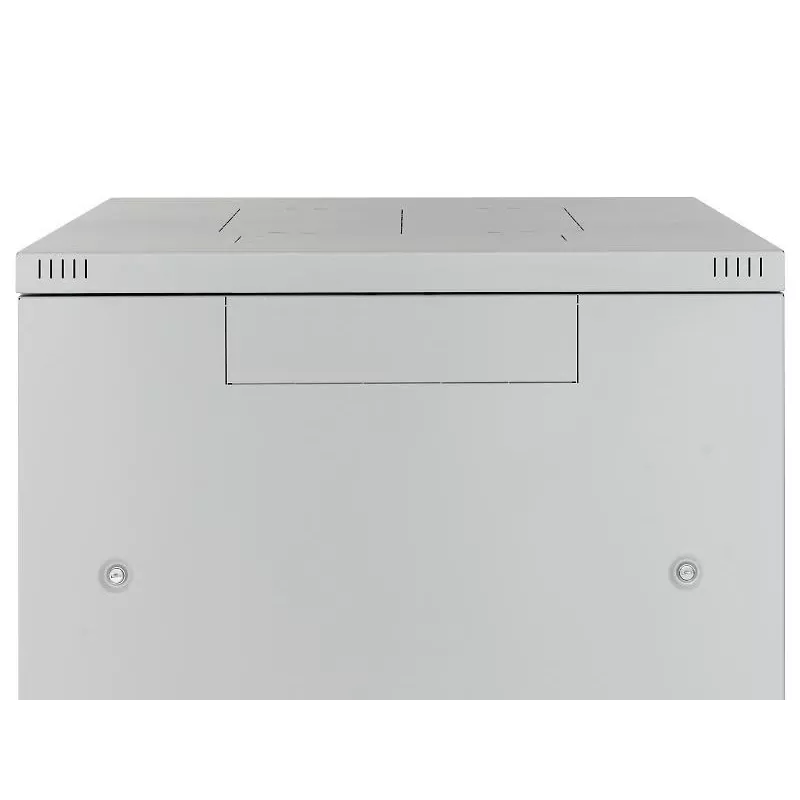

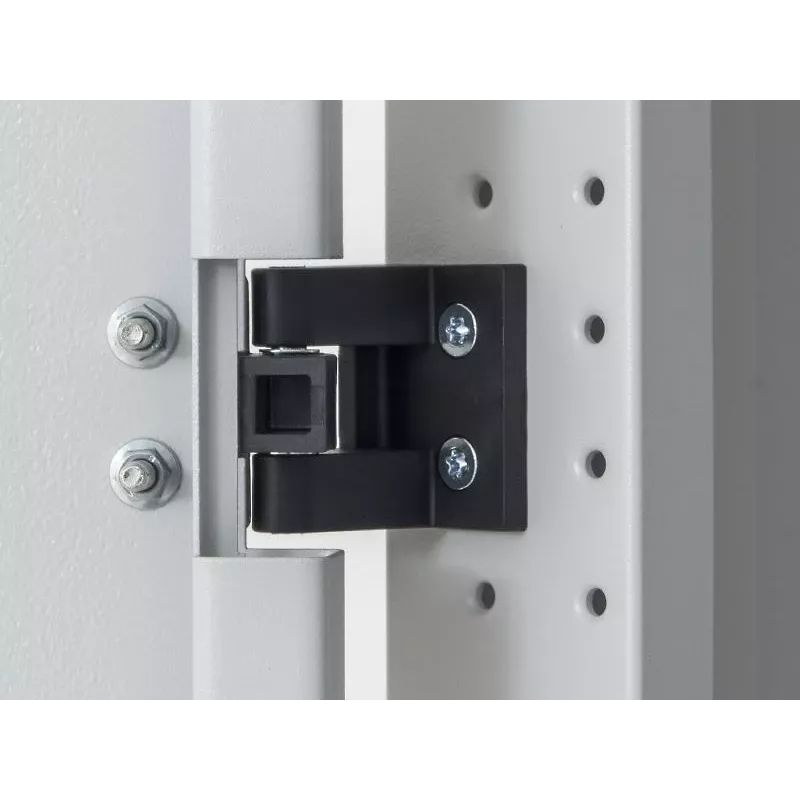

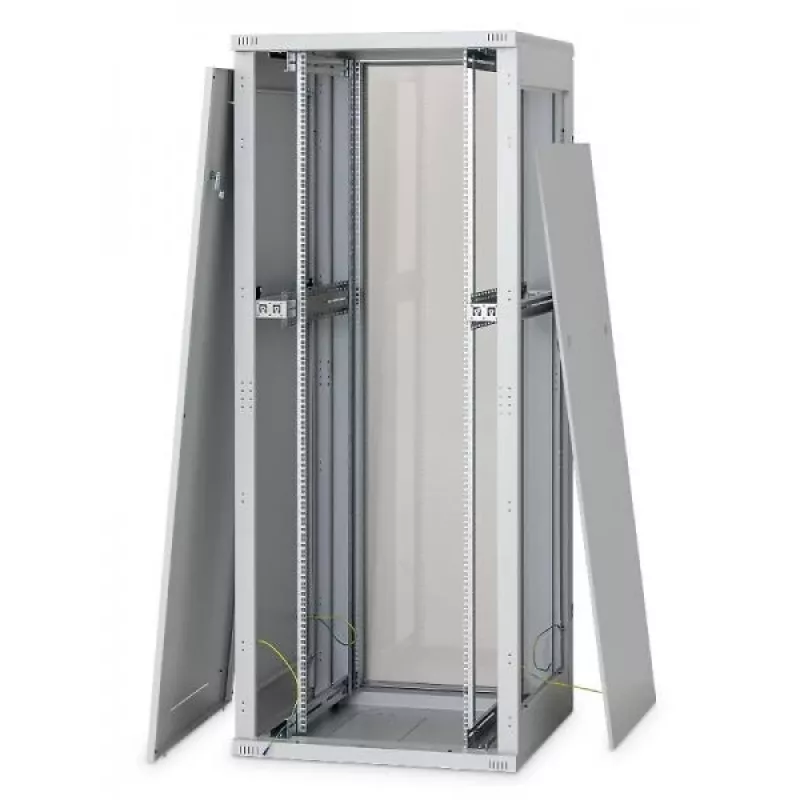

The cabinet has a rigid welded construction with 1.3 mm skeleton rails for improved strength and a perforated frame to allow cooling airflow. Doors can open nearly 180° and are removable or reversible to change opening direction; double wing doors use hook-on hinges. Vertical 19" rails are freely adjustable in depth, and a central pair of rails is supplied for enclosures deeper than 800 mm. Breakout-type blanking panels provide multiple cable entry points, including large openings for fan units and top/bottom rear entries. Standard bonding of detachable parts and compatibility with levelling feet, castors or a base make the cabinet adaptable to different installation environments.

Suitable for

• Server and network equipment racks in office and telecom rooms
• Structured cabling and patch panel installations
• Environments requiring active cooling or fan unit mounting
• Deployments where adjustable rack depth and cable management are needed

Key specifications

• Model: Triton RMA-22-A61-CAX-N1
• Rack capacity: 22U
• Maximum load: 800 kg
• Dimensions (W×D×H): 600 × 1000 × 1080 mm
• Weight: 58.9 kg
• IP rating: IP20 (indoor use)
• Colour: Grey
• Vertical rails: adjustable 19" (flex frame support for 800 mm wide models)

How to use

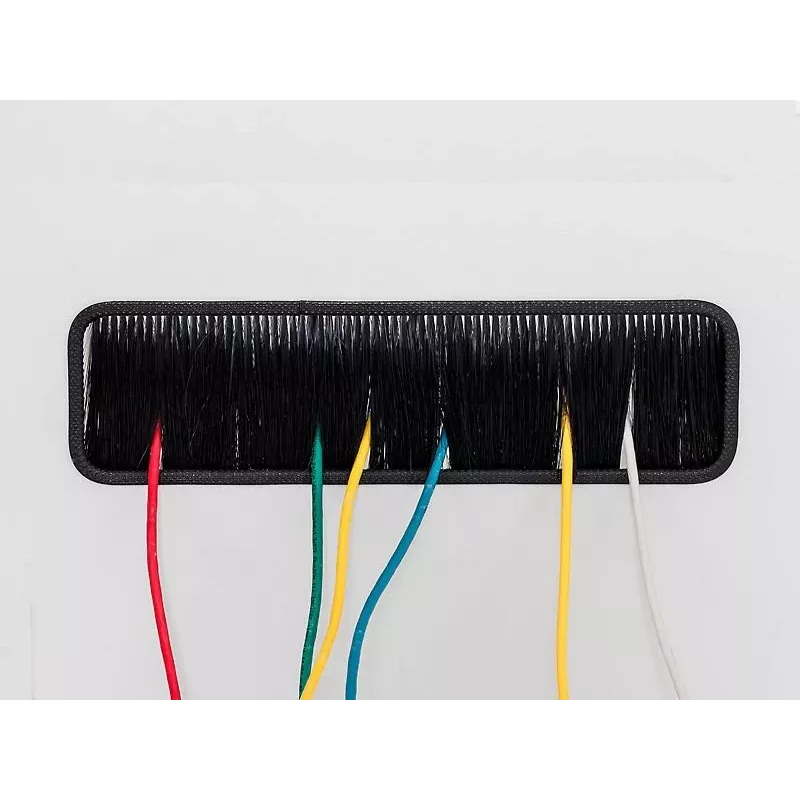

Install the cabinet on its levelling feet or fitted castors/base according to the chosen configuration. Adjust the 19" vertical rails to the required depth for your devices and secure equipment with standard rack screws. Use the breakout blanking panels and brush strips to route and seal cable entries through the openings in the base, ceiling and rear cover. If active cooling is required, fit compatible Triton fan units into the dedicated fan opening or order the special metal door prepared for RAx-CH-X0x-X3 fan units. Removable doors and side panels provide full access for installation and maintenance.

Recommendations

For racks expected to carry loads over 500 kg, install the horizontal cable management reinforcement in the skeleton. For enclosures deeper than 800 mm, make use of the central vertical rails and consider a swing frame (available for 800 mm wide cabinets) when you need easier front access to heavier equipment.
