Rack da parete Digitus DN-19 12-U-3-SW

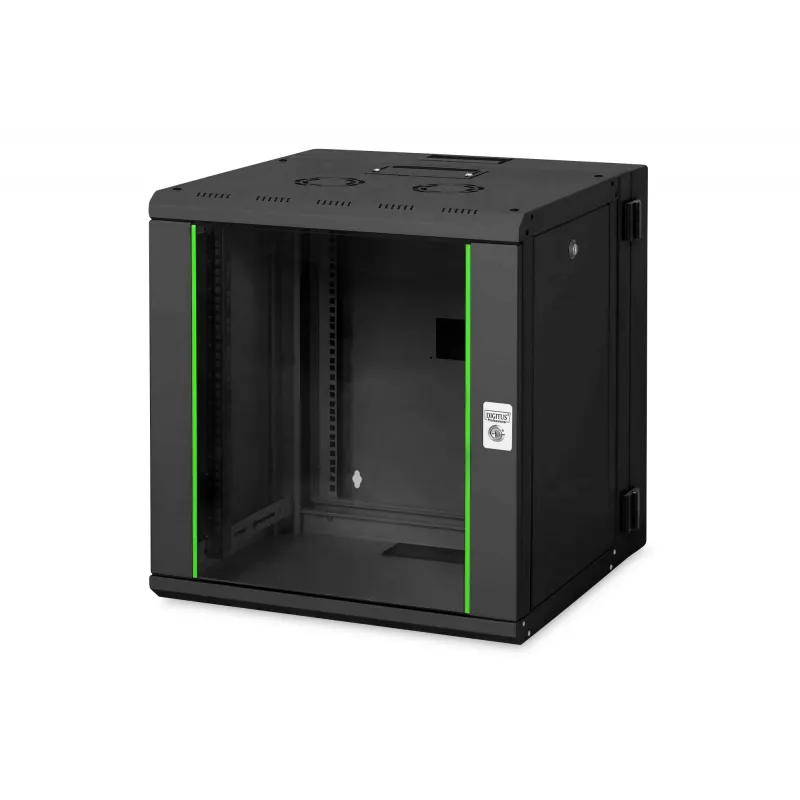

Wall-mounted network cabinet with a load capacity of 60 kg and a lockable safety-glass front door, engineered for secure and flexible IT infrastructure installations. The DIGITUS Unique Series DN-19 12-U-3-SW features a foldable back frame with integrated hinge, enabling effortless rear access during maintenance, while its two-step wall-mounting system simplifies deployment.

Advantages

The cabinet's robust steel construction (up to 1.5 mm sheet steel) and lockable removable side panels ensure equipment protection and easy access. It includes a sliding cable inlet with foam seal in the roof, pre-cut cable inlets with plastic covers in the back wall and floor, and brush cable management panels on the top and bottom of the back frame. The roof has a pre-cut area for an optional fan module. Adjustable, galvanized 19" profile rails with readable rack unit markings and a perforated back frame provide flexible mounting options. With optional leveling feet or casters, it can be converted to a freestanding cabinet.

Suitable for

• Small to medium business server rooms
• Network closets and branch offices
• Industrial environments requiring secure wall-mounted enclosures
• IT installations needing rear access without full disassembly

Key specifications

• Rack capacity: 12U
• External dimensions (W x D x H): 600 x 450 x 635 mm
• Load capacity: 60 kg
• Color: Black (RAL 9005)
• Material: Steel sheet
• Front door: Lockable safety-glass with steel frame
• Side panels: Removable and lockable
• Protection class: IP20
• Cable entry: Top and bottom with brush strip
• Ventilation: Prepared for fan unit (top)
• Mounting rails: 2 pairs (front and rear, depth adjustable)
• Assembly status: Pre-assembled

Recommendations

For optimal airflow and thermal management, consider installing a compatible fan module in the pre-cut roof area. Use the adjustable rails to accommodate various equipment depths, and utilize the brush cable management panels to maintain a tidy and organized installation.
