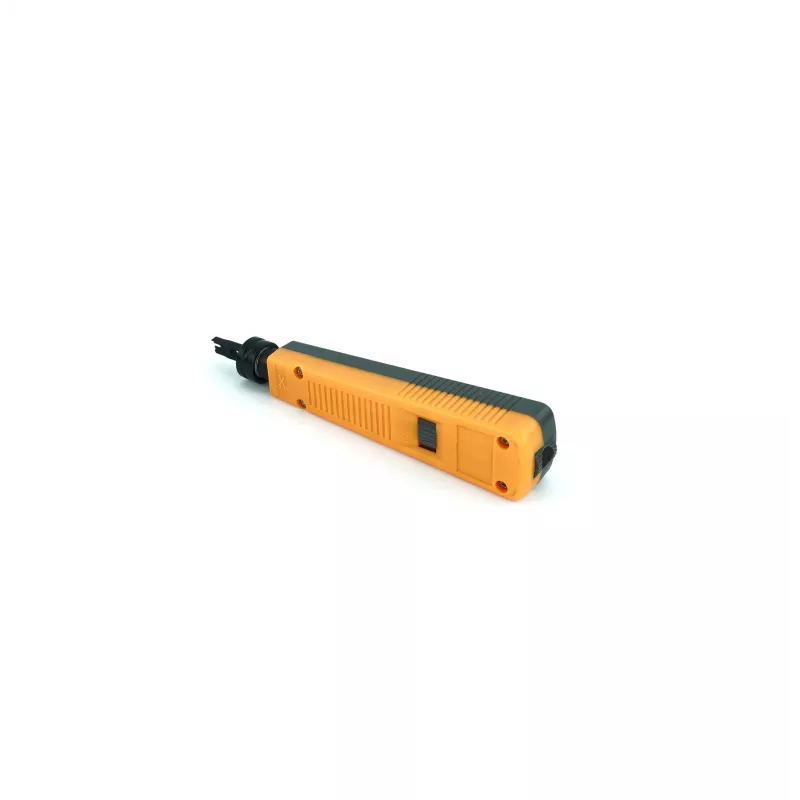

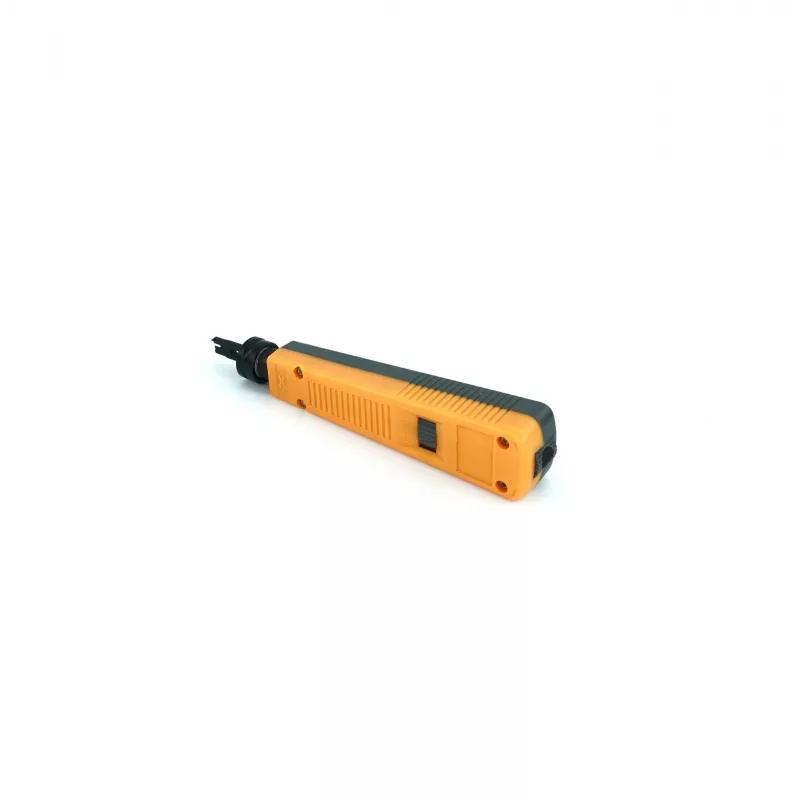

RACKTEL RL-OBC Krone Impact Punch Down Tool

The RACKTEL RL-OBC Krone Impact Punch Down Tool is a professional-grade tool designed for terminating and cutting wires on Krone IDC (Insulation Displacement Connector) blocks. Ideal for network installers and telecommunications technicians, this tool ensures reliable connections in patch panels, wall jacks, and distribution frames.

Advantages

Features a reversible Krone blade with integrated cut/non-cut mechanism, adjustable spring-loaded impact (high/low), and an ergonomic grip for comfortable use. The hardened steel blade and high-impact ABS housing ensure durability in demanding environments.

Suitable for

• Terminating Cat3, Cat5e, Cat6, Cat6a cables
• Network outlets, patch panels, and distribution frames
• Professional telecommunications and network installation

Key specifications

• Tool Type: Impact Punch Down Tool
• Compatible Connector: Krone IDC
• Blade: Reversible Krone, hardened steel
• Impact: Spring-loaded, adjustable (high/low)
• Wire Gauge: 22-26 AWG solid wire
• Handle Material: High-impact ABS plastic
• Additional Tools: Integrated wire hook and spudger
• Colour: Grey/Blue

Recommendations

For best results, use with solid copper wire and replace the blade when worn. This tool is a must-have for any structured cabling toolkit.
