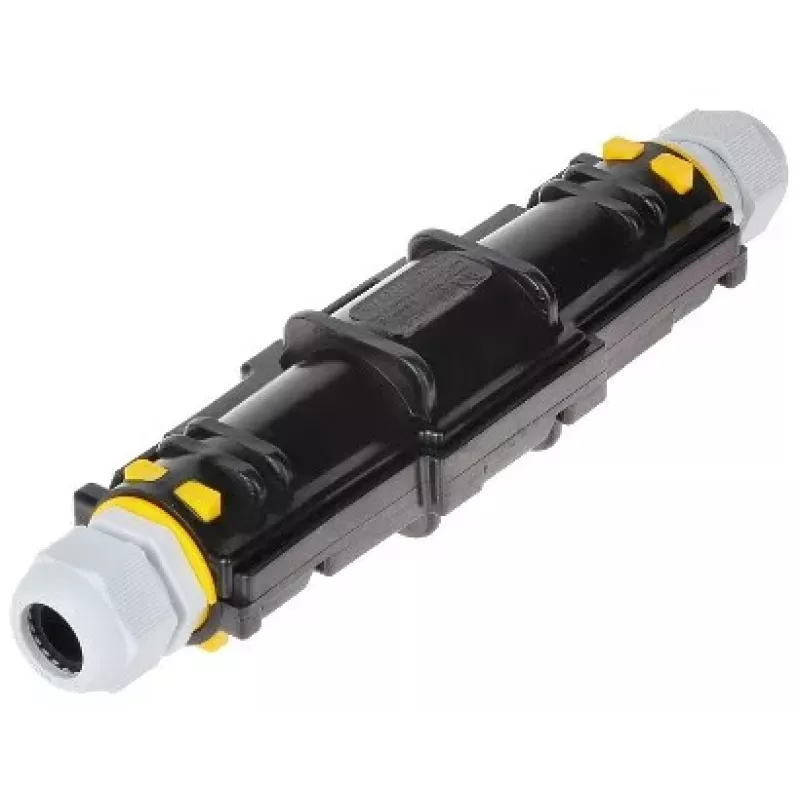

RAYTECH RAPID-JOINT-L10-IP68 GelBox giunto in linea IP68

The RAYTECH RAPID-JOINT-L10-IP68 is a high-performance gel-filled inline joint designed for reliable and waterproof connections of low-voltage cables. Suitable for underground, submerged, outdoor, and indoor applications, this joint ensures a secure and re-enterable seal with IP68 protection.

Advantages

Quick and easy installation without special tools; re-enterable silicone gel allows for future modifications; halogen-free and UV-resistant housing ensures long-term durability; flame retardant for added safety; suitable for a wide range of conductor sizes and configurations.

Suitable for

• Underground cable joints
• Outdoor lighting and power distribution
• Submersible pump connections
• Industrial and residential wiring

Key specifications

• IP Rating: IP68
• Joint Type: Inline (Straight-through)
• Max Conductor Cross-Section (Rigid): 6 mm²
• Max Conductor Cross-Section (Flexible): 4 mm²
• Cable Diameter Range: 6.0 - 10.0 mm
• Voltage Rating: Up to 1 kV (1000V)
• Number of Conductors: 2, 3, 4, or 5
• Gel Type: Non-toxic, re-enterable silicone gel
• Housing Material: Halogen-free, UV-resistant thermoplastic
• Operating Temperature Range: -20°C to +90°C
• Halogen-Free: Yes
• UV Resistance: Yes
• Flame Retardant: Yes
• Dielectric Strength: >20 kV/mm
• Insulation Resistance: >10^15 Ω
• Certifications: CE, EN 50393

Recommendations

For optimal performance, ensure cable diameters are within the specified range and follow installation instructions. Suitable for both indoor and outdoor use, including direct burial and submerged environments.
