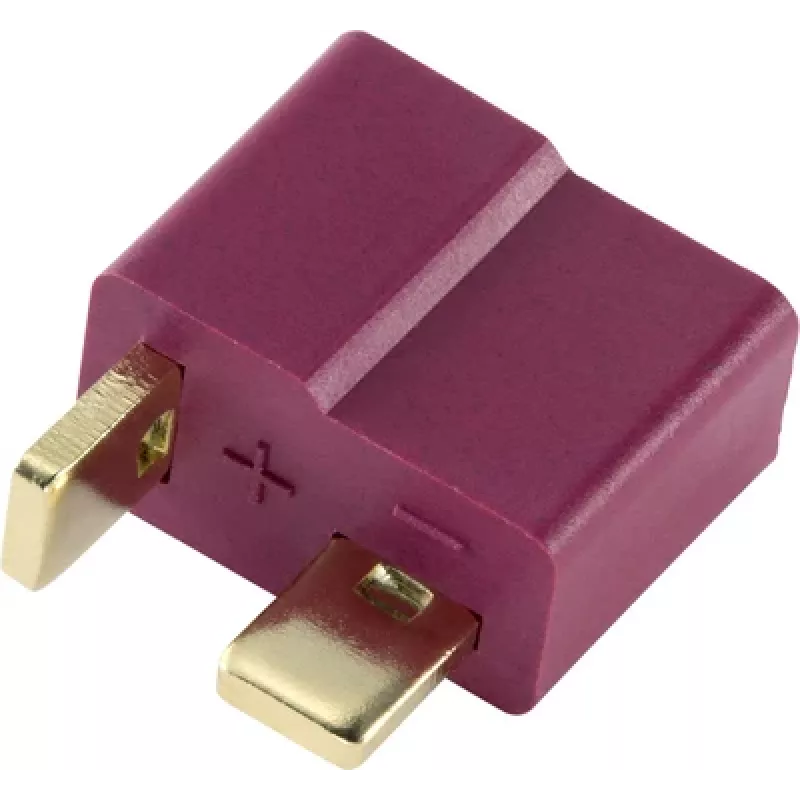

Reely connettore femmina T-Plug dorato 20 pz.

RC hobbyists often struggle with unreliable battery connections that cause power loss or intermittent contact. The Reely T-Plug socket connector solves this by providing a high-current, low-resistance connection for your LiPo batteries, ESCs, and chargers. This pack of 20 female T-Plug (Deans-style) connectors features gold-plated brass contacts for superior conductivity and corrosion resistance.

Who is it for

Designed for RC model builders and pilots who need to create custom battery or ESC leads. Ideal for soldering onto silicone wire up to 12 AWG, these connectors handle continuous currents up to 40 A and peaks of 70 A, making them suitable for high-performance electric models.

Main features

• Gold-plated brass contacts ensure minimal contact resistance and long-term reliability.
• High-temperature nylon housing withstands soldering heat and harsh conditions.
• Rated for 24 V DC and currents up to 40 A continuous, 70 A peak.
• Compatible with standard T-Plug (Deans) male connectors.

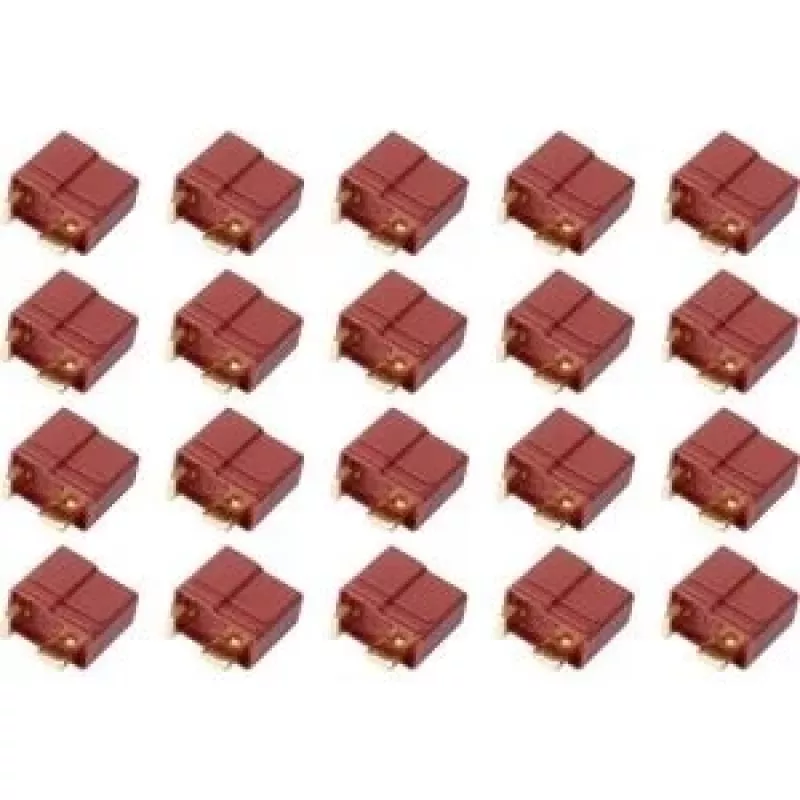

• Pack of 20 connectors for multiple projects or replacements.

Specifications

• Connector type: T-Plug (Deans), female socket
• Contact material: Gold-plated brass
• Housing material: High-temperature nylon
• Housing colour: Red
• Max continuous current: 40 A
• Max peak current: 70 A
• Rated voltage: 24 V DC
• Recommended wire gauge: up to 12 AWG
• Connection method: Solder
• Contact resistance: < 0.5 mΩ
• Insulation resistance: > 500 MΩ
• Operating temperature range: -20 to +120 °C
• Quantity per pack: 20

Tips

Use a soldering iron with sufficient power and pre-tin both the connector cup and wire for a clean joint. Ensure the connector is fully seated before applying heat to avoid melting the nylon housing. Always verify polarity before connecting to a battery.
