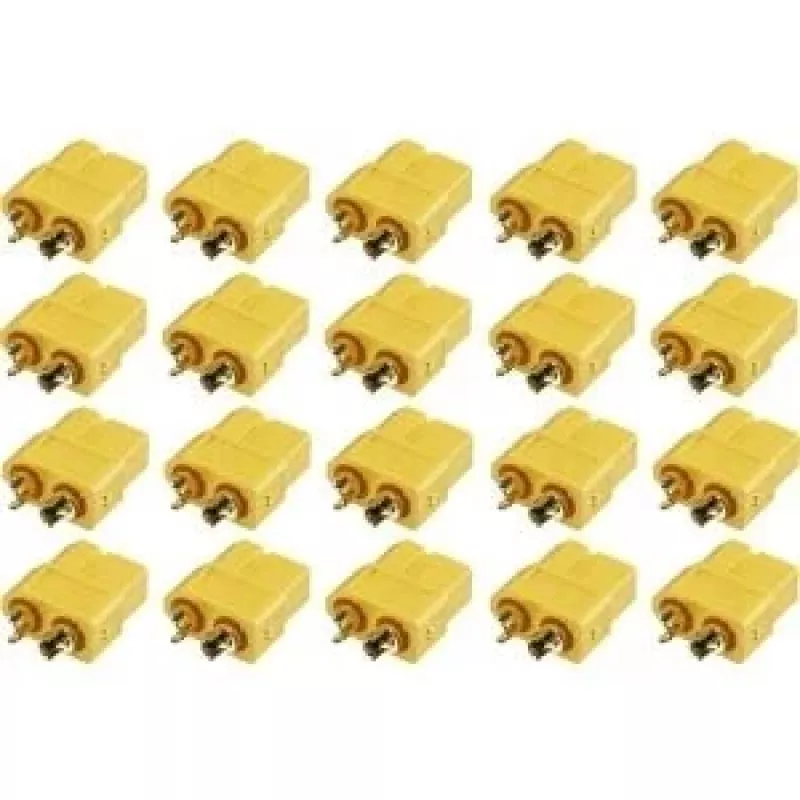

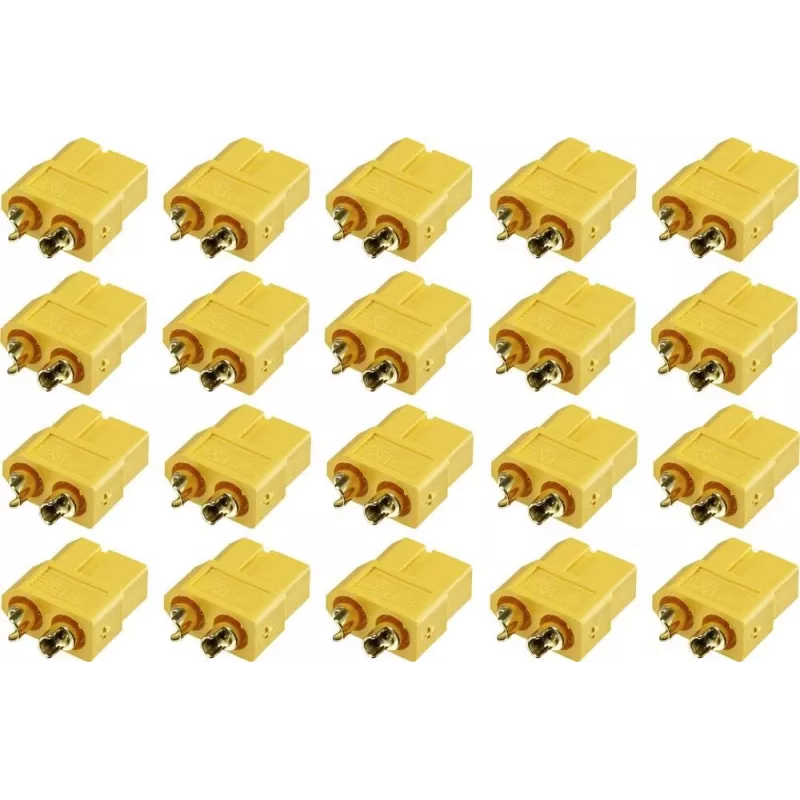

Reely connettore femmina XT60 dorato confezione da 20

Gold-plated XT60 female connectors rated for 60 A continuous current, supplied in a pack of 20.

Overview

These XT60 female connectors are built for high-current RC applications. The gold-plated copper alloy contacts ensure low resistance and reliable power transfer, while the high-temperature nylon housing withstands demanding conditions.

What stands out

• 60 A continuous current rating, 90 A peak
• Gold-plated contacts for corrosion resistance and low contact resistance (<0.5 mΩ)
• High-temperature PA66 nylon housing rated from -20 to 120 °C
• Solder cup design for 12 AWG wire
• Pack of 20 connectors

Technical details

• Connector type: XT60 female (socket)
• Maximum continuous current: 60 A
• Maximum peak current: 90 A
• Maximum voltage: 500 V DC
• Contact material: Copper alloy, gold-plated
• Housing material: High-temperature nylon (PA66)
• Temperature range: -20 to 120 °C
• Recommended wire gauge: 12 AWG
• Contact resistance: <0.5 mΩ
• Insulation resistance: >2000 MΩ
• Colour: Yellow
• Quantity per pack: 20

Our verdict

A dependable choice for high-current battery connections in RC models, with gold plating and robust construction.
