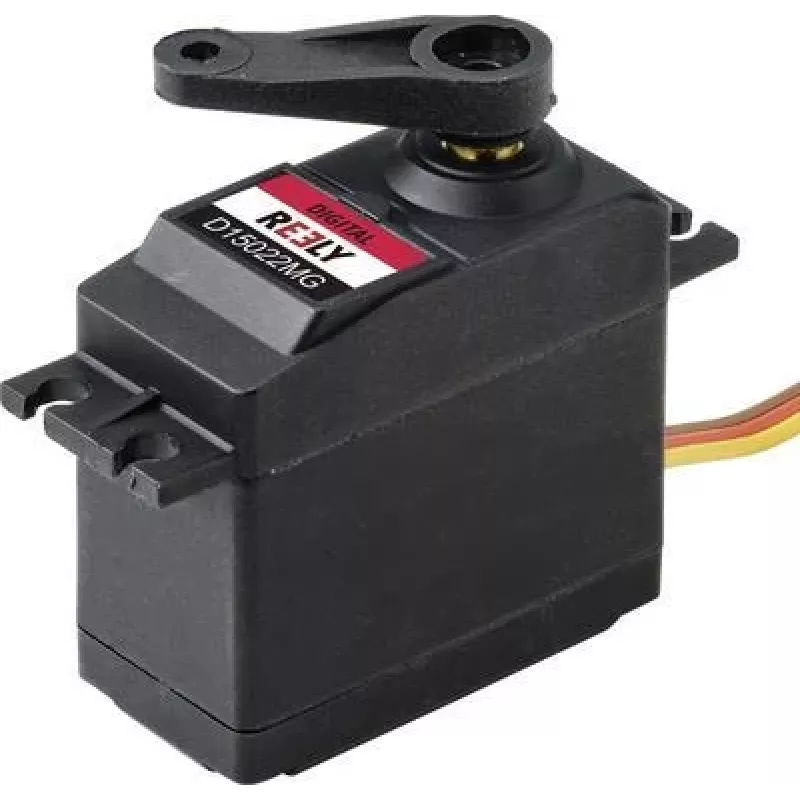

Reely D15022MG servo digitale con ingranaggi in metallo, connettore JR, 15 kg/cm a 6 V RE-7165944

The Reely D15022MG stands out among standard-size servos with its all-metal gear train, which delivers higher torque and longer wear life than plastic-gear alternatives. This digital servo is built for RC models that demand precise, repeatable positioning under load.

Highlights

• Metal gears for durability and high torque transmission
• Digital control with 3 µs dead band for sharp centering
• JR-style connector fits most modern receivers
• Dual ball bearings support the output shaft
• Torque up to 15 kg/cm at 6 V

In daily use

The D15022MG operates from 4.8 V to 6 V, making it compatible with standard receiver packs and BECs. Its 25T output spline accepts common Futaba-style servo horns. The brushed motor and plastic housing keep weight at a typical level for a standard servo, while the metal gears handle the stress of high-grip linkages and larger control surfaces.

Full specifications

• Servo type: Digital
• Gear material: Metal
• Operating voltage: 4.8 – 6 V
• Torque at 4.8 V: 13.5 kg/cm
• Torque at 6 V: 15 kg/cm
• Speed at 4.8 V: 0.18 sec/60°
• Speed at 6 V: 0.16 sec/60°
• Bearing: 2x ball bearing
• Motor: Brushed
• Connector system: JR
• Output shaft spline: 25T (Futaba compatible)
• Housing material: Plastic
• Pulse width range: 500–2500 µs (1520 µs center)
• Dead band width: 3 µs

Final note

A reliable metal-gear digital servo for RC cars, boats, and aircraft where precision and strength matter.
