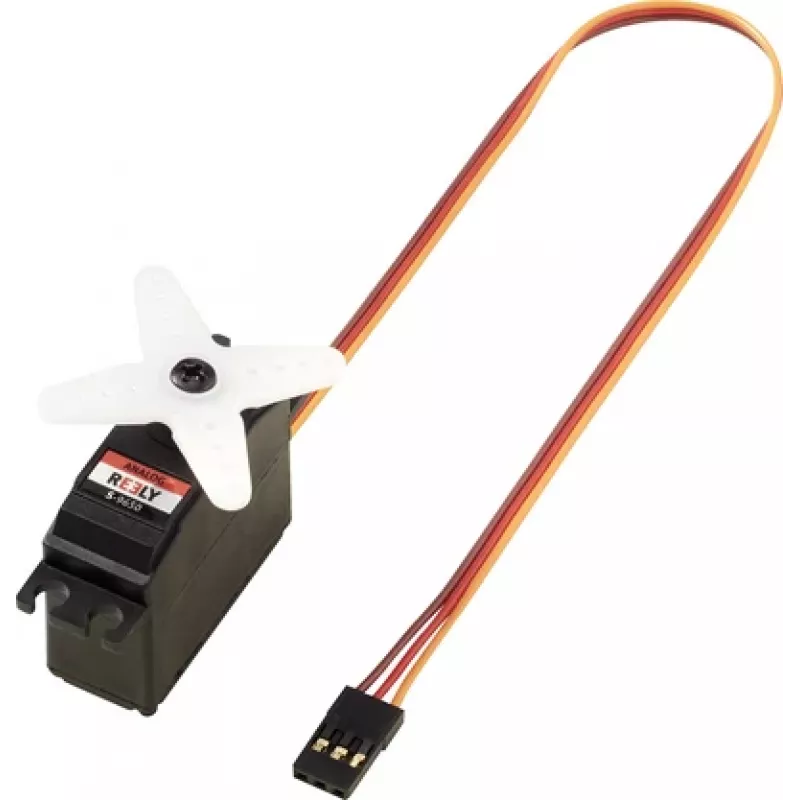

Reely servo analogico Midi ingranaggi in plastica connettore JR RE-2144550

The Reely Midi Analog Servo is a reliable mid-size actuator for RC models, delivering a strong 3.8 kg/cm torque at 6V. Its plastic gear train offers smooth operation and sufficient durability for standard applications.

Advantages

Analog control with a 50 Hz PWM signal ensures broad compatibility with RC receivers. The JR connector fits most hobby-grade systems. A bushing bearing reduces friction for consistent performance.

Suitable for

• RC aircraft
• RC cars
• RC boats
• Robotics projects

Key specifications

• Servo type: Analog
• Size class: Midi
• Gear material: Plastic
• Connector: JR
• Operating voltage: 4.8 - 6 V DC
• Torque: 3.2 kg/cm at 4.8V, 3.8 kg/cm at 6V
• Speed: 0.18 sec/60° at 4.8V, 0.15 sec/60° at 6V
• Bearing type: Bushing
• Dead band width: 10 µs
• Pulse width range: 1000-2000 µs
• Frequency: 50 Hz

Recommendations

Choose this servo for standard RC models where analog precision and mid-range torque are sufficient. For high-stress applications, consider a metal-gear servo.
