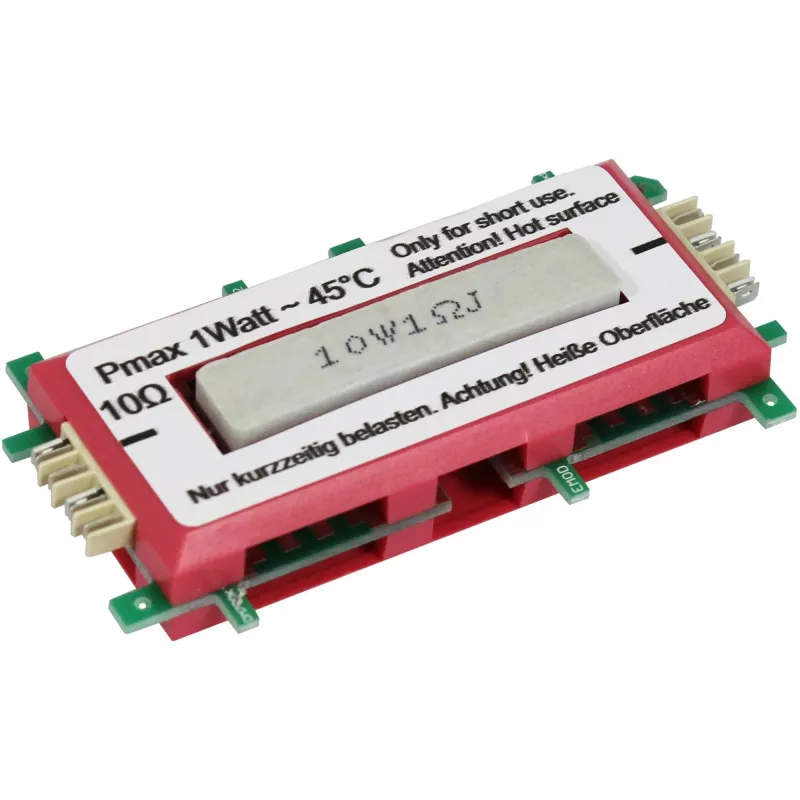

Resistenza ALLNET BrickRknowledge resistenza di potenza 10 W 10 Ω ALL-BRICK-0666

The ALLNET BrickRknowledge power resistor 10 W 10 Ω is a fixed, high-power resistor designed for applications that require a compact component capable of dissipating heat while maintaining stable resistance. This 10 W resistor provides a precise 10 ohm value for use as a load element, for current limiting, or for circuit testing and measurement tasks. Its form factor is suitable for installation where space is limited but reliable power dissipation is needed.

Advantages

This power resistor offers steady resistance under rated power and a compact footprint for high-power dissipation. It is engineered to handle continuous loads up to its 10 W rating while minimizing resistance drift due to temperature changes. The component's construction supports simple mounting and integration into a wide range of electronic circuits where a robust, fixed-value resistor is required.

Suitable for

• Load testing and dummy loads in power circuits
• Current limiting and surge absorption in electronic designs
• Bench measurement setups and calibration tasks
• Industrial control circuits and prototype development

Key specifications

• Power rating: 10 W
• Resistance: 10 Ω
• Type: fixed power resistor
• Typical application: heat-dissipating load element and current limiting
• Mounting: compact form factor suitable for direct board or chassis mounting (verify mounting method in design)

How to use

Install the resistor according to your circuit design, ensuring adequate ventilation and heat sinking where necessary to prevent overheating. Connect the resistor in series or parallel as required by the intended function—use in series for current limiting or in parallel/as a load for testing. Observe the 10 W continuous power rating and calculate expected dissipation based on applied voltage and current to avoid exceeding thermal limits. Allow for thermal expansion and secure mechanical fastening to prevent movement during operation.

Recommendations

Verify dissipated power in your actual operating conditions and provide sufficient cooling or heat sinking if the resistor approaches its rated power. Use appropriate insulating hardware and respect clearance to nearby components to prevent heat-related damage.
