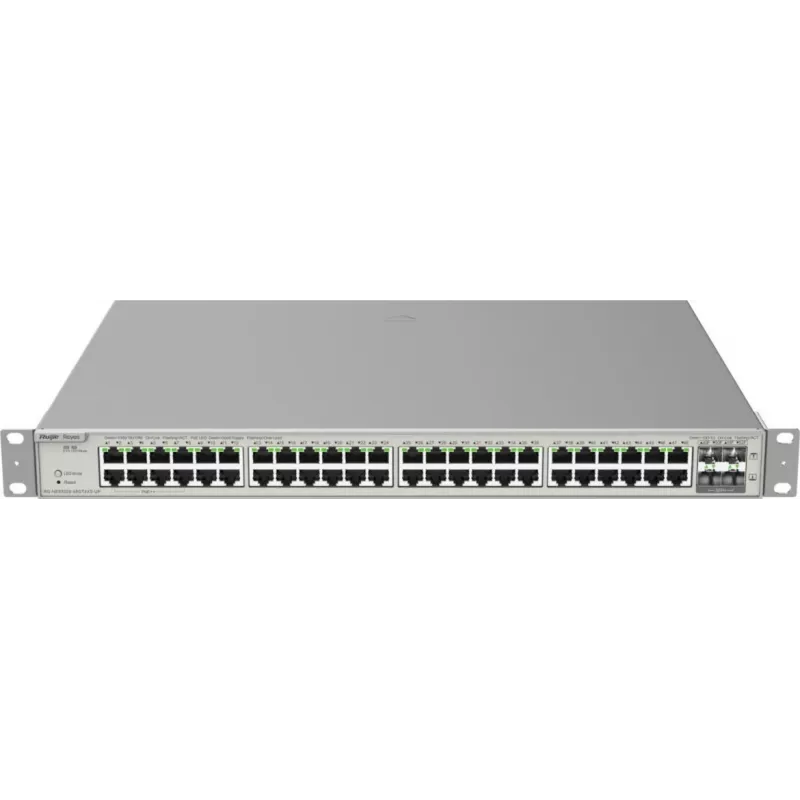

Reyee switch 48 porte Gigabit Layer 3 PoE, 48x Gbit, 4x SFP+, 740W (RG-NBS5200-48GT4XS-UP)

The Reyee RG-NBS5200-48GT4XS-UP is a high-performance managed Layer 3 PoE switch designed for enterprise networks requiring robust power and data delivery. With 48 Gigabit Ethernet ports and 4 10G SFP+ uplinks, it provides 740W PoE budget to power devices like IP cameras, VoIP phones, and wireless access points. Ideal for medium to large businesses, this switch offers advanced Layer 3 routing, comprehensive security features, and cloud management via Ruijie Cloud App.

Advantages

High PoE budget of 740W supports IEEE 802.3af/at, enabling flexible device deployment. Smart fan technology ensures quiet operation while maintaining optimal thermal performance. The switch supports static routing, RIP, OSPFv2, and VRRP for efficient network traffic management. With a switching capacity of 176 Gbps and forwarding rate of 130.94 Mpps, it delivers wire-speed performance.

Suitable for

• Enterprise networks requiring high-density PoE for IP cameras, VoIP, and Wi-Fi
• Medium to large businesses needing Layer 3 routing and VLAN segmentation
• Network administrators seeking cloud-managed or CLI-based configuration

Key specifications

• 48x 10/100/1000Base-T Gigabit Ethernet ports
• 4x 10 Gigabit SFP+ uplink ports
• PoE budget: 740W (IEEE 802.3af/at)
• Switching capacity: 176 Gbps
• Forwarding rate: 130.94 Mpps
• MAC address table: 16K
• VLAN support: 4094
• Jumbo frame: 9KB
• Layer 3 features: Static Routing, RIP, OSPFv2, VRRP
• Management: Web UI, CLI, SNMP, Ruijie Cloud App
• Internal power supply: AC 100-240V, 50/60Hz
• Rack mountable 1U
• Smart fan with adjustable speed
• Security: ACL, Port Security, DHCP Snooping, 802.1X

Recommendations

For optimal performance, use Category 6 or higher cabling for 10G uplinks. Ensure adequate ventilation in the rack to maintain operating temperature between 0°C and 50°C. The switch is suitable for environments with relative humidity up to 90% (non-condensing).
